Characteristic curves

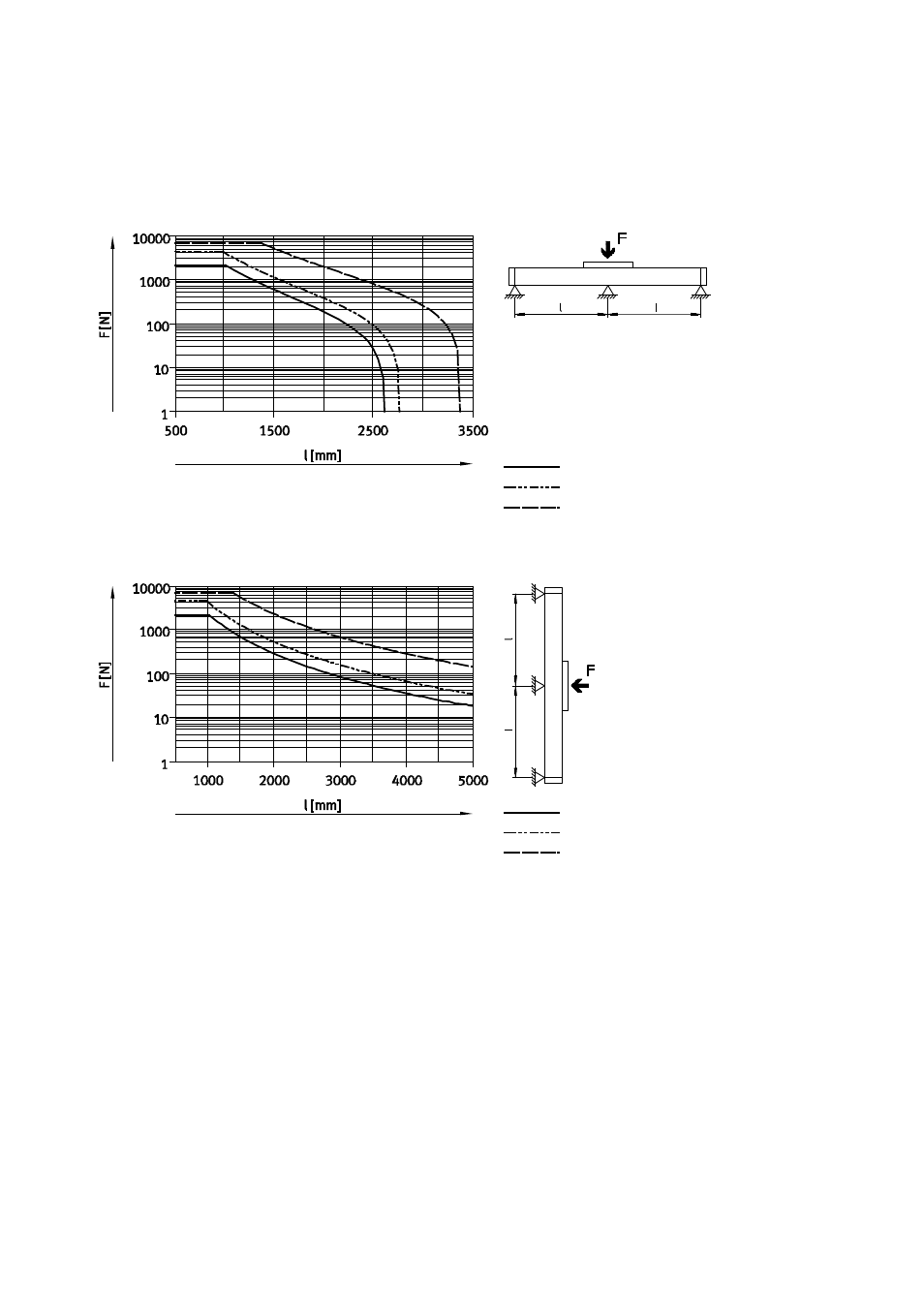

Maximum permissible support span l as a function of the force F

DGC-18-HD

DGC-25-HD

DGC-40-HD

DGC-18-HD

DGC-25-HD

DGC-40-HD

Fig. 15
