DGC-HD

18

Festo – DGC-HD – 1304NH English

1

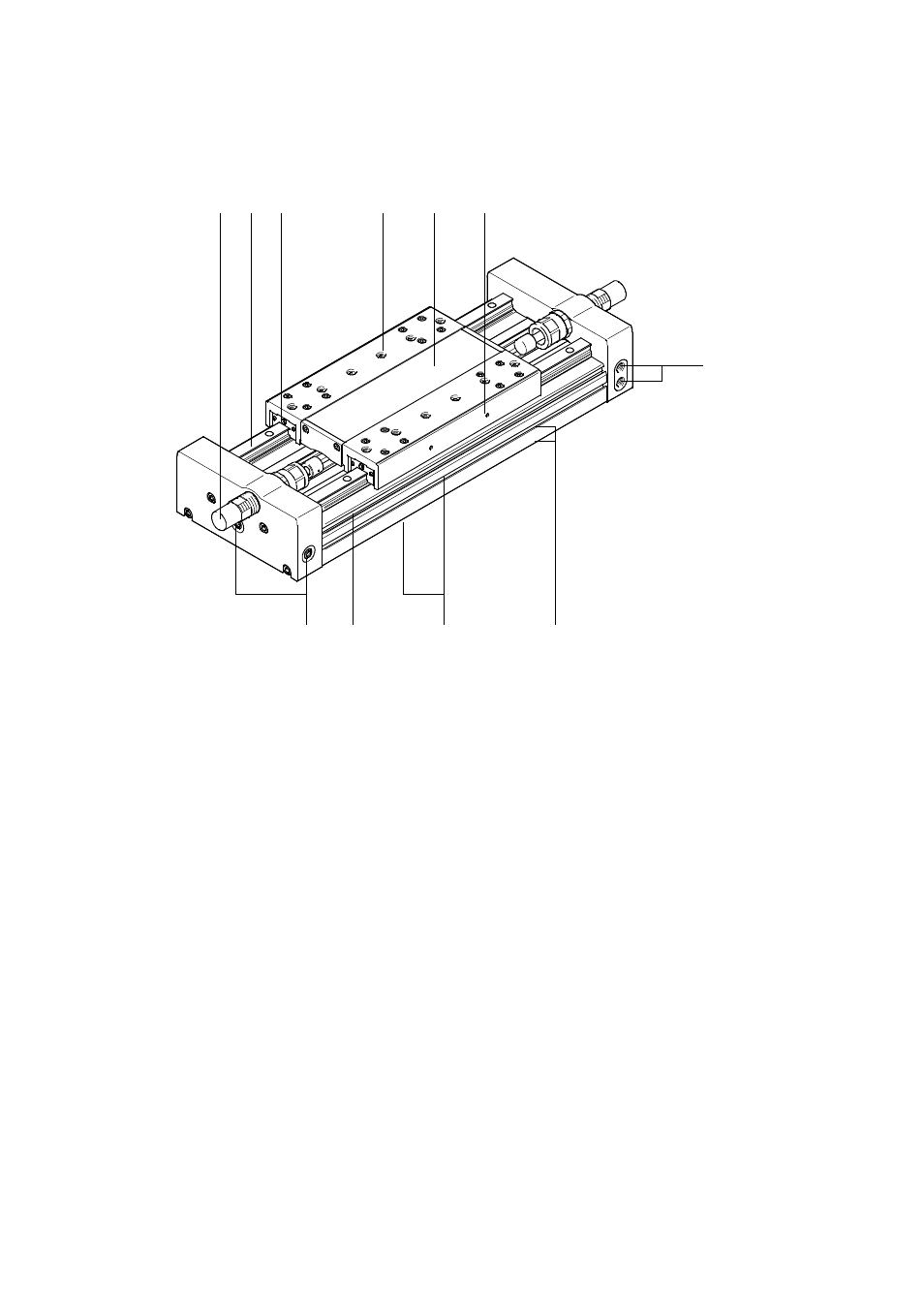

Control sections and connections

1

3

4

2

5

6

7

8

9

aJ

aA

1 Shock absorbers (2x)

2 Guide rail (2x)

3 Lubrication hole for bearing guide (4x)

4 Thread and centring hole for mounting the

effective load (12x)

5 Slide

6 Thread for optional switch lug (on both

sides, 2x)

7 Supply ports

8 Surface for profile mounting

9 Slot for slot nut mounting and accessories

(on both sides)

aJ Groove for proximity switch (on both sides)

aA Supply ports with plug screws

Fig. 1

2

Function and application

When the compressed air ports are pressurised alternately, the internal slide moves backwards and

forwards in the cylinder barrel. By means of a rigid connection, the slide

5 also moves. The slot in the

cylinder barrel required for this is covered by a band system. The slide is bearing mounted. The refer-

ence position of the slide can be detected using proximity sensors in the slots

aJ.
