DGC-HD

Festo – DGC-HD – 1304NH English

19

The linear drive DGC-...-HD is intended for positioning effective

loads with large loads. It is approved for the slide and yoke

operating modes (

observe load limits).

Pressureless movement of the slide is permitted only for fault cor-

rection and at low speed. If excessive speed is used, the resulting

low pressure can pull the sealing band into the piston chamber.

This leads to:

high leakage and

impermissible acceleration (e.g. with vertical mounting posi-

tion).

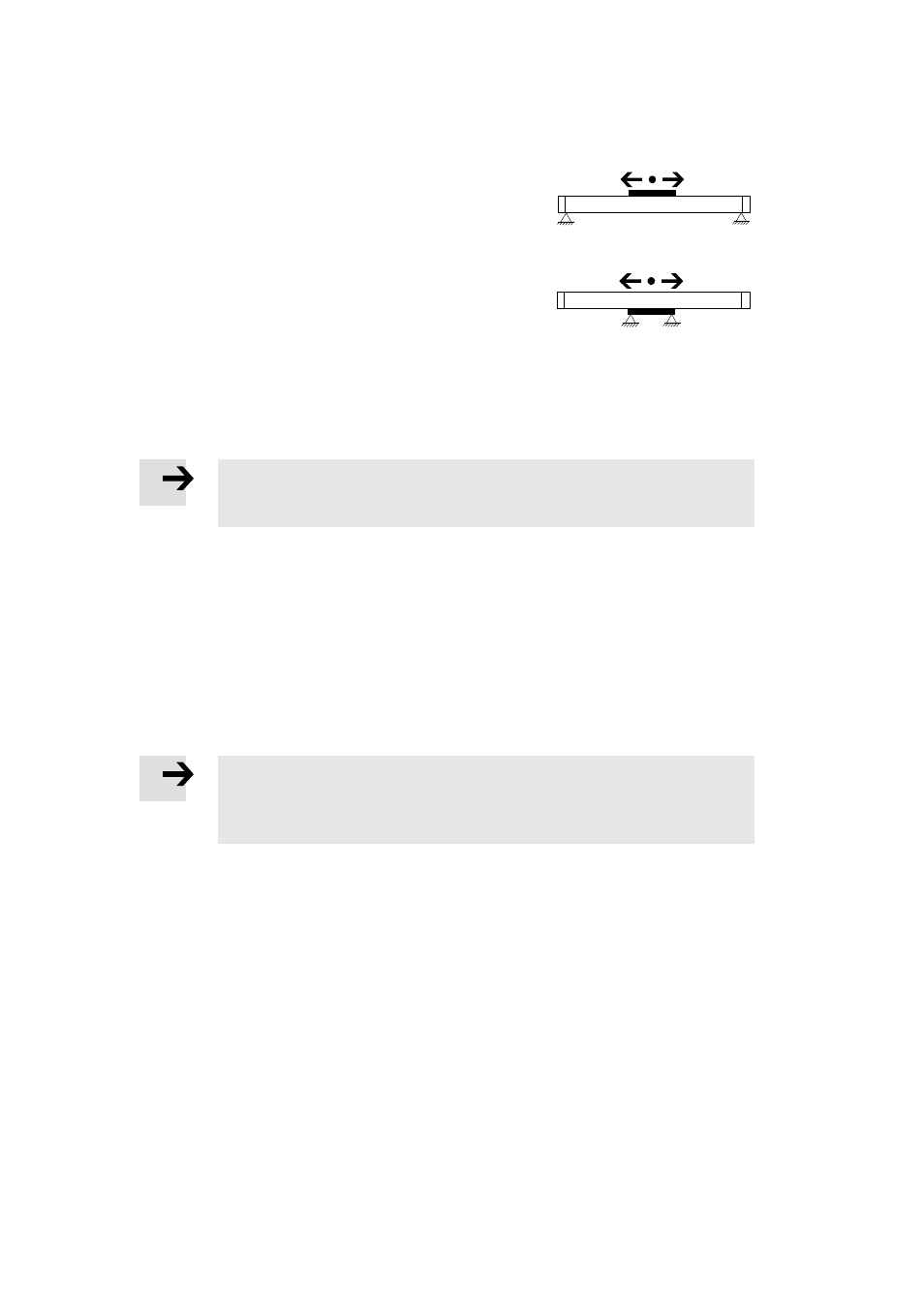

Fig. 2

Slide operation

Fig. 3

Yoke operation

3

Transport and storage

Note

Avoid touching the guide rail with your hands during transport und storage. Other-

wise the layer of grease will be damaged.

Take the product's weight into account. Depending on the version, the DGC-HD can weigh up to

100 kg.

For transport, the conveyors must be positioned at the permissible support spacing

(support spacing

12 characteristic curves).

Make sure storage conditions are as follows:

short storage times

cool, dry, well-shaded, corrosion-resistant locations.

4

Requirements for product use

Note

Malfunctions will occur if the device is not used correctly.

Make sure that the specifications contained in this chapter are adhered to at all

times.

Take into consideration the legal regulations applicable for the destination, as well as:

regulations and standards

regulations of testing organisations and insurers

national specifications.

Note the warnings and instructions on the product and in the relevant operating instructions.

Remove all transport packaging, such as foils, caps and cardboard.

The packaging is intended for recycling

(exception: oil paper = residual waste).
