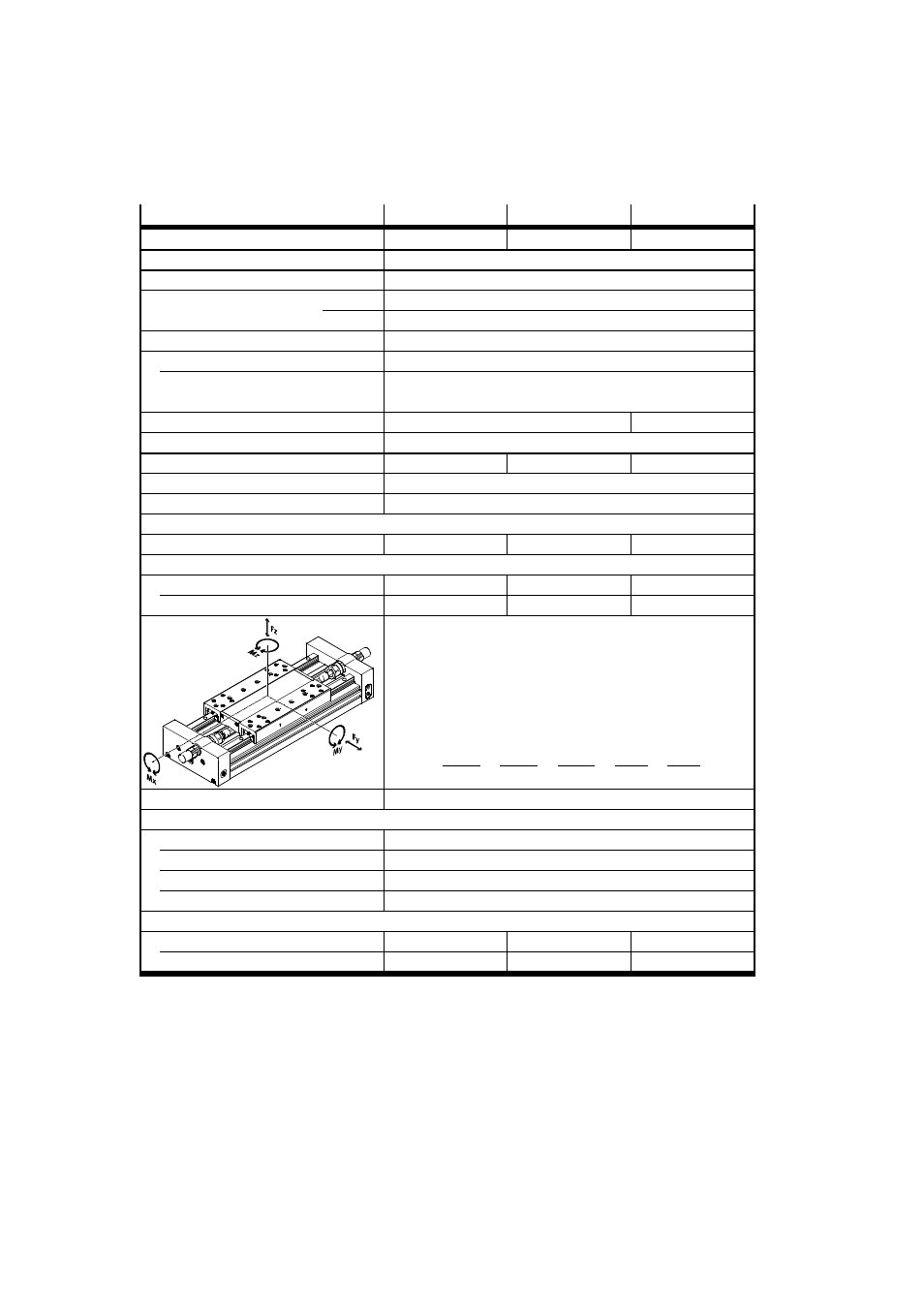

background image

DGC-HD

Festo – DGC-HD – 1304NH English

29

11

Technical data

Size

1)

18

25

40

Pneumatic connection

M5

G1/8

G1/4

Design

Pneumatic linear drive with heavy-duty guide

Guide

Recirculating ball bearing guide

Cushioning

YSR

Shock absorber, hard characteristic curve

YSRW

Shock absorber, soft characteristic curve

Mounting position

Any

Operating medium

Compressed air to ISO 8573-1:2010 [7:–:–]

Note on the operating medium

Operation with lubricated medium possible (required during

subsequent operation)

Operating pressure

[bar]

2.5 … 8

1.5 … 8

Ambient temperature

[°C]

–10 … +60

Theoretical force at 6 bar

[N]

153

295

754

Max. speed

[m/s]

3

Max. impact energy

(

www.festo.com/catalogue)

Permissible force on the slide

Fy

max

= Fz

max

[N]

3650

5600

13000

Permissible torques on the slide

Mx

max

[Nm]

140

300

900

My

max

= Mz

max

[Nm]

275

500

1450

Condition for combined loads:

f

v

=

|Mx|

Mx

max

+

|My|

My

max

+

|Mz|

Mz

max

+

|Fy|

Fy

max

+

|Fz|

Fz

max

≤ 1

Note on materials

Contains paint-wetting impairment substances (PWIS)

Materials

Profile, cover, slide

Aluminium

Ball bearing, guide, screws

Steel

Wiper seal

POM

Seals

NBR, TPE-U

Weight

0-stroke

[kg]

3.987

7.509

20.469

per 10 mm stroke

[kg]

0.071

0.105

0.199

1)

The following tool is available for sizing: sizing software “DGC-QuickCalc” (

www.festo.com/sp)

Tab. 9
