DGC-HD

Festo – DGC-HD – 1304NH English

23

5.1.3

Installation of accessories

If proximity sensors are used:

Use:

inductive proximity sensors with switch lug

aB ( Assembly instructions of the accessory used)

in the slot

aJ or with mounting bracket aC

magnetic proximity sensors in the slot

aJ.

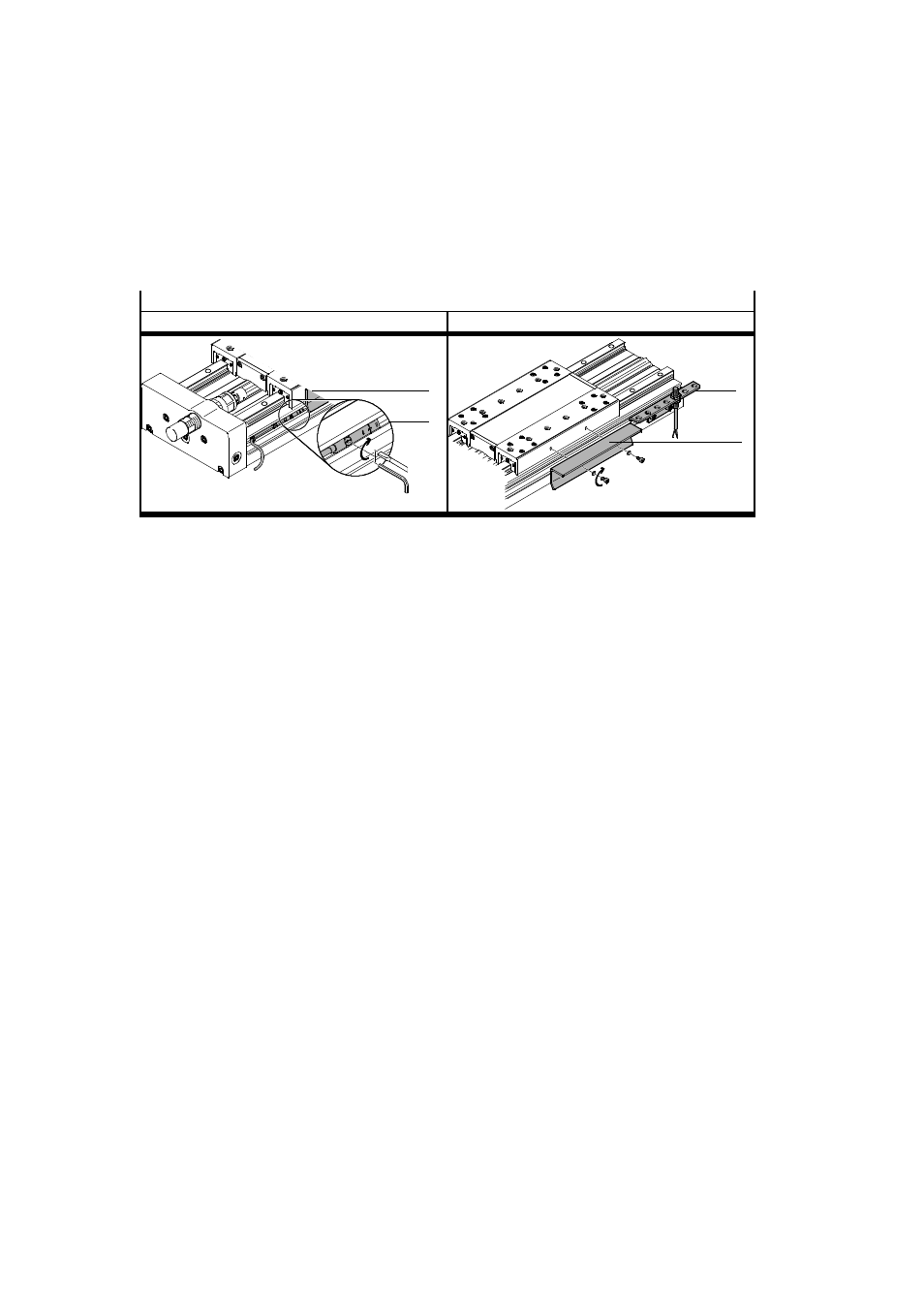

Mounting

in the grooves

aJ ( Fig. 1)

with mounting bracket

aC

aJ

aB

aC

aB

Tab. 4

To protect the end positions:

Use emergency buffer or shock absorber (

Assembly instructions of the accessory used).

To avoid contamination:

Use slot covers in all unused grooves.
