Ion Operations Manual

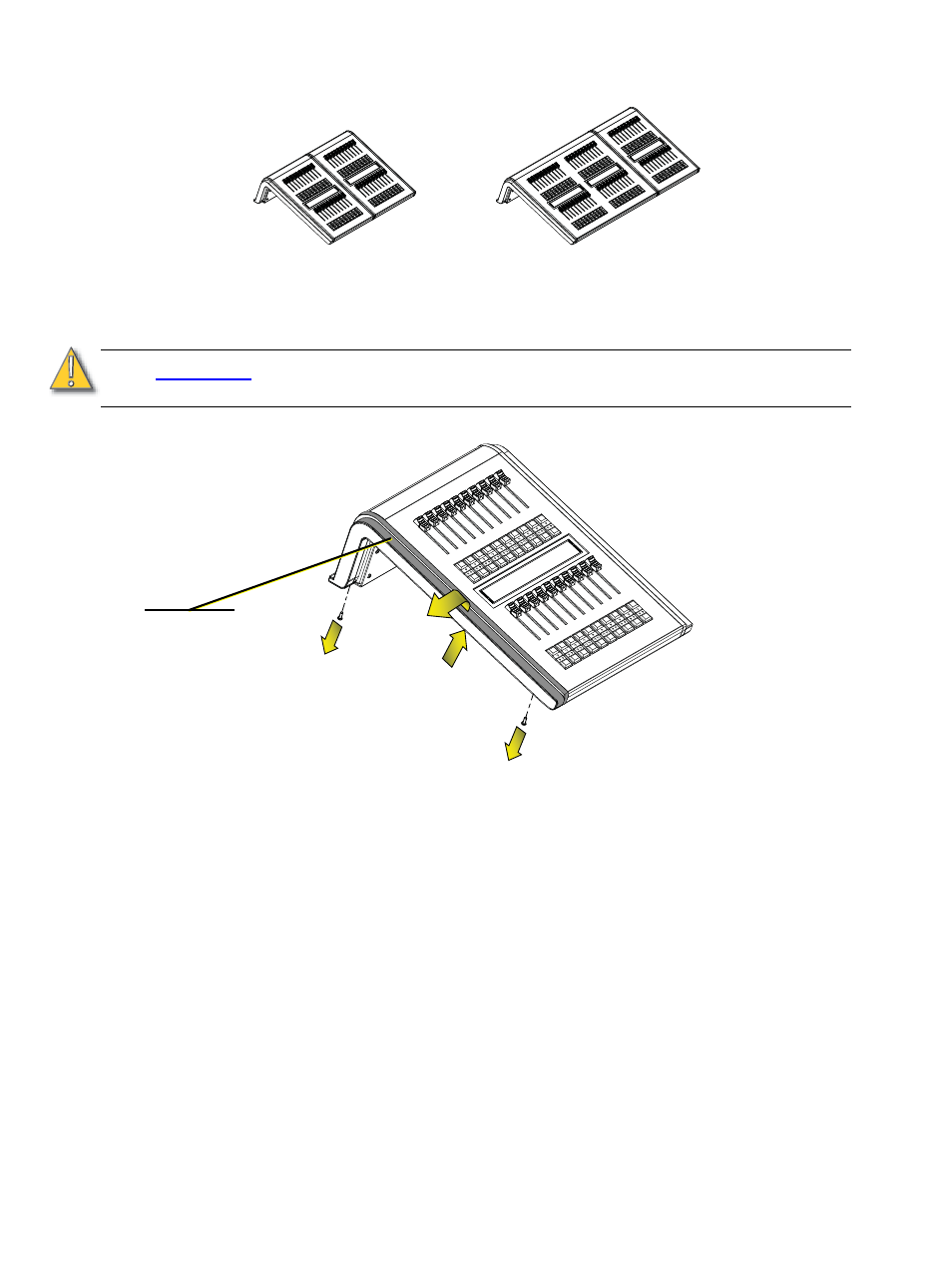

Attach Universal Fader Wings

Step 1:

Using a #1 Phillips head screwdriver, on the underside of the wing(s) remove the two

screws securing the bumpers that will be removed from the appropriate side or sides

of the wings. The bumpers will be removed in a later step.
a:

Carefully turn the wing over and place it faders-down on a clear, flat work
surface.

Remove and save the two screws securing the bumper to the side of the wing.

Step 2:

Turn the wing over to return it to its upright position.

Step 3:

Remove the bumper(s) from the wing.
a:

Right Side - Gently pull the bumper up until it is flush with the facepanel.
Left Side -Gently push the bumper down until it loosens from the facepanel.

Pull the bumper away from the facepanel until it is free from the wing.

Step 4:

Repeat steps 2 and 3 for each side of each wing that needs to be exposed.

Step 5:

Align the two wings. Lift the wing on the right and place it gently on the hooks provided
on the wing on the left. Check that the two wings are aligned properly front and back,

C A U T I O N :

Do not set the wing on the connector side (rear panel). Instead, place it face down

on the faders.

Bumpers on

either side
