A
Eos Configuration Utility 351
Buttons
RPU Face Panel Buttons
This area is for configuring the buttons on the front of a RPU or RVI. Clicking on a button will open
a dialog window for selecting what type of button, macro, hardkey, or none, you wish to assign.
If hardkey is selected, a list of the various hardkeys on your desk will be available to select from. If
macro is selected, a list of available macros will display. Selecting none will assign no action to the
selected button.
{Import} allows you to import a RPU/RVI button configuration file. {Export} allows you to export a
RPU/RVI button configuration file. {Restore Defaults} will restore the factory defaults for the RPU/
RVI buttons.
For more information, See “Software Configuration” on page 370.

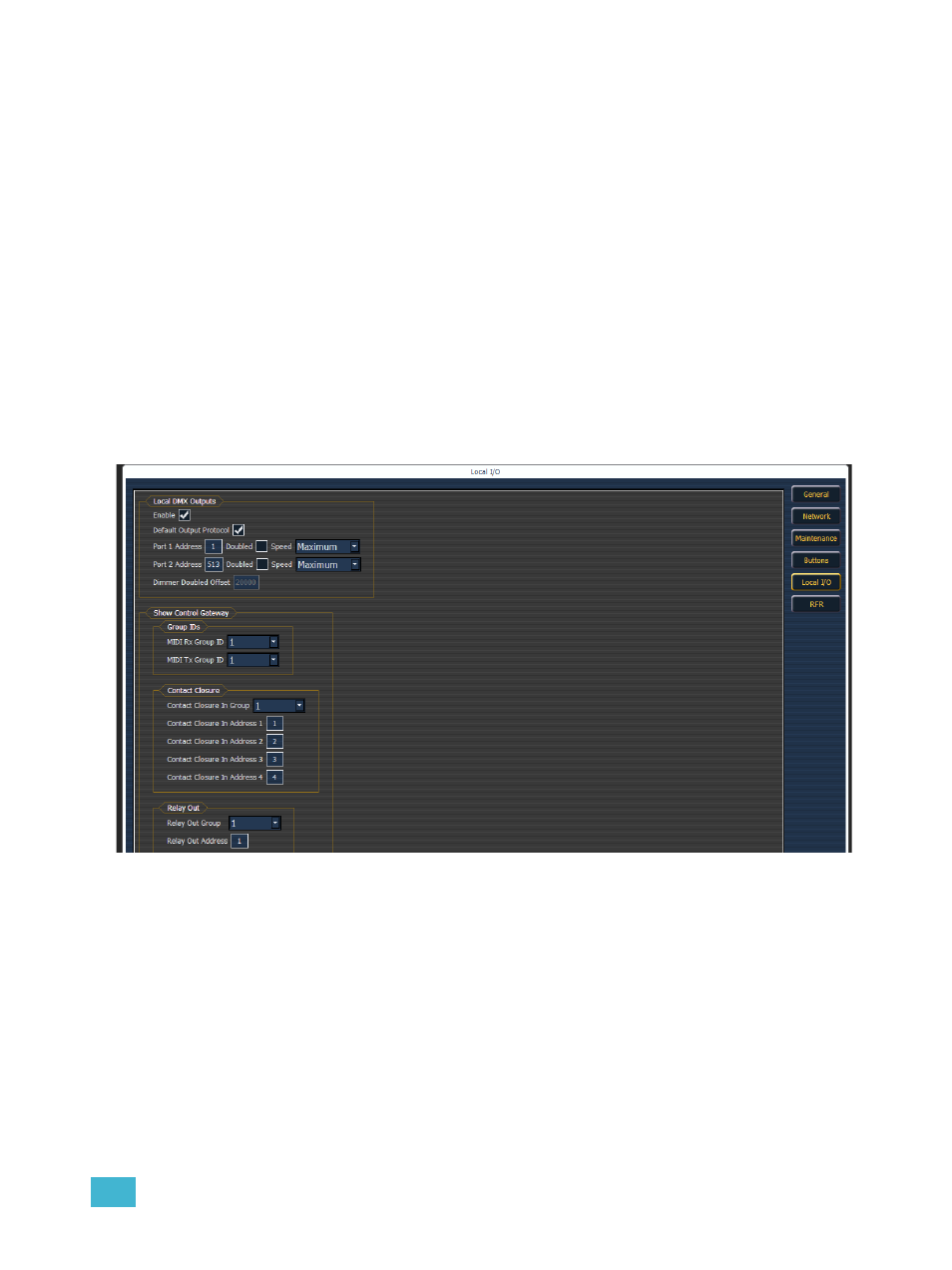

Local I/O
This screen allows you to configure the ports on the back of the Ion desk.
Local DMX Outputs
The following settings are available:
• Enable - enables DMX output from the local ports.
• Default Output Protocol - enables DMX as a default output.
• Ports - the settings for the two DMX ports.
• Address - sets the starting address for the port.
• Doubled - enables dimmer doubling on the port.
• Speed - sets the speed for the ports. Options are: maximum, fast, medium, and slow.
The speed may need to be adjusted for certain devices. The default speed is maximum.
• Dimmer Doubled Offset - this offset matches the default offset in CEM+ / CEM3 when
configuring your Sensor dimmer rack for dimmer doubling. The default offset is 20,000.
