Section 9 Hydraulic System
Model 6036/6036T S/N 9B0500 thru 14833 9-75
6
MK0230
8
12
3
7
11
10
3
2
1
9
4
9
1. Jam Nut (Small)
2. Hex Nut (Large)
3. Tie Rod
4. Outlet Section
5. Seal Plate Kit
6. Working Section
(Extend/Retract)
7. Working Section
(Raise/Lower)
8. Inlet Section
9. Plug
10. Plug
11. Shuttle Ball
12. Orifice Screw

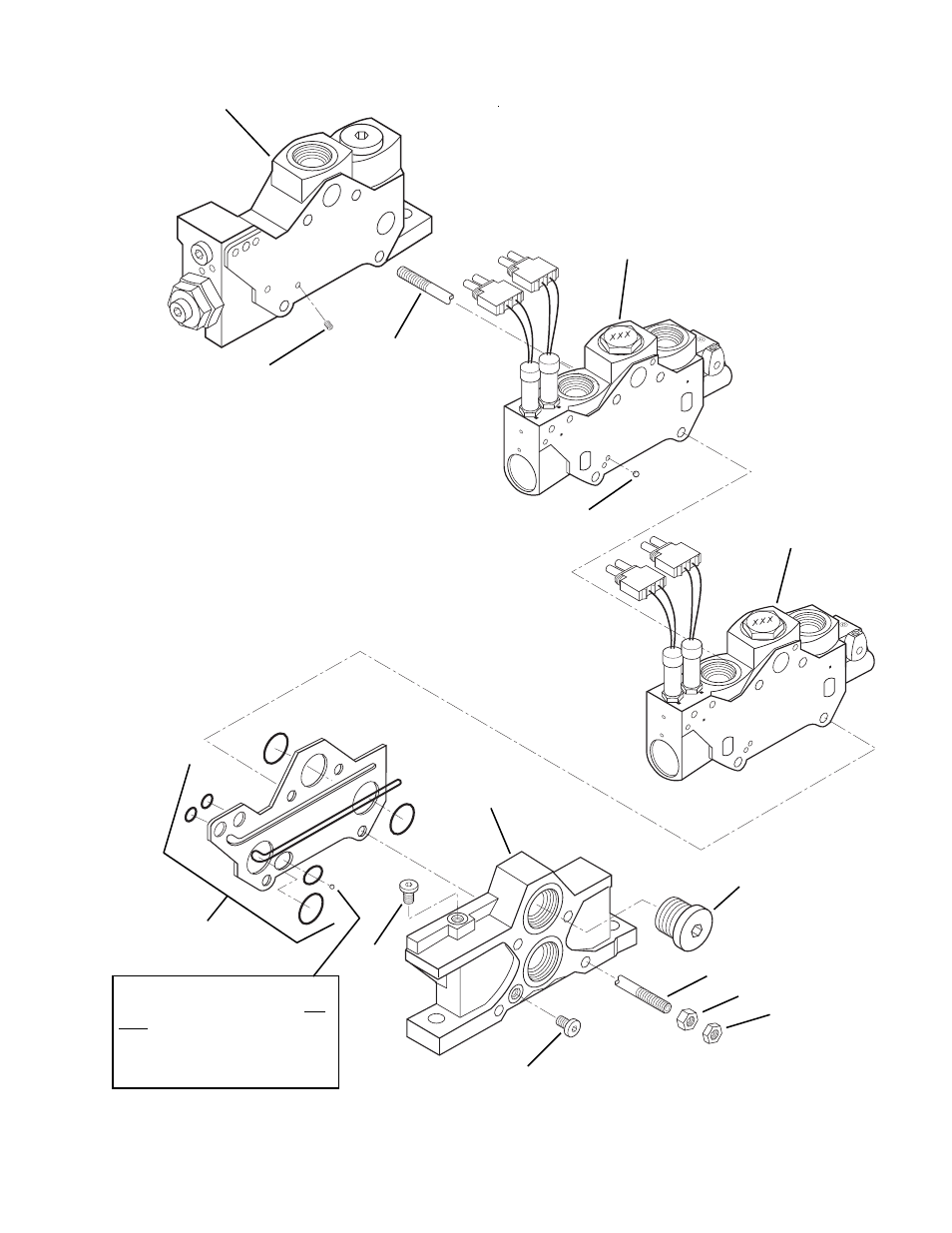

Fig. 9.44 Control Valve Sections - Exploded View
NOTE: Each seal plate kit will
come with a shuttle ball (11). DO
NOT use shuttle ball between the
inlet and raise/lower sections or
between the outlet and extend/
retract sections.
