Section 8B Cummins Engine
8B-26 Model 6036/6036T S/N 9B0500 thru 14833

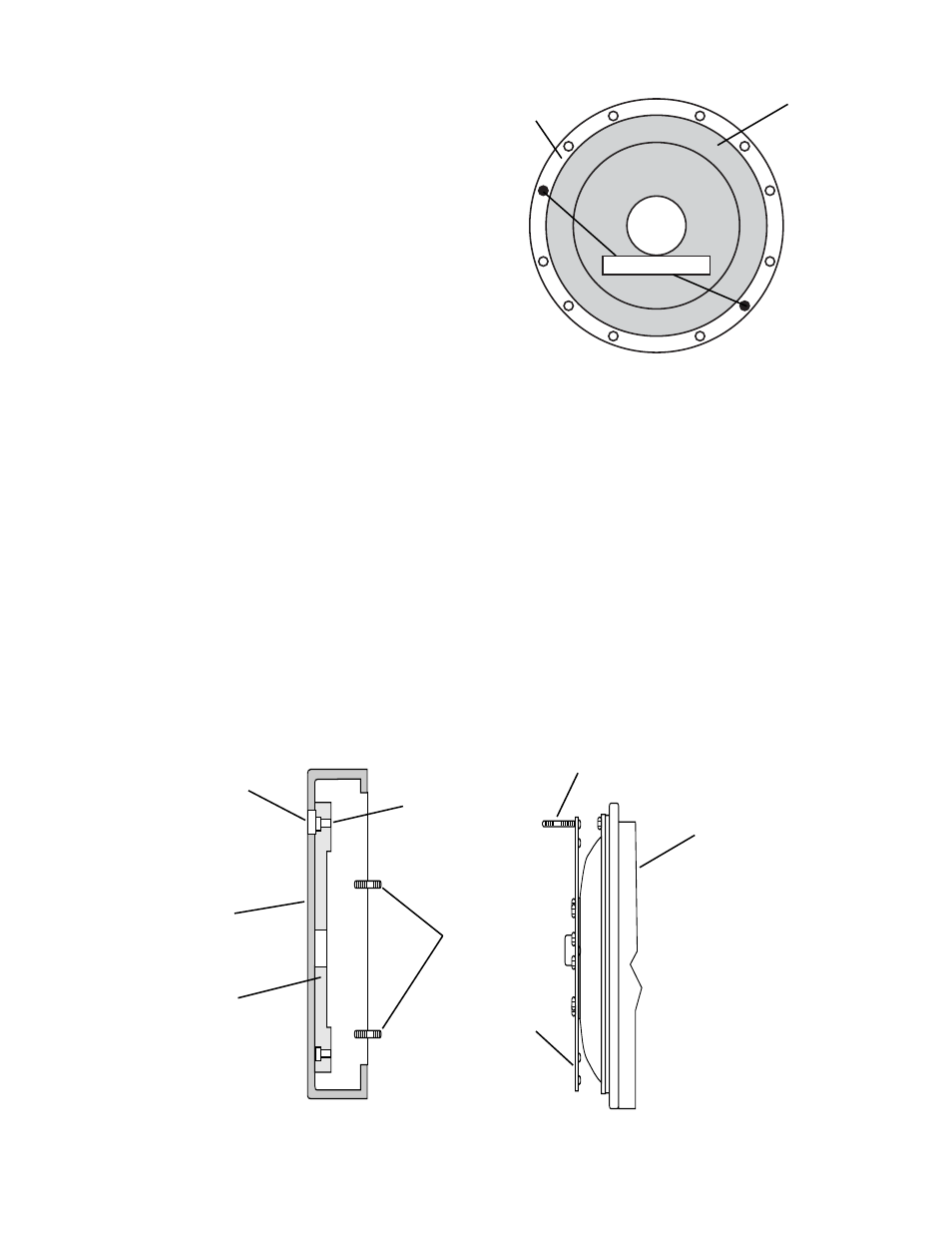

Fig. 8B.47 Guide Studs
Fig. 8B.48 Locating Stud
CONVERTER
HOUSING
MA0401
(d) Secure the engine mount to the frame with
a capscrew, vibration mount, rebound
washer, and locknut. Torque to 225 to
275 lb-ft (305 to 373 Nm).
(f) Remove the engine hoist.
12. Attach the main pump to the transmission.
13. Secure transmission drive shaft to transmis-
sion with U-bolt or bearing strap. Torque U-
bolt to 20 to 24 lb-ft (27 to 32 Nm) or bearing
strap to 55 to 60 lb-ft (75 to 81 Nm).
14. Install the transmission control cables as
follows:
(a) Place the transmission control valve
spools in the center position.
(b) Secure the control cables to the bracket
being sure to have the clamp and cable
grooves aligned.
(c) Position swivel and lock nut on rod end as
shown in Fig. 4.4. Tighten the locknut.
(d) Be sure the shifter levers are in the center
or middle position.
(e) Reposition the swivel and lock nut so it
aligns with its hole in the swivel linkage
control arm.
(f) Secure the swivel to the control arm with
cotter pin.
15. Attach the throttle control cable to the engine
fuel injection pump as follows:
(a) Fasten the throttle cable to the throttle
cable bracket with a clamp being sure to
align the grooves in the cable and clamp.
(b) Secure the throttle cable clevis to the fuel
injection pump throttle and stop lever with
cotter and clevis pins. Adjust the clevis so
that the lever touches the stop screw.
16. Connect the fuel lines to the fuel pre-filter and
fuel filter assemblies.
ACCESS HOLE
FLYWHEEL
HOUSING
FLYWHEEL
2-1/2" GUIDE
STUDS
DRIVE PLATE
MOUNTING
SCREW HOLE
4" LOCATING
STUD
DRIVE PLATE
GUIDE STUDS
FLYWHEEL FLYWHEEL
HOUSING
MA0391
