Agilent E5250A User’s Guide, Edition 11 4-21
Setting up Measurement Environment
Connecting the E5250A Output
For Kelvin connection, use Kelvin triaxial cable listed in Table 4-4. To make a
Kelvin output port (1, 3, 5, 7, 9 and 11), couple two E5252A output ports as follows:

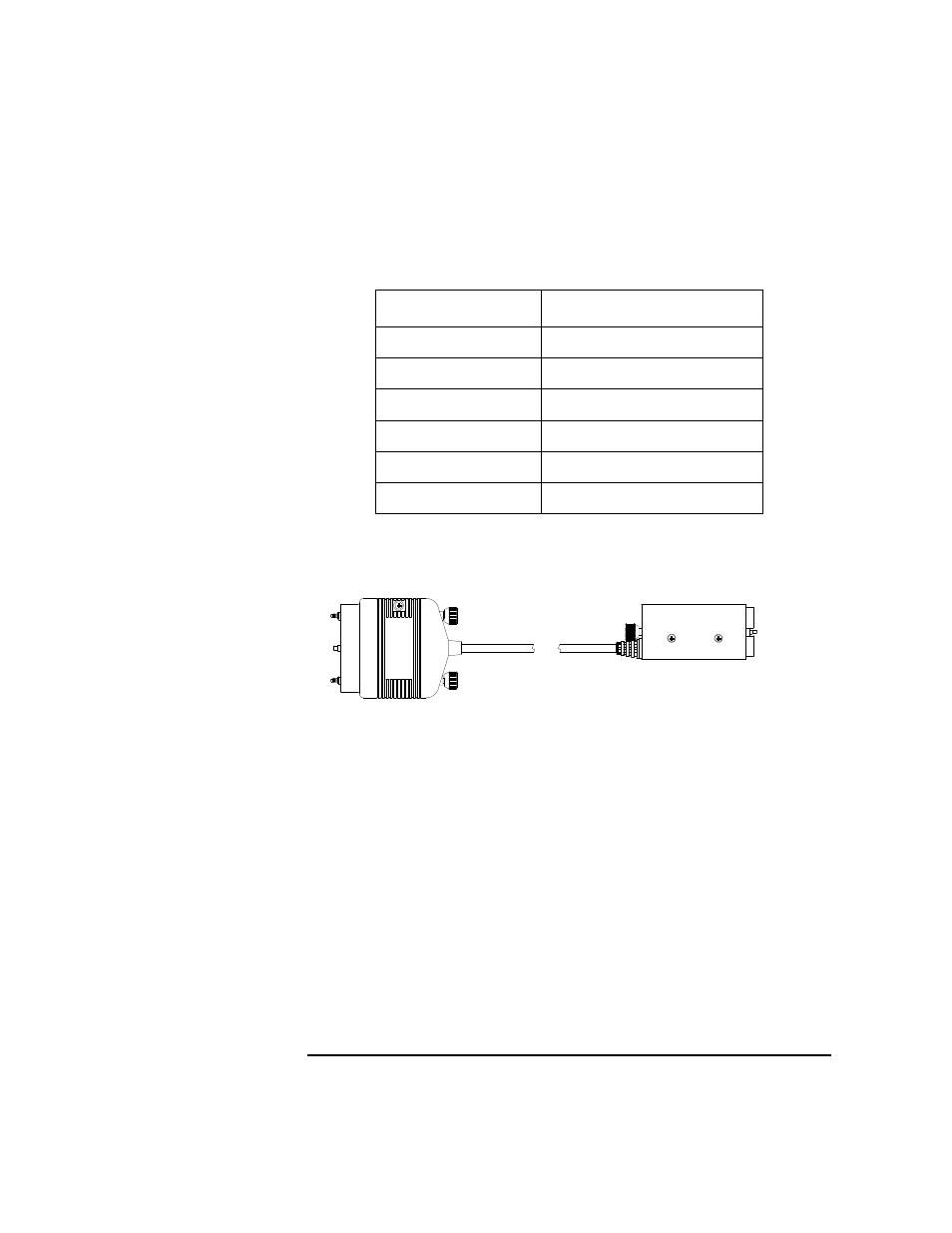

Figure 4-9 shows the 16494B Kelvin triaxial cable for the E5252A.
Figure 4-9 16494B Kelvin Triaxial Cable for E5252A
Kelvin Output Port Output Port Number
1 1 (Force) and 2 (Sense)
3 3 (Force) and 4 (Sense)
5 5 (Force) and 6 (Sense)
7 7 (Force) and 8 (Sense)
9 9 (Force) and 10 (Sense)
11 11 (Force) and 12 (Sense)
Connector Plate Side
E5252A Side
