Agilent E5250A User’s Guide, Edition 11
9-25
Executing Sample Programs
HCI Measurement Program

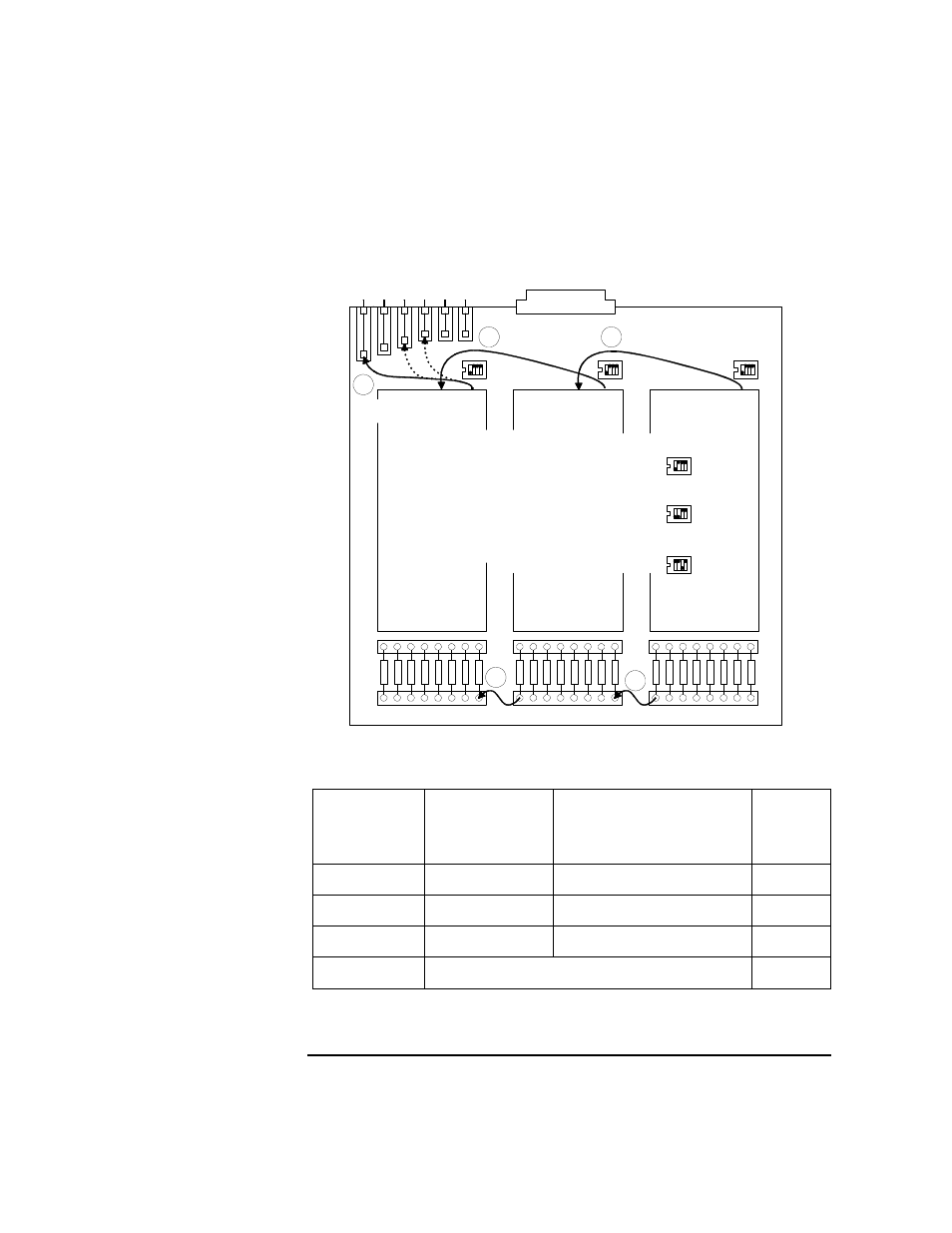

Figure 9-3
Internal Connections and DIP SW Settings for E5255As
Table 9-7
E5250A Input/Output Connection
4155/4156
Measurement
Port
E5250A Input
Port
E5255A Output Port
DUT
SMU 1
SMU INPUT 1
Output 1 to 24 (SLOT 1)
Gate
SMU 3
SMU INPUT 3
Output 25 to 48 (SLOT 2)
Drain
SMU 4
SMU INPUT 4
Output 49 to 72 (SLOT 3)
Sub
GNDU
(directly connected to Connector Plate)
Source
IVin1 cable
IVin3 cable
IVin2 cable
SW1
SW2
SW3
SM
U
1
SM
U
3
SM
U
4
1
2
3
IVout1
IVout2
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
4
5
For E5255A in Slot 1: Connect IVin1 to SMU1, and
set SW1/SW2/SW3 to
For E5255A in Slot 2: Connect IVin1 to SMU3, and
set SW1/SW2/SW3 to
For E5255A in Slot 3: Connect IVin1 to SMU4, and
set SW1/SW2/SW3 to
