Agilent E5250A User’s Guide, Edition 11 1-3
Introduction
Agilent E5250A Product Description
Agilent E5250A Product Description
Agilent E5250A Low Leakage Switch Mainframe is a computer-controlled
switching matrix mainframe designed for semiconductor dc characteristics
measurement applications. The E5250A has four slots for installing the modules
(plug-in cards) listed in Table 1-1.
These cards can be used in various switching matrix configurations in the E5250A.
For example, using four E5252As, you can configure a maximum 10-input
48-output switching matrix, or using four E5255As, you can configure a maximum
2-input
× 96-output multiplexer.
Table 1-1 Available Plug-in Cards for E5250A

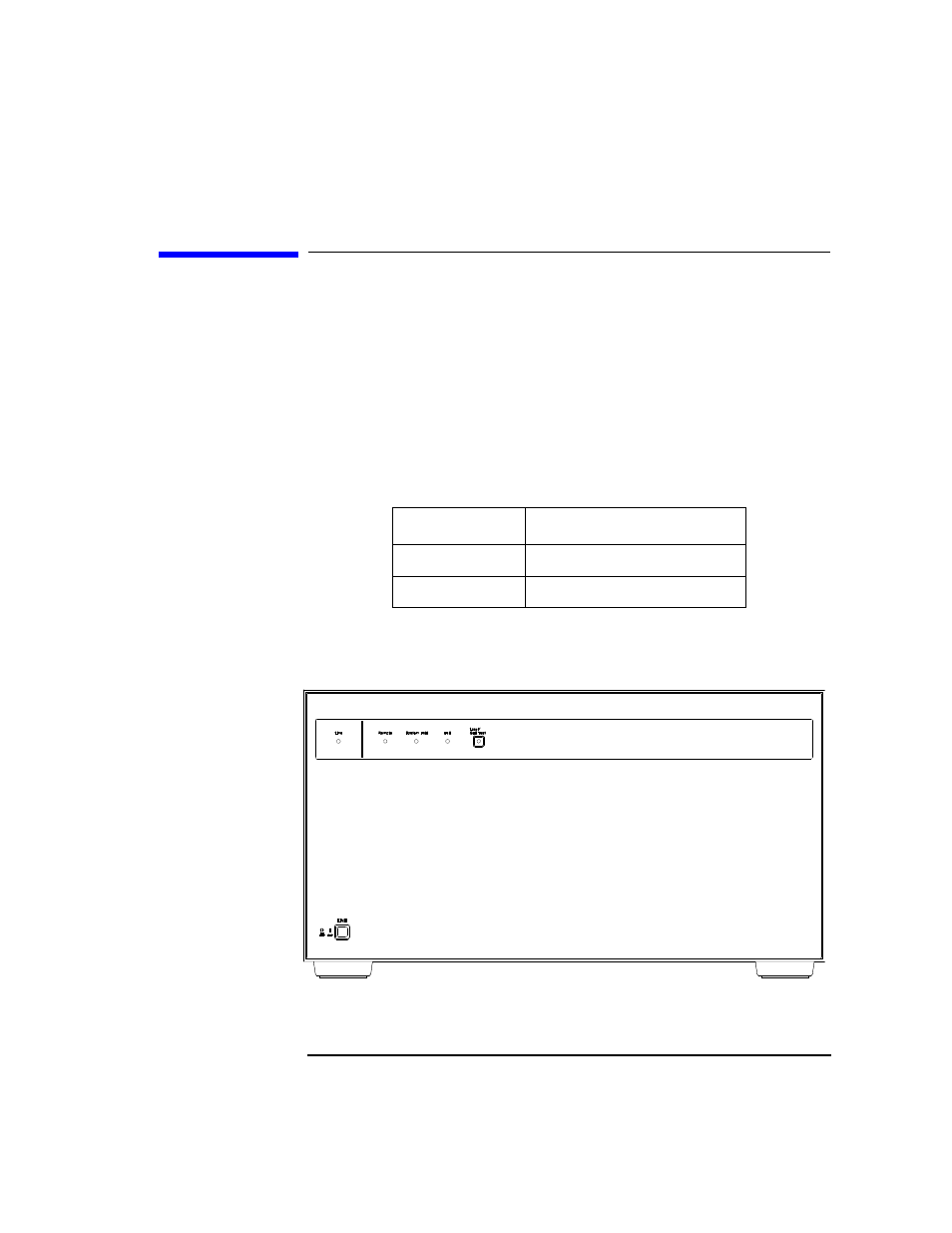

Figure 1-1 E5250A Front Panel
Model No. Description
E5252A 10 ×12 Matrix Switch
E5255A 24 (8 ×3) Channel Multiplexer
