6. Diagnosis and fault display
6−6
Festo P.BE−GDCP−SFC−LACI−PB−E N en 0812NH

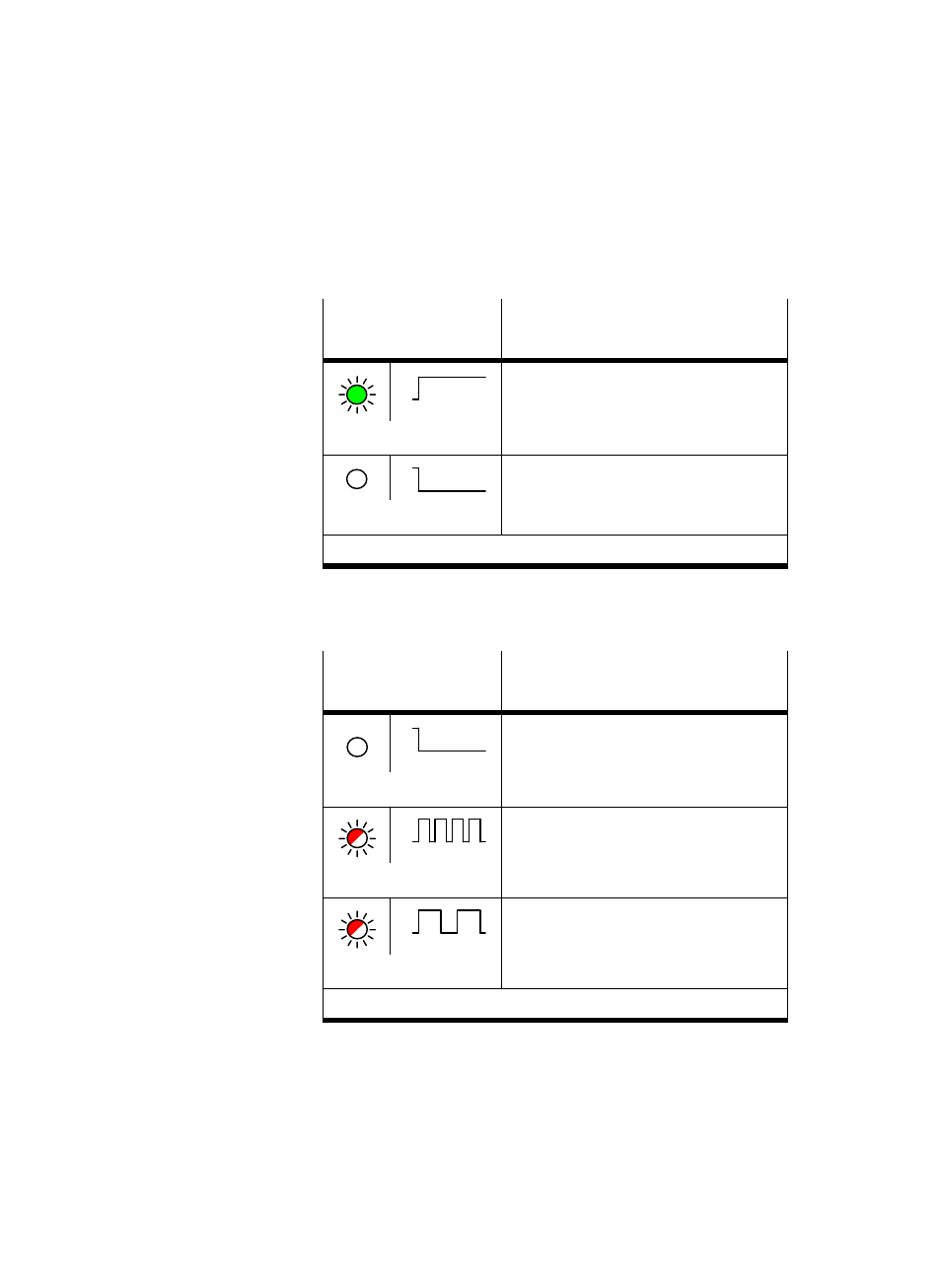

Bus status, positioning status and controller enable
I/F 1) Status
green: MC
ON
OFF
Motion complete 1)
Ĉ Positioning procedure is completed or
stopped (motion complete)
lights up green
stopped (motion complete)
ON
OFF
No motion complete
Ĉ Target position not yet reached
off
Target position not yet reached
(positioning procedure running)
1) Two−colour LED
Tab. 6/5: LED I/F" ć green motion complete LED
I/F 1) Status
red: PROFIBUS
ON
OFF
Data exchange active
Ĉ Normal operating status
off
ON
OFF
Address not parameterised
Ĉ Invalid bus address set
flashes red fast (5 Hz)
ON
OFF
Waiting for connection
flashes red slowly (1 Hz)
1) Two−colour LED
Tab. 6/6: LED I/F" ć red PROFIBUS LED
