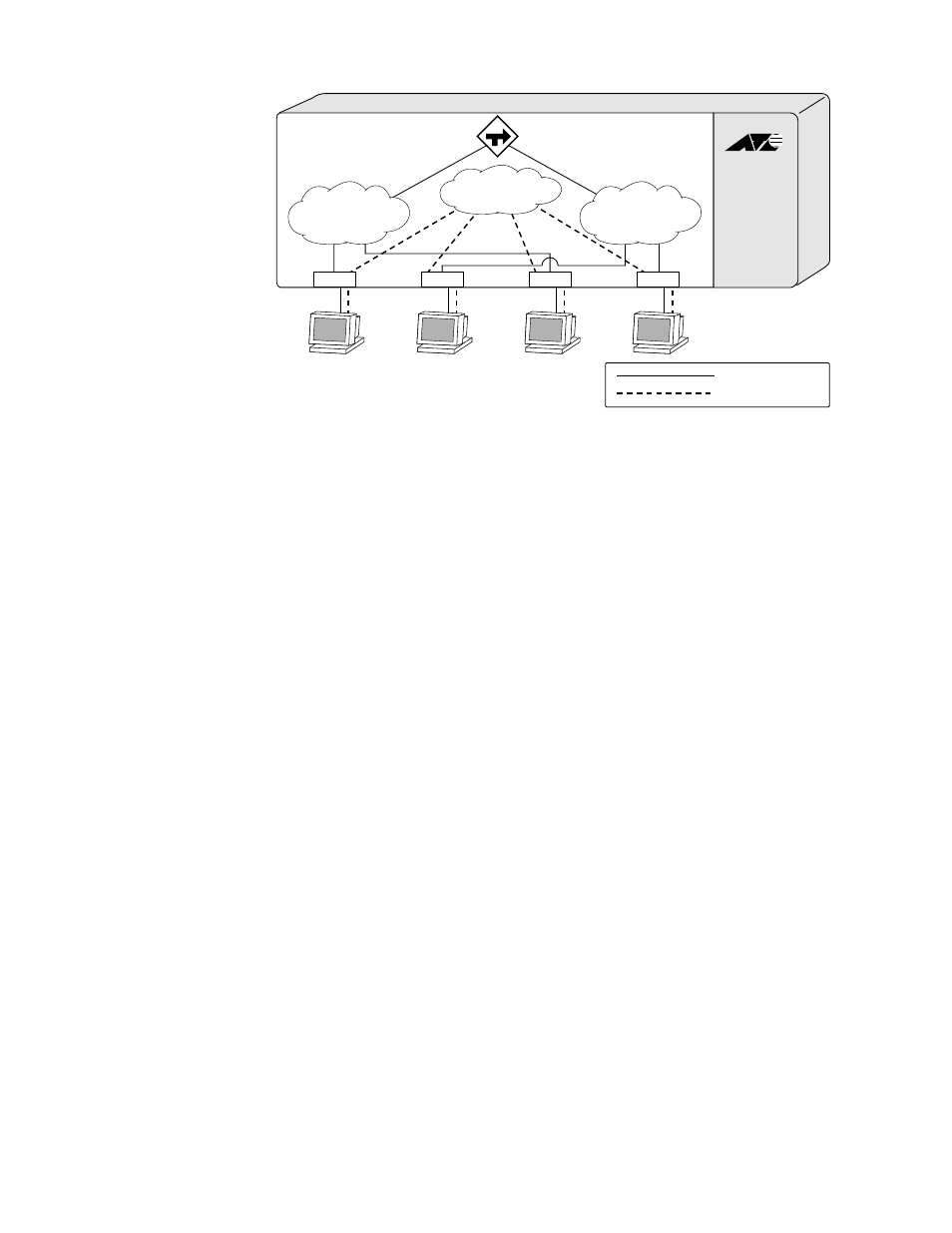

Figure 4-7 Protocol-Based VLANs
Predefined Protocol Filters. The following protocol filters are
predefined on the switch:
❑ IP
❑ IPX
❑ NetBIOS
❑ DECNet
❑ IPX_8022
❑ IPX_SNAP
❑ AppleTalk
Defining Protocol Filters. If necessary, you can define a customized
protocol filter based on EtherType, Logical Link Control (LLC), and/or
Subnetwork Access Protocol (SNAP). Up to six protocols may be part
of a protocol filter.
1
Finance Personnel
My Company
= IP traffic
= All other traffic
192.207.36.0 192.207.35.0
192.207.36.1 192.207.35.1
2 3 4
