Routing Configuration Example
8-22
Routing Configuration Example
Figure 8-2 illustrates a switch that has three VLANs defined as
follows:
❑ Finance
— Protocol-sensitive VLAN using the IP protocol
— Ports 1 and 3 have been assigned
— IP address 192.207.35.1
❑ Personnel
— Protocol-sensitive VLAN using the IP protocol
— Ports 2 and 4 have been assigned
— IP address 192.207.36.1
❑ MyCompany
— Port-based VLAN
— All ports have been assigned

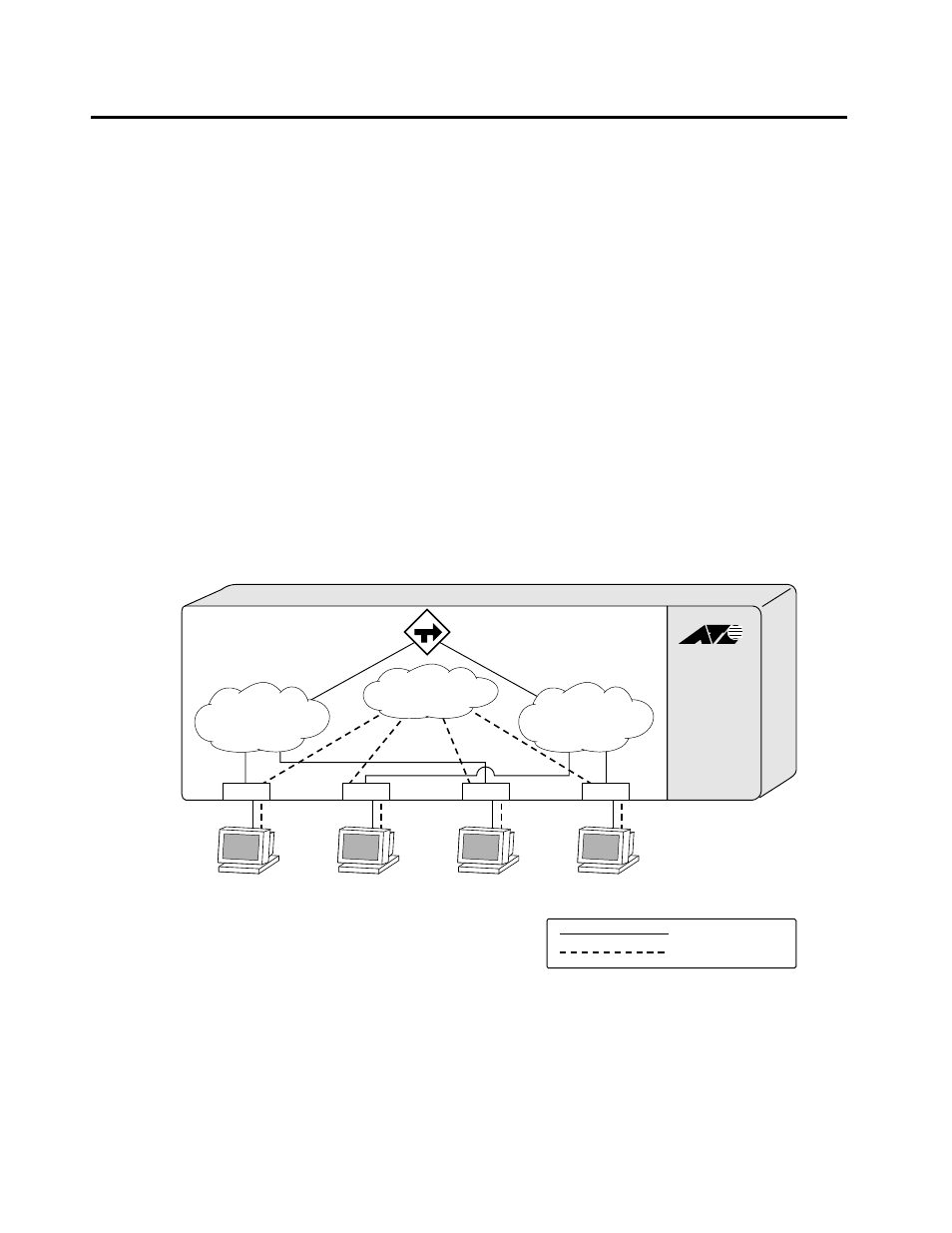

Figure 8-2 Unicast Routing Configuration Example
1
Finance Personnel
My Company
192.207.36.0 192.207.35.0
192.207.36.1 192.207.35.1
2 3 4
IP
NetBIOS IP
NetBIOS IP
NetBIOS IP
NetBIOS
= IP traffic
= NetBIOS traffic
