Route Redistribution
Both RIP and OSPF can be enabled simultaneously on the switch.
Route re-distribution allows the switch to exchange routes, including
static routes, between the two routing protocols.
shows
an example of route re-distribution between an OSPF autonomous
system and a RIP autonomous system.

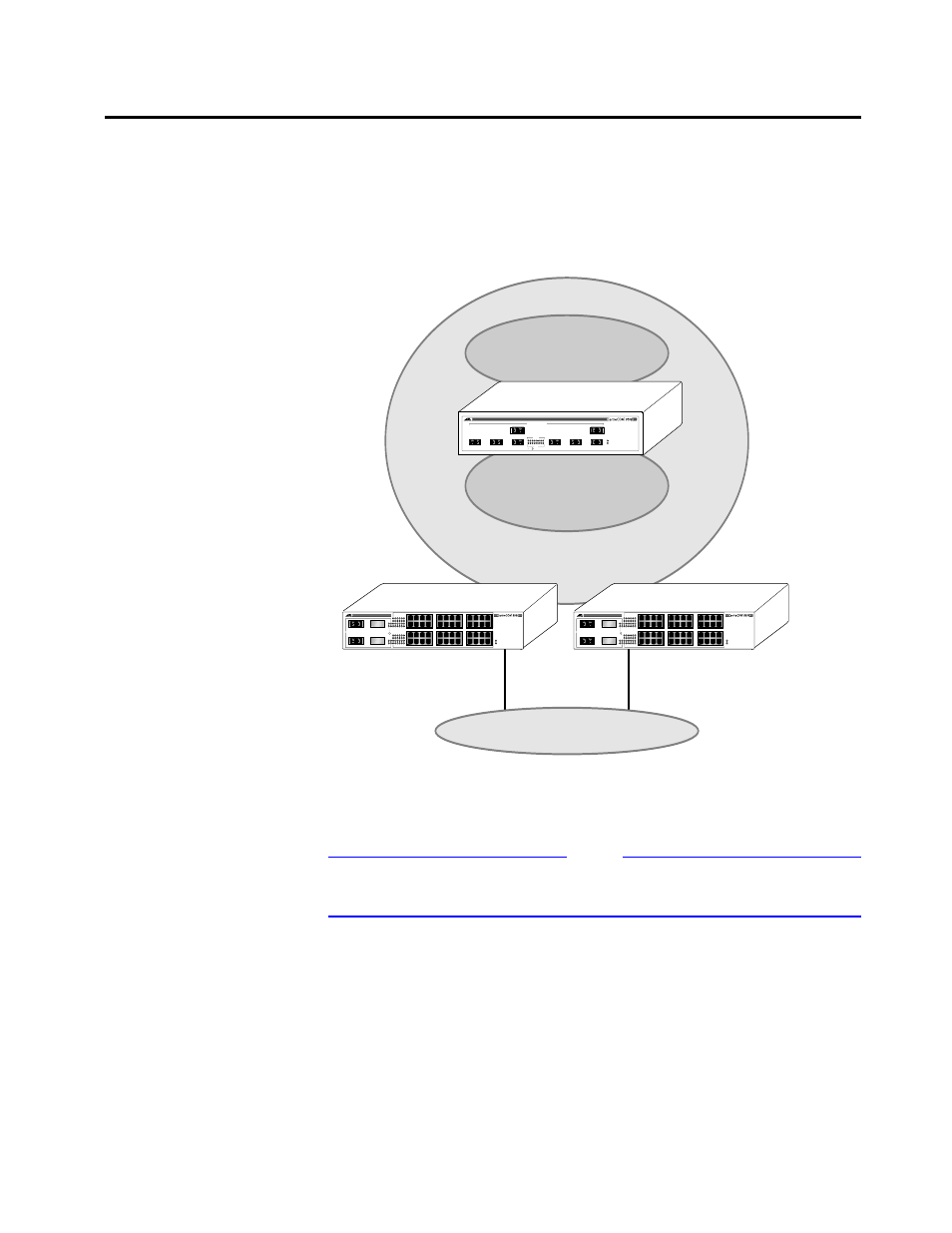

Figure 9-3 Route Redistribution
Note
Although OSPF and RIP can be run simultaneously on the switch, you
cannot apply them both to the same VLAN.
BD_016
OSPF AS
ABR
ASBR
ASBR
RIP AS
LINK
DISABLED
