Using Access Policies
12-6
Example.
illustrates an OSPF network that is similar to
the network used previously in the RIP example. In this example,
access to the Internet is accomplished by the use the ASBR function
on the switch labeled “Internet.” As a result, all routes to the Internet
will be done through external routes. Suppose the network
administrator wishes to only allow access only to certain internet
addresses falling within the range 192.1.1.0/24 to the internal
backbone.

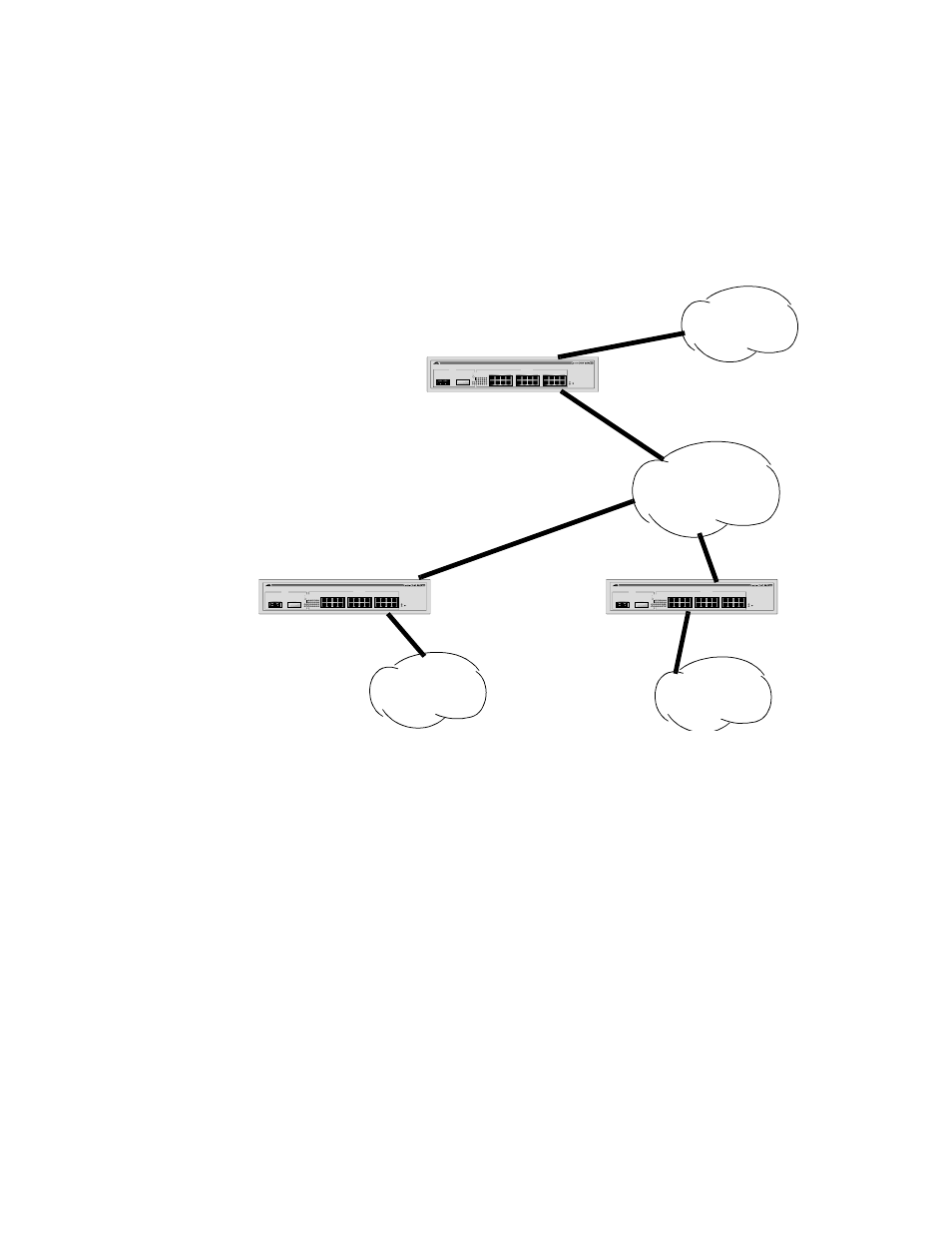

Figure 12-2 OSPF Access Policy Example
To configuring the switch labeled Internet, the commands would be
as follows:
create access-profile okinternet ipaddress
config access-profile okinternet mode permit
config access-profile okinternet add
192.1.1.0/24
config ospf asbr-filter okinternet
