IPX Configuration Example
11-12
IPX Configuration Example
Figure 11-2 builds on the example showing the IP/RIP configuration
that was used in Figure 9 - 4 . Now, in addition to having IP VLANs
configured, this example illustrates a switch that has the following
IPX VLANs defined:
❑ Exec
— Protocol-sensitive VLAN using the IPX protocol with the
filter IPX_8022
— Ports 4 and 5 have been assigned to Exec
— Exec is configured for IPX NetID 2516 and IPX
encapsulation type 802.2
❑ Support
— Port 7 have been assigned to Support
— Support is configured for IPX NetID A2B5 and IPX
encapsulation type 802.2

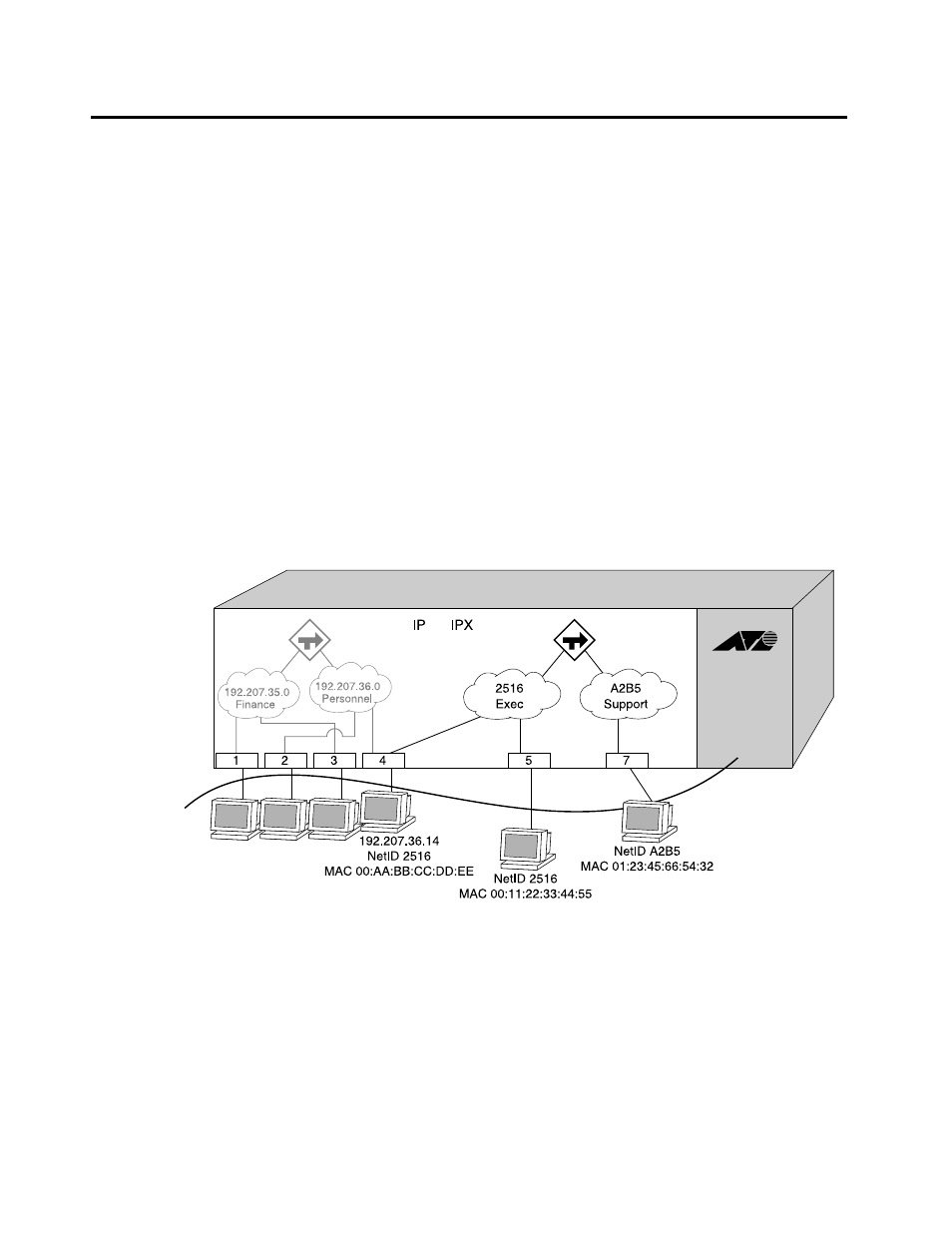

Figure 11-2 IPX Routing Configuration Example
