AT-S79 Management Software User’s Guide
Section II: Web Browser Interface 313
Viewing the RSTP Topology
To view the current RSTP topology, perform the following procedure:
1. From the bookmarks on the left side of the page, select Bridge.
The Spanning Tree folder is displayed.
2. From the Bridge folder, select Spanning Tree.
3. From the Spanning Tree folder, select Topology Info.

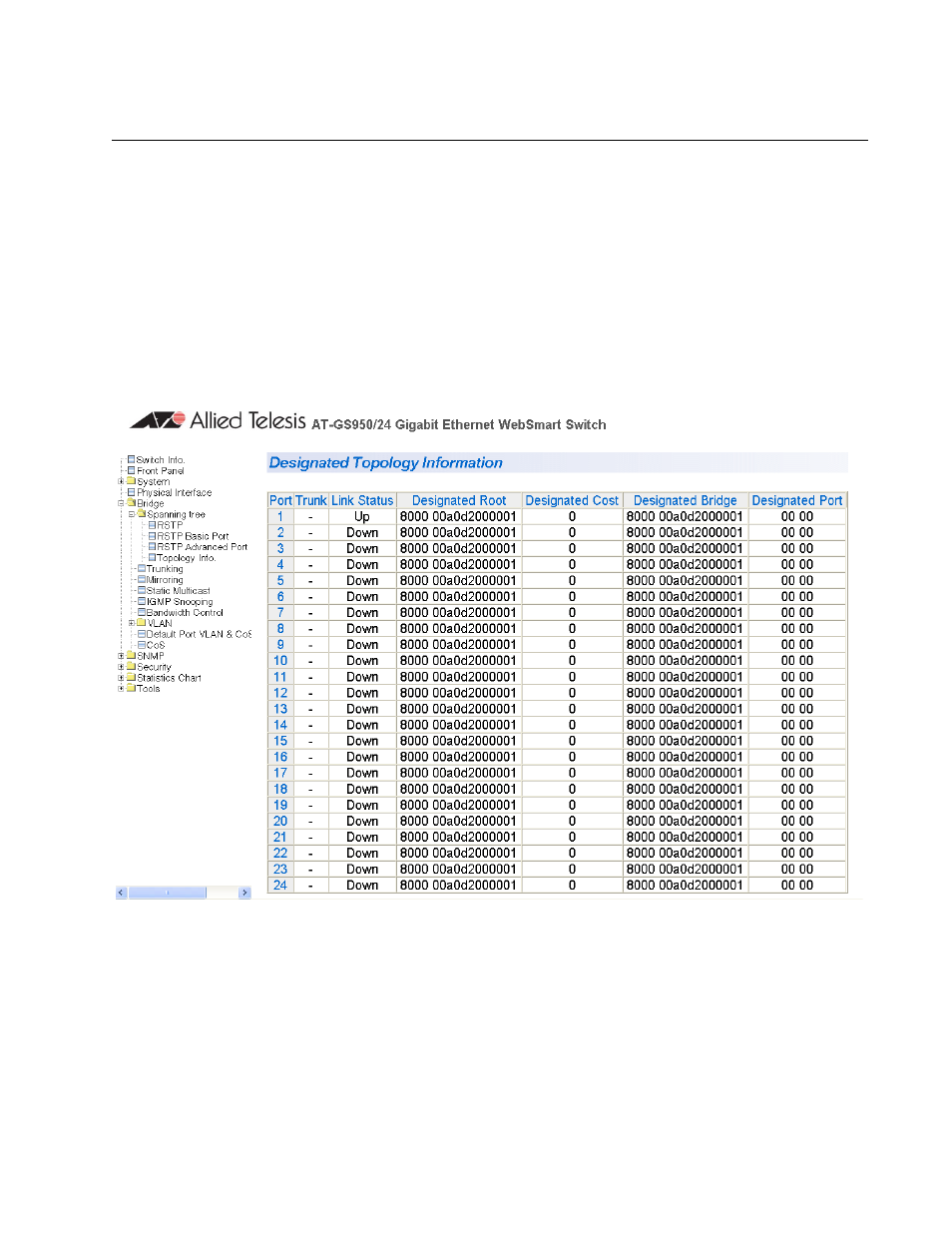

The Designated Topology Information page is shown in Figure 92.
Figure 92. Designated Topology Information Page
This page displays the following information about the ports:
Port Trunk
The trunk of which the port is a member.
Link Status
Whether the link on the port is up or down.
