AT-S79 Management Software User’s Guide
Section II: Using the Web Browser Interface 285
Creating a Port-Based VLAN
To create a port-based VLAN, perform the following procedure:
1. From the bookmarks on the left side of the page, select Bridge.
2. From the Bridge folder, select VLAN.
3. From the VLAN folder, select Port-Based VLAN.

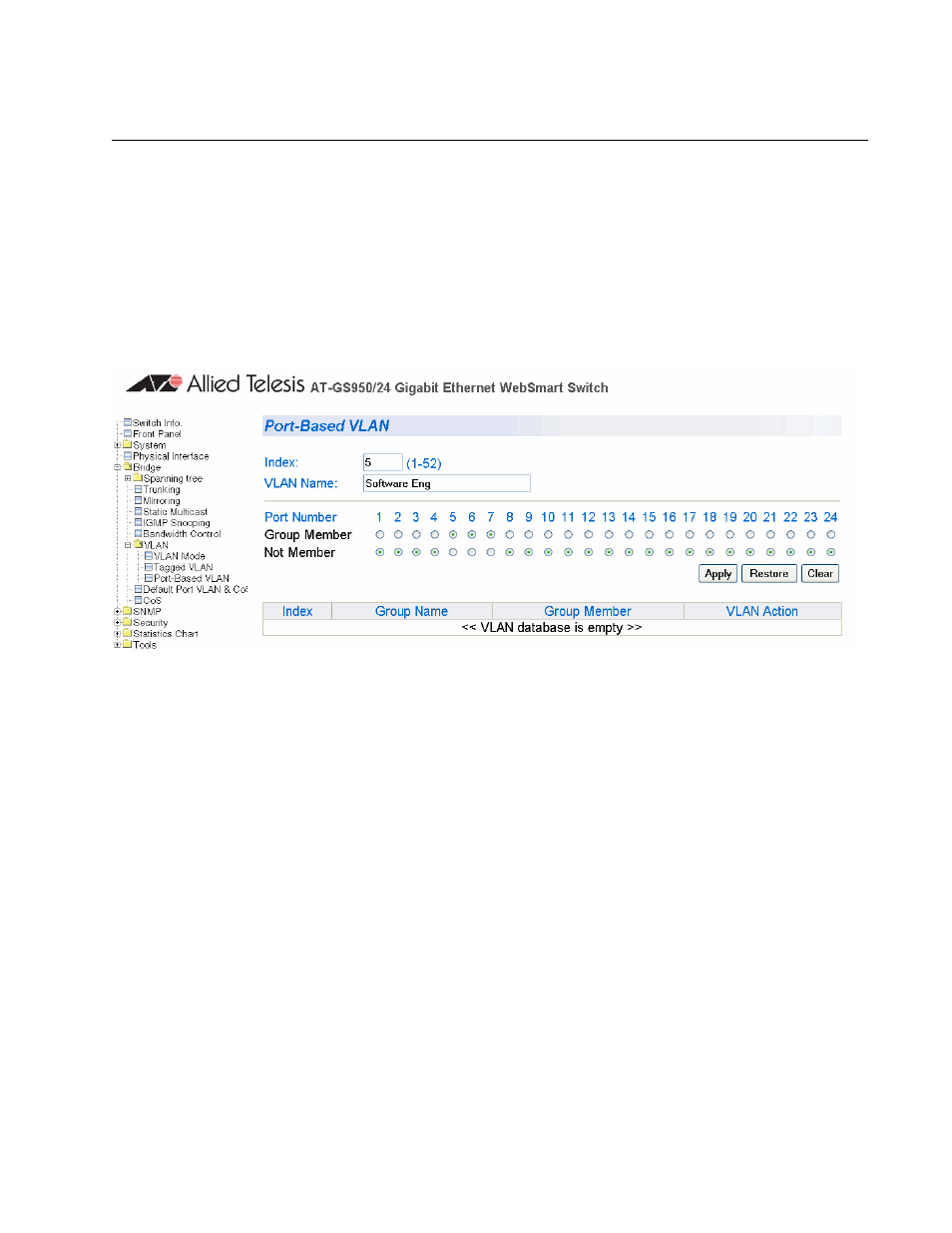

The Port-Based VLAN page is shown in Figure 82.
Figure 82. Port-Based VLAN Page
4. To assign a VLAN ID, type a VLAN ID in the VLAN ID field.
You can choose a value between 2 and 4,000.
5. To assign a name to a VLAN, type in a name in the VLAN Name field.
6. To assign ports to the VLAN, click on the port numbers labeled either
Static Tagged or Static Untagged. Then click Apply.
