Chapter 20: Starting a Web Browser Management Session
222 Section II: Using the Web Browser Interface
The main menu is on the top of the home page. It consists of the following
folders:
ˆ Switch Info.
ˆ Front Panel
ˆ System
ˆ Physical Interface
ˆ Bridge
ˆ SNMP
ˆ Security
ˆ Statistics Chart
ˆ Tools
4. To see the front panel of the switch. Click on Front Panel in the
bookmarks on the left side of the page.
The AT-S79 management software displays the home page. The
window contains an image of the front of the switch. Ports that have a
link to an end node are green. Ports without a link are grey. An
example of a front panel is shown in Figure 57.

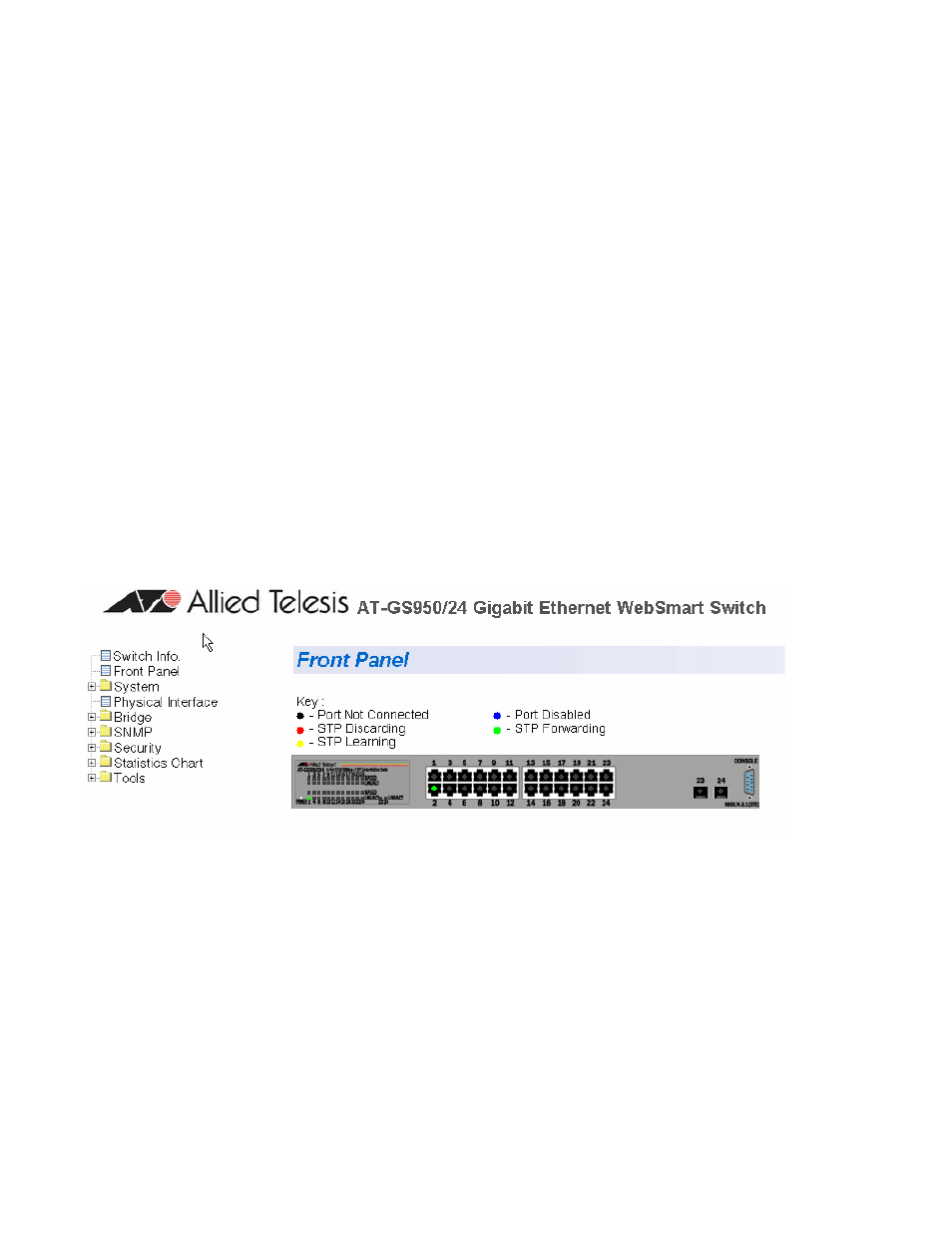

Figure 57. AT-S79 Management Software Front Panel
A web browser management session remains active even if you link to
other sites. You can return to the management web pages anytime as long
as you do not quit the browser.
