Chapter 30: Simple Network Management Protocol (SNMP)
296 Section II: Using the Web Browser Interface
Enabling or Disabling Traps
This procedure enables or disables traps for an SNMP community.
To enable or disable a trap, perform the following procedure:
1. From the bookmarks on the left side of the page, select Bridge.
2. From the Bridge folder, select SNMP.
3. From the SNMP folder, select Trap Setting.
The Trap Setting page is shown in Figure 86.

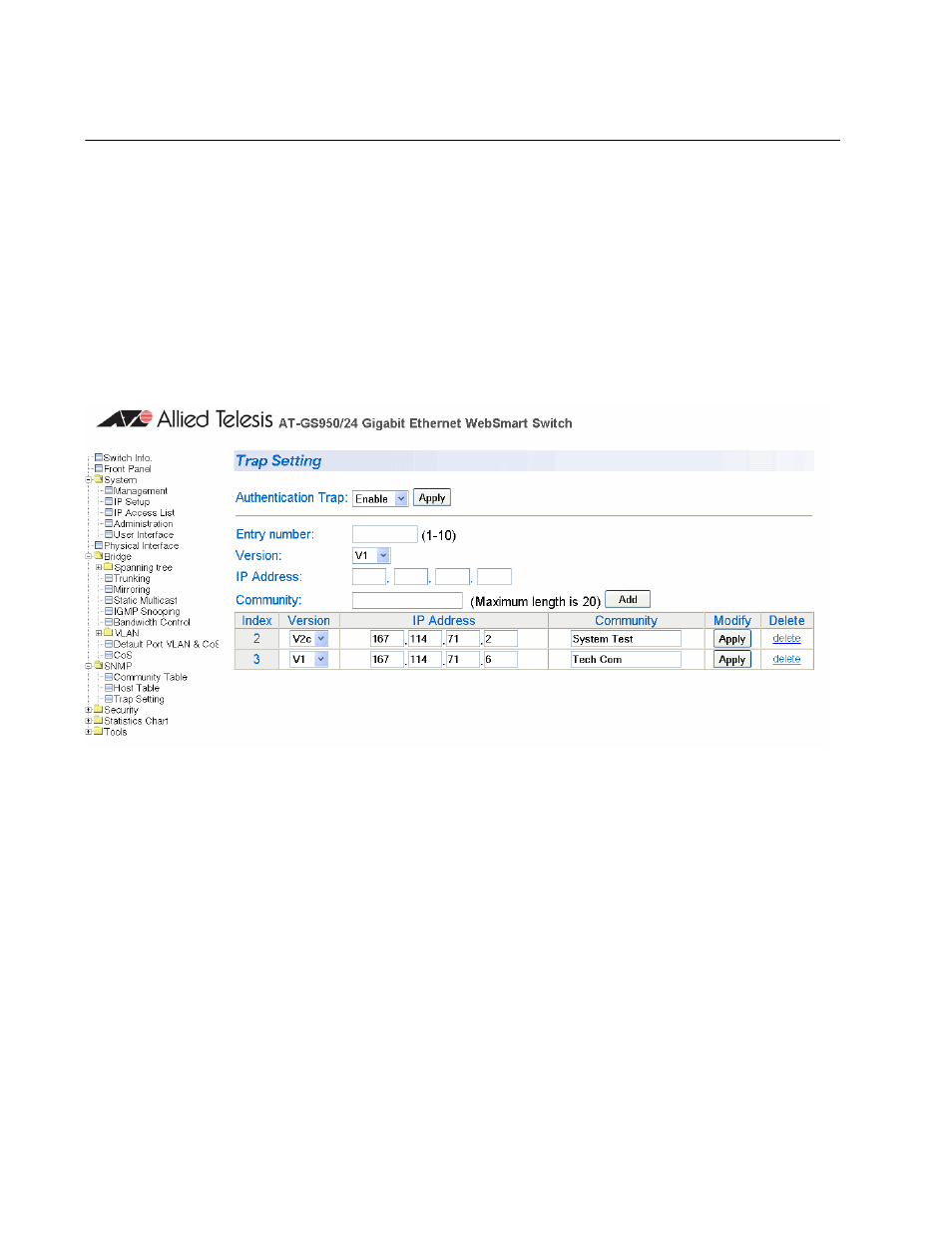

Figure 86. Trap Setting Page
4. Type a trap number between 1 and 10 in the Entry number field.
5. Select the SNMP version of the trap by selecting V1 for SNMP version
1 or V2c for SNMP version 2vc in the Version field.
6. Enter an IP address, in the xxx.xxx.xxx.xxx format, in the IP Address
field.
7. Enter a previously defined community name in the Community field.
Then click Add.
A new trap is displayed in the Trap Setting table.
