Chapter 13: Rapid Spanning Tree Protocol (RSTP)
160
Section I: Using the Menus Interface
There are two possible selections:
Point-to-point port
Edge port
The default setting for the RSTP port point-to-point status is automatic.
With the automatic setting, the point-to-point status is True of the port is
operating in full-duplex mode. If the port is operating in half-duplex mode,
then the point-to-point status is False.

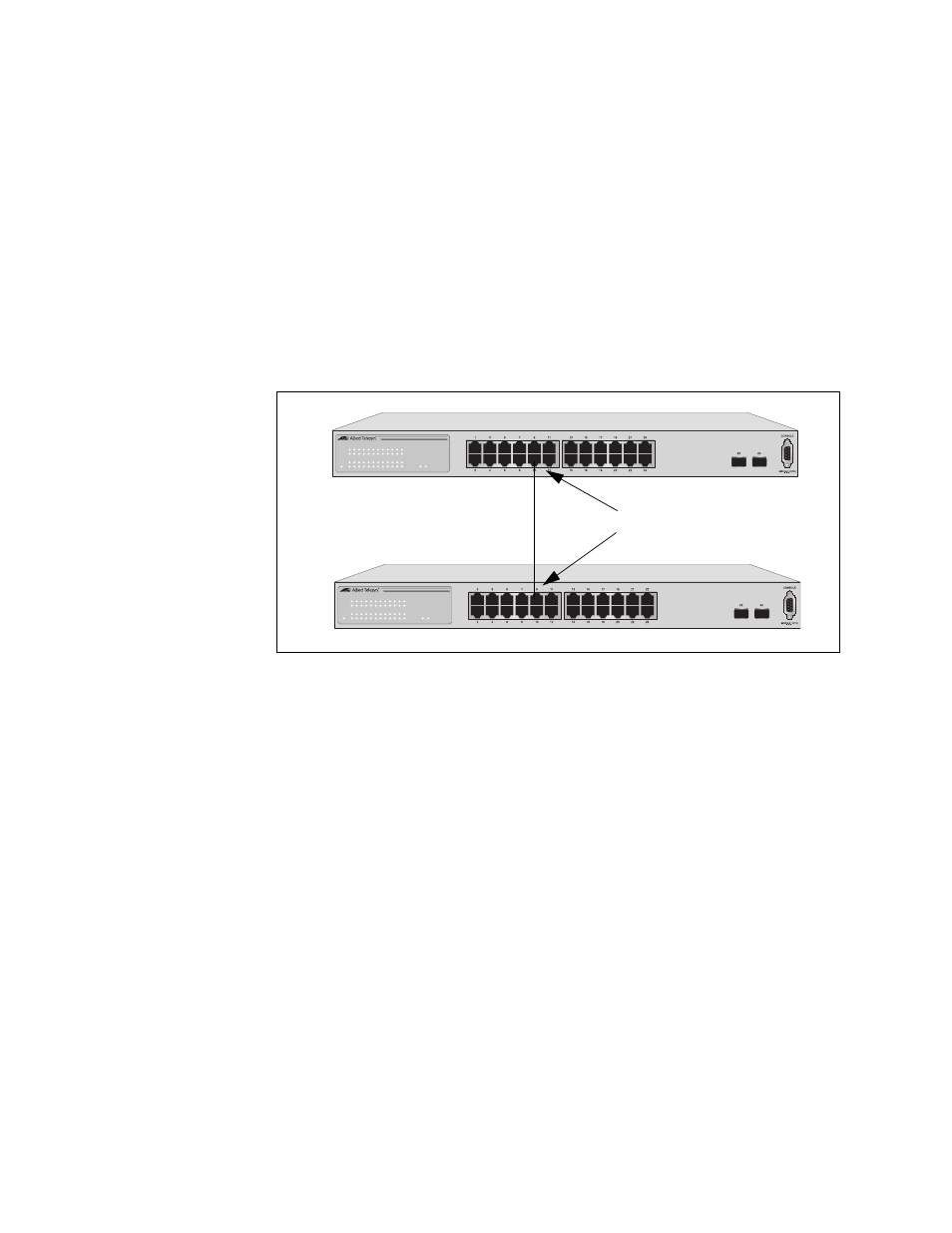

Figure 36 illustrates two AT-GS950/24 switches that have been connected
with one data link. With the link operating in full-duplex, the ports are point-
to-point ports.
Figure 36. Point-to-Point Ports
If a port is operating in half-duplex mode and is not connected to any
further bridges participating in STP or RSTP, then you need to manually
define the port as an edge port. The default setting for the edge port status
is False. You must manually configure this setting for each port. There is
no automatic mode for the edge port setting. Figure 37 on page 161
illustrates an edge port on an AT-GS950/24 switch. The port is connected
to an Ethernet hub, which in turn is connected to a series of Ethernet
workstations. This is an edge port because it is connected to a device
operating at half-duplex mode and there are no participating STP or RSTP
devices connected to it.
732
1
3
5
7
9
11
13
15
17
19
21
23
POWER
2
4
6
8
10
12
14
16
18
20
22
24
23
24
LINK/ACT
LINK/ACT
SPEED
LINK/ACT
SPEED
AT-GS950/24
24-Port 10/100/1000Mbps + 2 SFP Combo WebSmart Switch
732
1
3
5
7
9
11
13
15
17
19
21
23
POWER
2
4
6
8
10
12
14
16
18
20
22
24
23
24
LINK/ACT
LINK/ACT
SPEED
LINK/ACT
SPEED
AT-GS950/24
24-Port 10/100/1000Mbps + 2 SFP Combo WebSmart Switch
Point-to-Point Ports
(Full-duplex Mode)
