MAN0878-04-EN CH. 15
August 12, 2009 Page 81 of 100 ECN # 979
XLt:

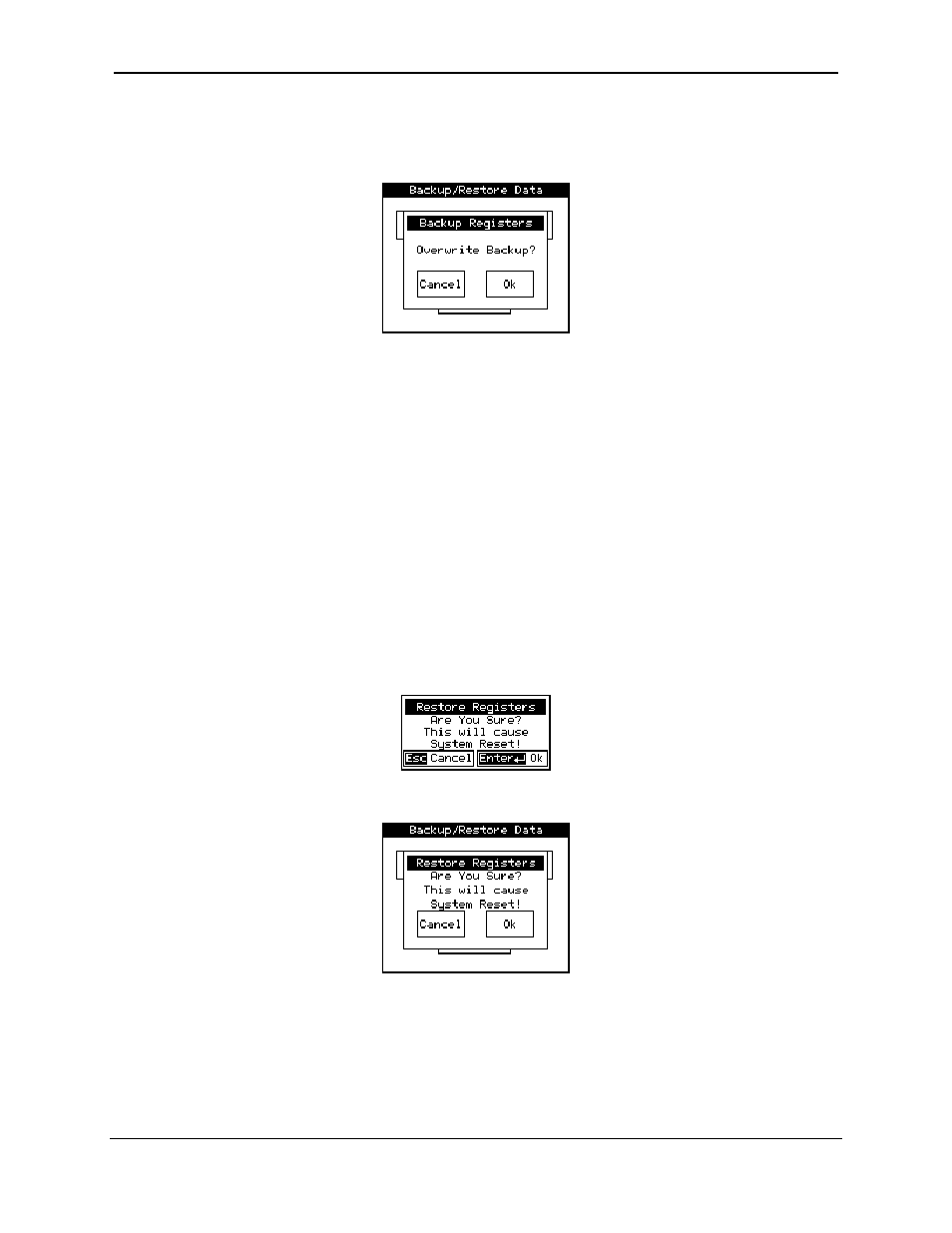

Figure 15-3 – Backup Registers
Restore OCS Data:
When initiated, this will allow the user to manually copy the backed up data from the onboard FLASH to
the Battery-Backed RAM.
A restore operation will be automatically initiated if a backup has been previously created and on power-
up the Battery-Backed RAM registers fail their check.
The following process will be followed for restoring data:
• The controller will be placed in IDLE mode.
• Data will be copied from onboard FLASH to OCS Battery-Backed RAM
• The controller will reset.
• The controller will be put in RUN mode if the AutoRun setting is ‘Yes’ else it will remain in IDLE
mode.
XLe:
XLt:
Figure 15-4 – Restore OCS Data
%SR164.3 is set to 1 only when an automatic restore operation is performed - not on a manual one. This
bit is reset to 0 when a new backup is created.
Restoring of data can be manually performed by selecting RESTORE option from the Backup / Restore
Data menu. This will cause the controller to reset.
