4.4
Primary Power Port
Table 4.1 – Primary Power Port Pins
Pin Signal Description
1 Frame Ground
2 0V Input power supply ground
3 +24V Input power supply positive voltage

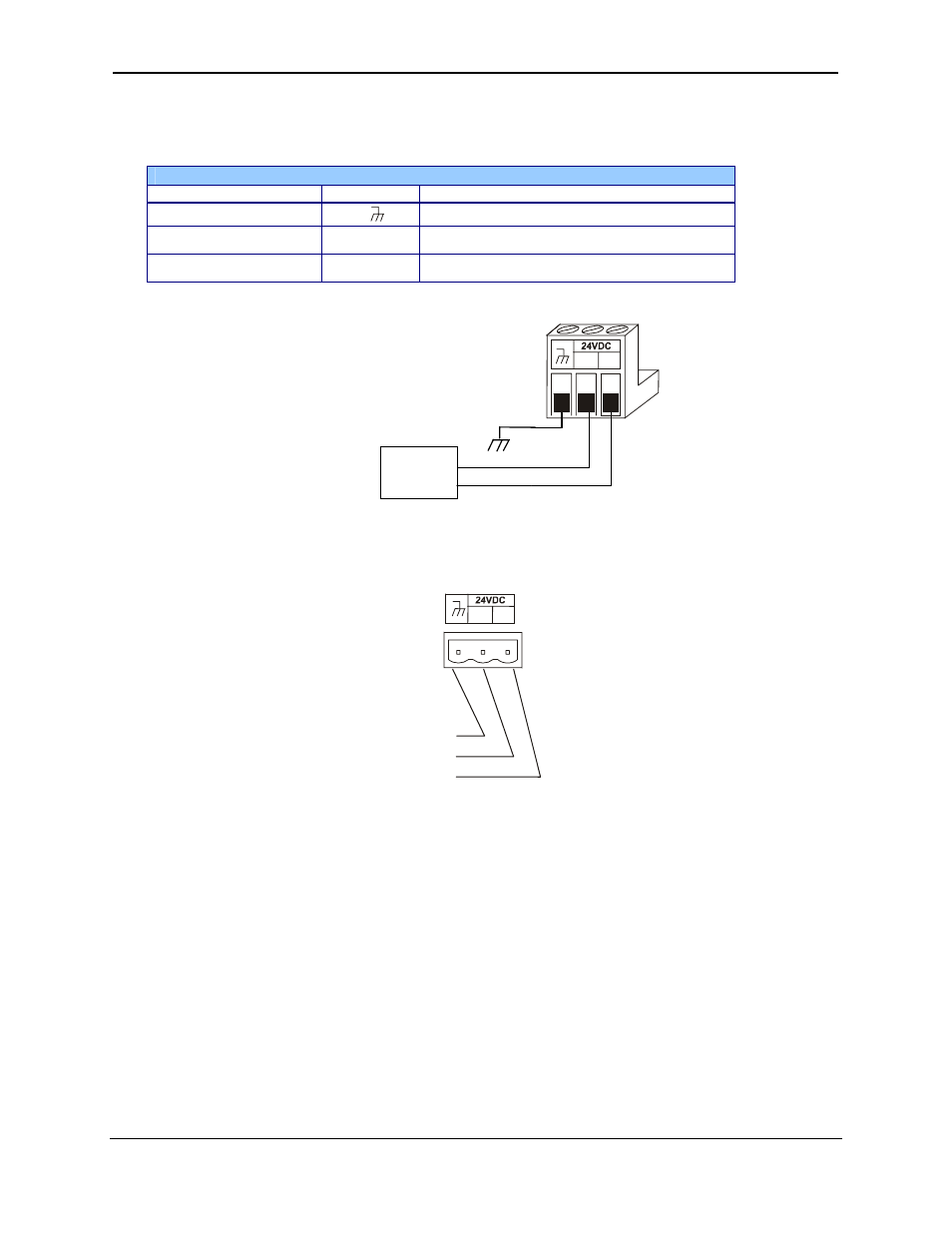

Figure 4-2 – Power Connector (Primary Power Port)
Figure 4-3 – As Viewed Looking at the XLe/XLt
001NX002
PIN 1
PIN 2
PIN 3
+
-
10-30 VDC
supply
-
+
+
-
Power Connector
Power Up:
Connect to Earth Ground.
Apply 10 – 30 VDC.
Screen lights up.
Torque rating 4.5 - 7 Lb-In
(0.50 – 0.78 N-m)
