MAN0878-04-EN CH.3
August 12, 2009 Page 17 of 100 ECN # 979
3.4 Panel
Cut-Out
For installations requiring NEMA4X liquid and dust protection the panel cutout should be cut with a
tolerance of ± 0.005” (0.1 mm). The XLe/XLt is designed to fit ¼ DIN panel openings. There are a
number of punches and enclosures designed to accommodate opening of this size.

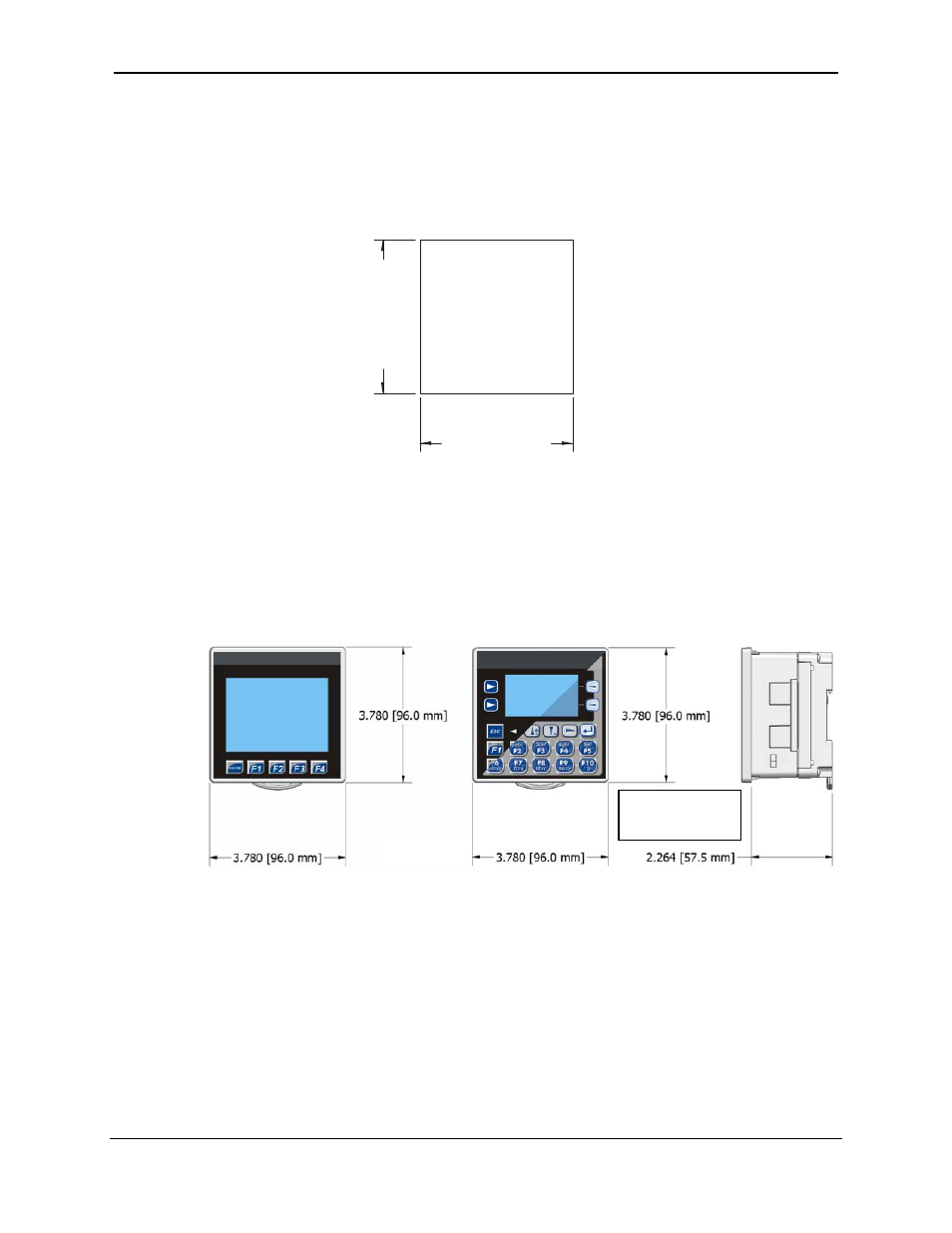

Figure 3-4 – XLe/XLt Panel Cut-out
3.5 Dimensions
XLt XLe
Figure 3-5 – XLe/XLt Dimensions
Note: When the communication add-on modules are installed such as Ethernet or Modem the depth of
the product increases from 2.264 (57.5 mm) to 2.68 (68 mm).
3
.62
2
[9
2mm
]
3.622 [92mm]
001XLE002
Note – Your keypad overlay
appearance may differ.
Standard US/EU overlays
pictured here for example .
