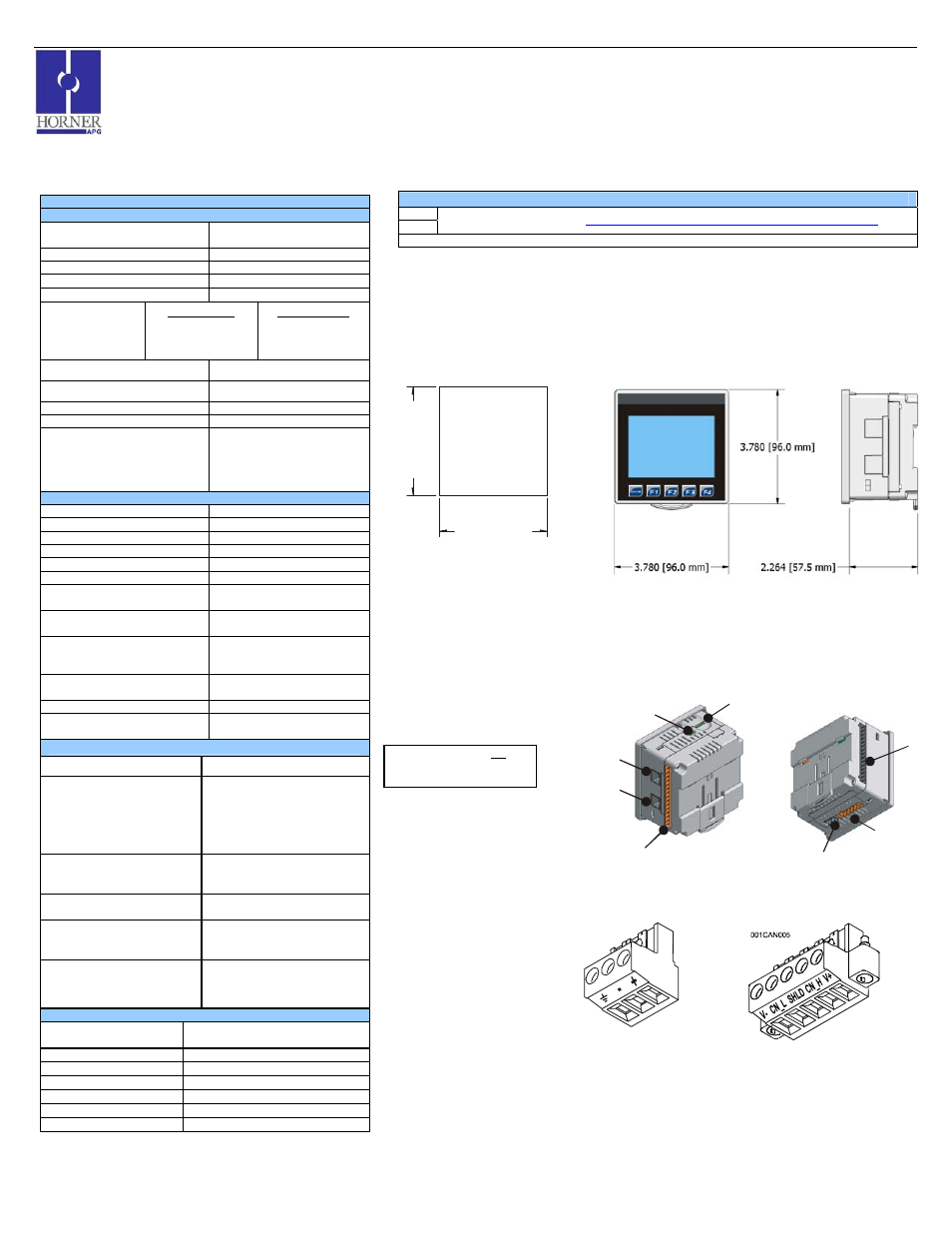

Horner APG XLt OCS HE-XT102-14 - Manual

MAN0867-01-EN Specifications / Installation
__________________________________________________________________________________________________________________________________________________________________
3/26/2009 Page 1 of 4 ECN # 956
1 Specifications 1 Specifications
HE-XT102-14 Specifications
Digital DC Inputs
Inputs per Module
12 including 4 configurable
HSC inputs
Commons per Module 1
Input Voltage Range 12 VDC / 24 VDC
Absolute Max. Voltage 35 VDC Max.
Input Impedance 10 k Ω
Input Current Positive Logic Negative Logic
Upper Threshold 0.8 mA -1.6 mA
Lower Threshold 0.3 mA -2.1 mA
Max Upper Threshold 8 VDC
Min Lower Threshold 3 VDC
OFF to ON Response 1 ms
ON to OFF Response 1 ms
HSC Max. Switching Rate
10 kHz Totalizer/Pulse,
Edges
5 kHz Frequency/Pulse,
Width
2.5 kHz Quadrature
Digital Relay Outputs
Outputs per Module 6 relay
Commons per Module 6
Max. Output Current per Relay 3 A at 250 VAC, resistive
Max. Total Output Current 5 A continuous
Max. Output Voltage 275 VAC , 30 VDC
Max. Switched Power 1250 VA, 150 W
Contact Isolation to XLE
ground
1000 VAC
Max. Voltage Drop at Rated
Current
0.5 V
Expected Life
(See Derating section for
chart.)
No load: 5,000,000
Rated load: 100,000
Max. Switching Rate
300 CPM at no load
20 CPM at rated load
Type Mechanical Contact
Response Time
One update per ladder scan
plus 10 ms
Thermistor Inputs, Medium Resolution
Number of Channels 4
Input Ranges
Input Impedance
(Clamped @ -0.5 VDC to 12
VDC)
10K OHMThermistor
Half Bridge
9.59K ohm pulled up to
4.8 VDC
Nominal Resolution
%AI at 10K Ohm
10 Bits
15,008 counts
Conversion Speed
All channels converted once
per ladder scan
Max. Error at 25 °C reading /
ambient
±0.5°F or ±0.3°C
Using specified linearization
in ladder program
Filtering
160 Hz hash (noise) filter
1-128 scan digital running
average filter
General Specifications
Required Power
(Steady State)
150 mA @ 24 VDC
Required Power (Inrush) 30 A for 1 ms @ 24 VDC
Primary Power Range 10 – 30 VDC
Relative Humidity 5 to 95% Non-condensing
Operating Temperature -10 °C to +60°C
Terminal Type Screw Type, 5 mm Removable
Weight 12 oz. (340.19 g)
XLT OCS Model: HE-XT102-14
12 Digital DC Inputs
4 10k Thermistors
6 Digital Relay Outputs
General Specifications
CE
UL
See Compliance Table at http://www.heapg.com/Pages/TechSupport/ProductCert.html
Note: The highest usable frequency is 65 KHz for the PWM output
2 Panel Cut-Out and Dimensions
Note: Max. panel thickness: 5 mm.
Refer to XLT User Manual (MAN0863) for panel box information and a handy checklist of requirements.
Note:
The tolerance to meet NEMA standards is ± 0.005” (0.1 mm).
3.
62
2 [9
2m
m
]
3.622 [92mm]
001XLE002
3 Ports / Connectors / Cables
Note
: The case of the XLT is black, but for clarity, it is shown in a lighter gray color.
To Remove Back Cover:
Unscrew 4 screws located
on the back of the unit.
Lift lid.
MJ1
(RS-232 / RS-485)
MJ2
(RS-232 / RS-485)
J1
I/O
Jumper
Memory Slot
001XLE029-R2
J2
I/O
Jumper
NET 1
(CsCAN)
Power
DIP
Switch
Power Connector
Power Up:
Connect to Earth Ground.
Apply 10 - 30 VDC.
Screen lights up.
Torque rating
4.5-7Lb-in
(0.50-0.78n-m)
CAN Connector
CAUTION: Do not
overtighten screws when
screwing the lid back on.
I/O Jumpers: (Not Shown):
I/O Jumpers (JP) are located
internally. To access, remove
back cover of unit.
Wiring Connectors (J1 / J2):
I/O Jumpers (JP1),
and DIP
Switches (RS-485) are
described in the DIP
Switches, Wiring and
Jumpers
section of this
document.
Memory Slot:
Uses Removable Memory
for data logging, screen
captures, program loading
and recipes.
Horner Part No.: HE-MC1
Serial Communications:
MJ1
: (RS-232 / RS-485) Use
for Cscape programming and
Application-Defined
Communications.
Use the CAN Connector when
using CsCAN network.
MJ2: (RS-232 / RS-485) Use
for Application-Defined
Communications.
