158 Continuous Access XP Journal operations with NAS Blade
To complete the RAID Manager XP configuration definition file:
1. Add the
HORCM_DEV
and
HORCM_INST
sections to a template for the RAID Manager XP configuration
definition file using the
mkconf.sh
command in RAID Manager XP.
2. Edit the file and create the RAID Manager XP configuration definition file.
You must perform these operations in each NAS package in CL1 and CL2 where the Continuous Access XP
Journal P-VOL is connected and in each NAS package in CL1 and CL2 that uses the S VOL. Therefore, you
must prepare a total of four RAID Manager XP configuration files, assuming one instance per NAS
package. For two instances, you need a total of eight configuration files.
In NAS Blade, you can define one or two RAID Manager XP instances per NAS package. To operate only
the Continuous Access XP Journal pairs in RAID Manager XP, you need one instance. To operate pairs
where Continuous Access XP Journal and Business Copy XP are cascaded, you need two instances.
The following section explains how to create a RAID Manager XP configuration definition file using the
NAS Blade system with LUs as an example (see Figure 72 ).

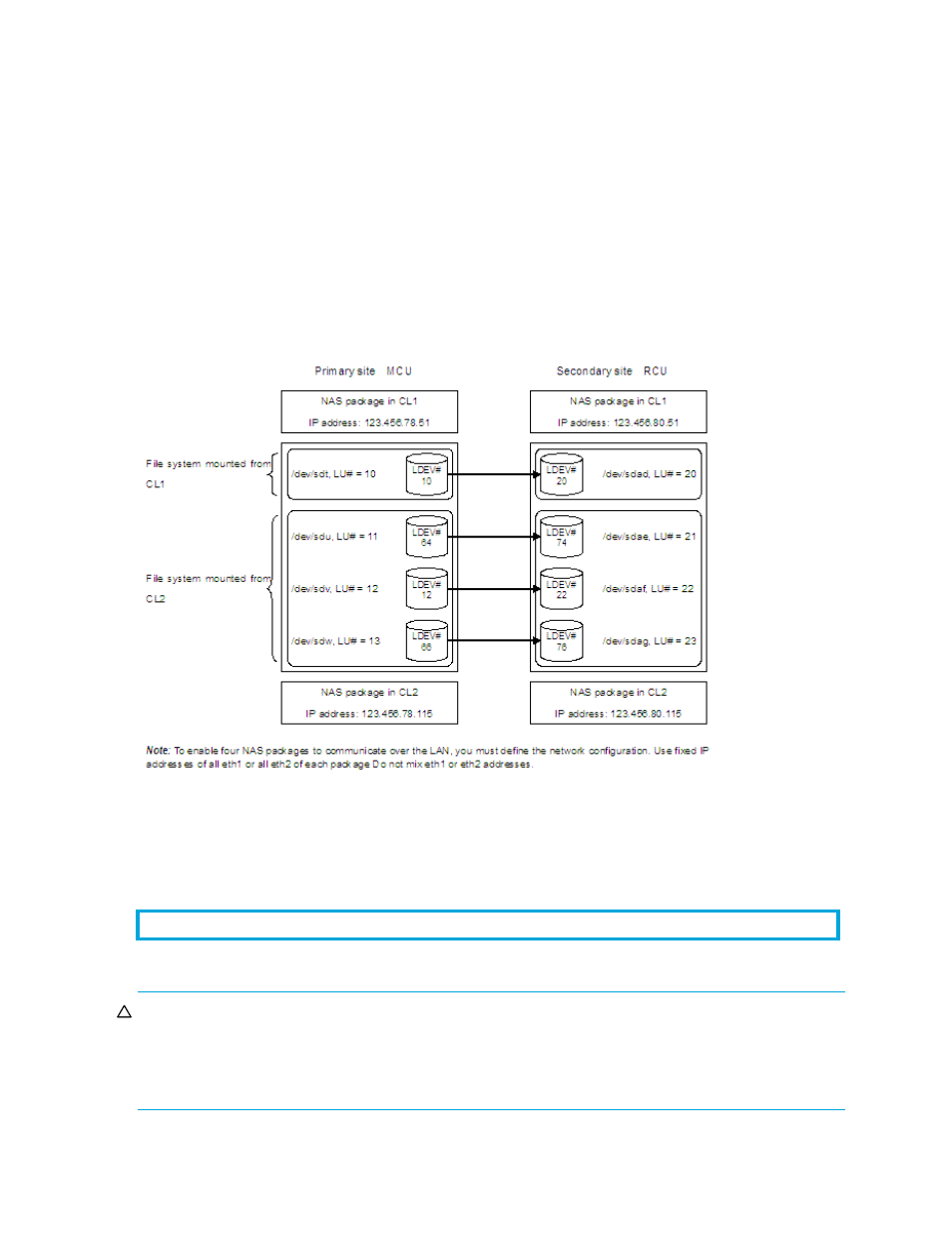

Figure 72 Example of configuring a pair LU
Adding the HORCM_DEV and HORCM_INST sections using the mkconf.sh command in RAID
Manager XP
Add the
HORCM_DEV
and
HORCM_INST
sections to the template of the RAID Manager XP configuration
definition file using the
mkconf.sh
command in RAID Manager XP.
Figure 73 Adding the HORCM_DEV and HORCM_INST sections (for Instance number 16)
CAUTION: If you execute the
mkconf.sh
command without specifying the
-a
option, the
HORCM_MON
and
HORCM_CMD
sections in the RAID Manager XP configuration definition file that are automatically
created when NAS Backup Restore is installed are overwritten. In this case, delete all lines above the
HORCM_MON
section, and change the entry service in the
HORCM_MON
section to an appropriate value
based on Table 29 .
$ cat /home/nasroot/horc_devfile | sudo mkconf.sh -gg Device Group Name -i 16 -a
