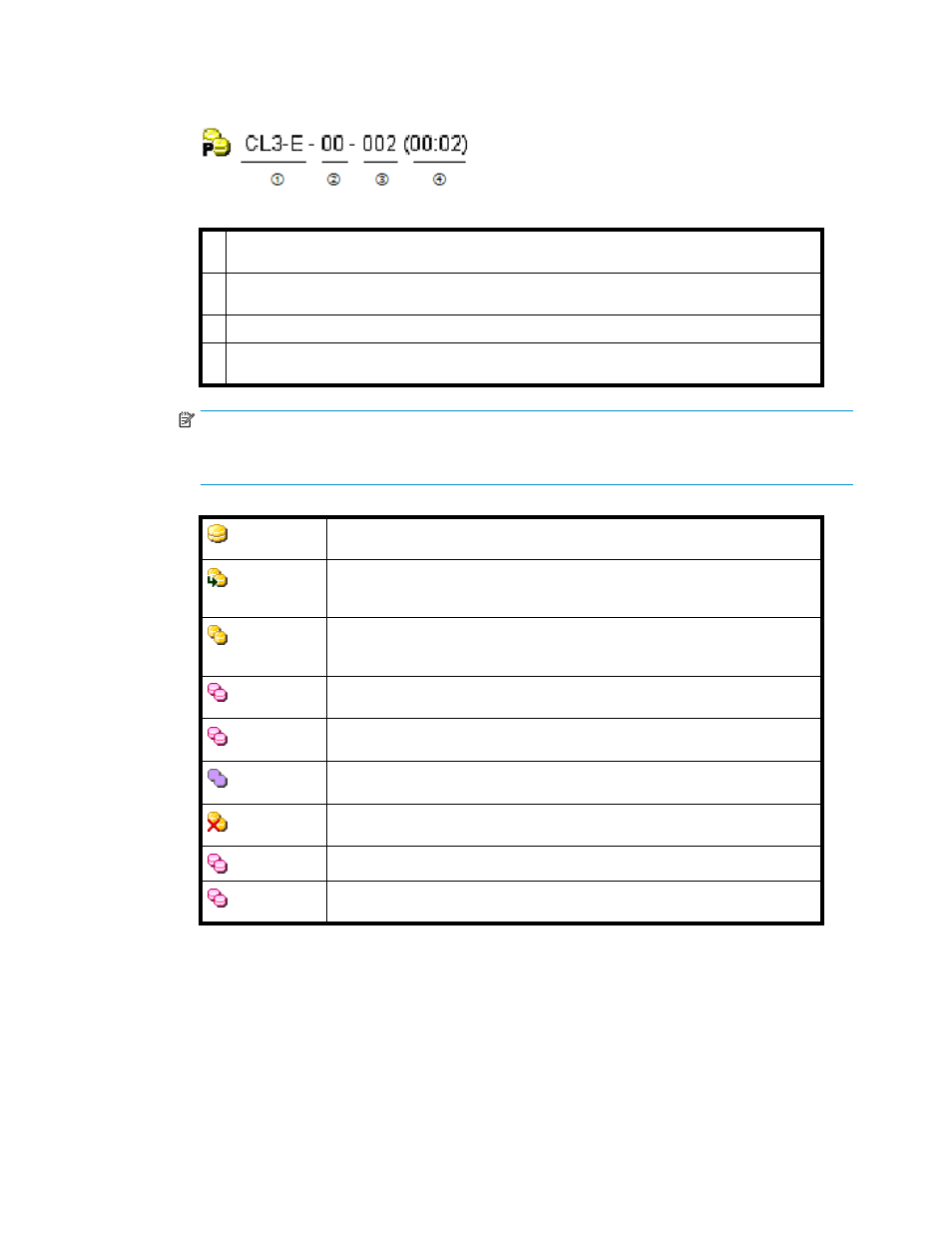

To the right of the icon appears information about an LU path, which is a path from hosts to the

logical volume.

Figure 57 Information in Port-G-ID-LUN column on the Pair Operation pane

1 Port that receives read and write requests from hosts. In

Information in Port-G-ID-LUN column on

the Pair Operation pane

, read and write requests are sent to the logical volume via the CL3-E port.

2 Group number of the host group or iSCSI target. A host group or iSCSI target is a group of hosts

that issue read and write requests.

3 LUN (logical unit number).
4 Logical volume ID. The number on the left of the colon is a CU number. The number on the

right of the colon is an LDEV number.

NOTE:

If a logical volume is an external LU, # appears after the LDEV number. For more information

about external LUs, see the

HP StorageWorks External Storage XP user guide

.

• Status: Status of volume pairs.

SMPL

The volume is not currently assigned to a pair. When the initial copy is started

by a paircreate operation, the volume status changes to COPY.

COPY

An initial copy operation is in progress. Data in the primary data volume is not

synchronized with data in the secondary data volume. When the initial copy is

complete, the status changes to PAIR.

PAIR

The volume is paired with another volume. The two volumes are fully

synchronized. All updates from the host to the primary data volume are

duplicated at the secondary data volume.

PSUS

You split the pair (pairsplit-r) or deleted the pair from the secondary array

(pairsplit-S). The primary and secondary data volumes are not synchronized.

PSUE

The pair was split by the primary or secondary array due to an error or failure.

The primary and secondary data volumes are not synchronized.

Suspending

The primary and secondary data volumes are not synchronized. This pair is in

transition from the PAIR or COPY status to the PSUS/PSUE status.

Deleting

The primary and secondary data volumes are not synchronized. This pair is in

transition from the PAIR, COPY, or PSUS/PSUE status to the SMPL status.

HOLD

A Continuous Access XP Journal pair for the delta resync operation is created.

HLDE

An error occurred with the Continuous Access XP Journal pair for the delta

resync operation.

• JNLG-MirrorID: Journal group number and mirror ID. The number on the left of the hyphen (-)

is a journal group number. The number on the right of the hyphen is a mirror ID.
This column is blank if the volume in the local array is not a primary or secondary data volume.

• S/N(CTRLID): Remote array's serial number and controller ID. The controller ID is enclosed

by parentheses.
This column is blank if the volume in the local array is not a primary nor secondary data volume.
