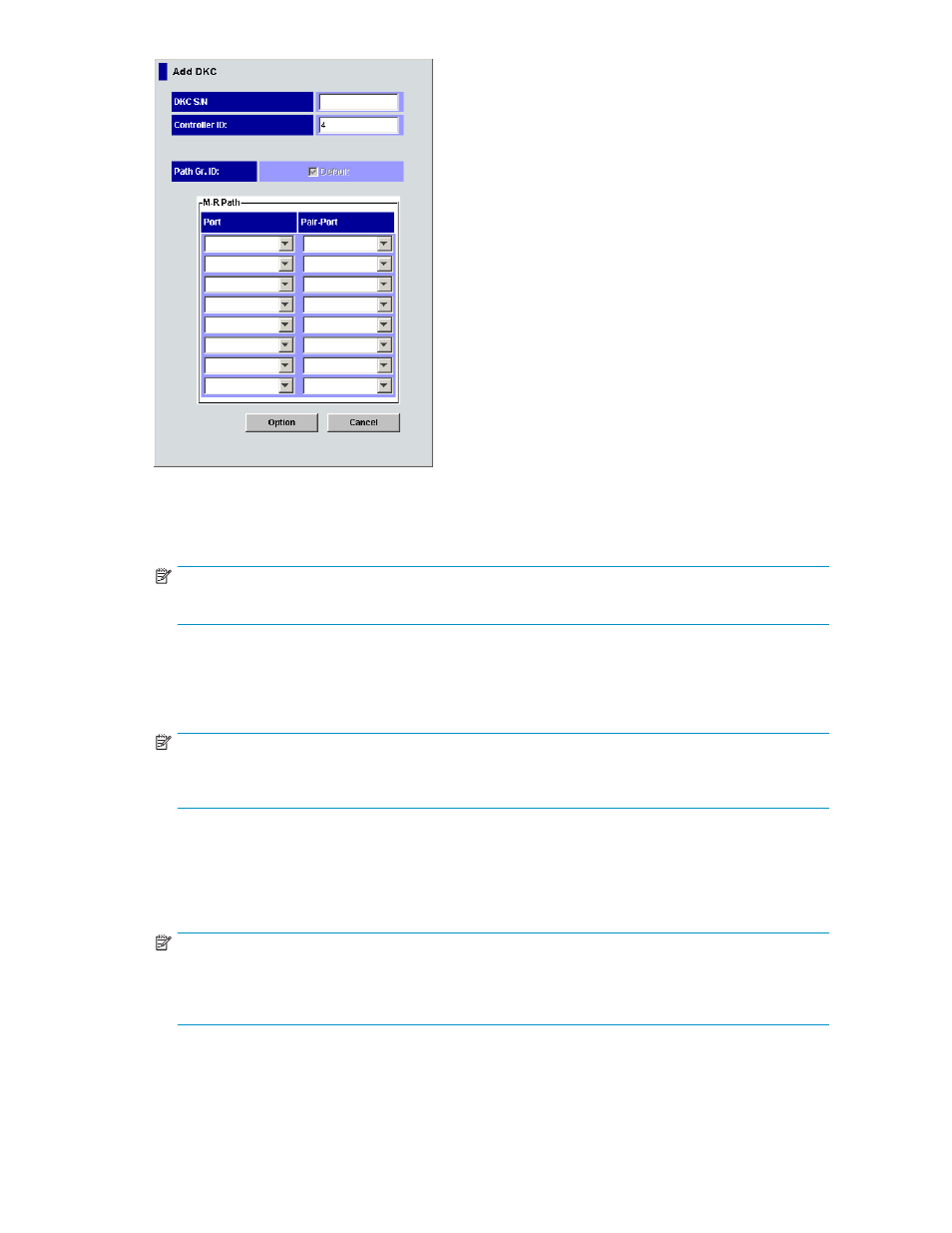

Figure 43 Add DKC pane

DKC S/N: Remote array's five-digit serial number.

Controller ID: Remote array's controller ID (that is, array family ID).

NOTE:

The controller ID for an XP12000/XP10000 is 4.

Path Gr. ID: Enter the path group ID. Path group IDs are used for identifying groups of logical

paths. One path group can contain up to eight logical paths.
Path group IDs are within the range of 0-FF (hexadecimal). If you select Default, the default path

group IDs is set.

NOTE:

In the current version, you cannot enter path group IDs. Also, you cannot clear the Default check

box. The number of path group per one remote array is always 1.

M-R Path: Logical paths from initiator ports on the local array to RCU target ports on the remote

array.
• Port: Displays a list of initiator ports on the local array. Select an initiator port from this list.
• Pair-Port: Displays a list of all ports on the remote array. Select an RCU target port on the

remote array from this list.

NOTE:

When specifying a port, use the keyboard to enter the port number. When entering the port number,

you can abbreviate the port number to two characters. For example, you can enter 1A instead of

CL1-A. You can use uppercase and lowercase letters.

Option: Displays the DKC Option pane (see

Changing options for logical paths and arrays

).

Cancel: Cancels settings made on the Add DKC pane, and closes the pane.

Continuous Access XP Journal user guide

107
