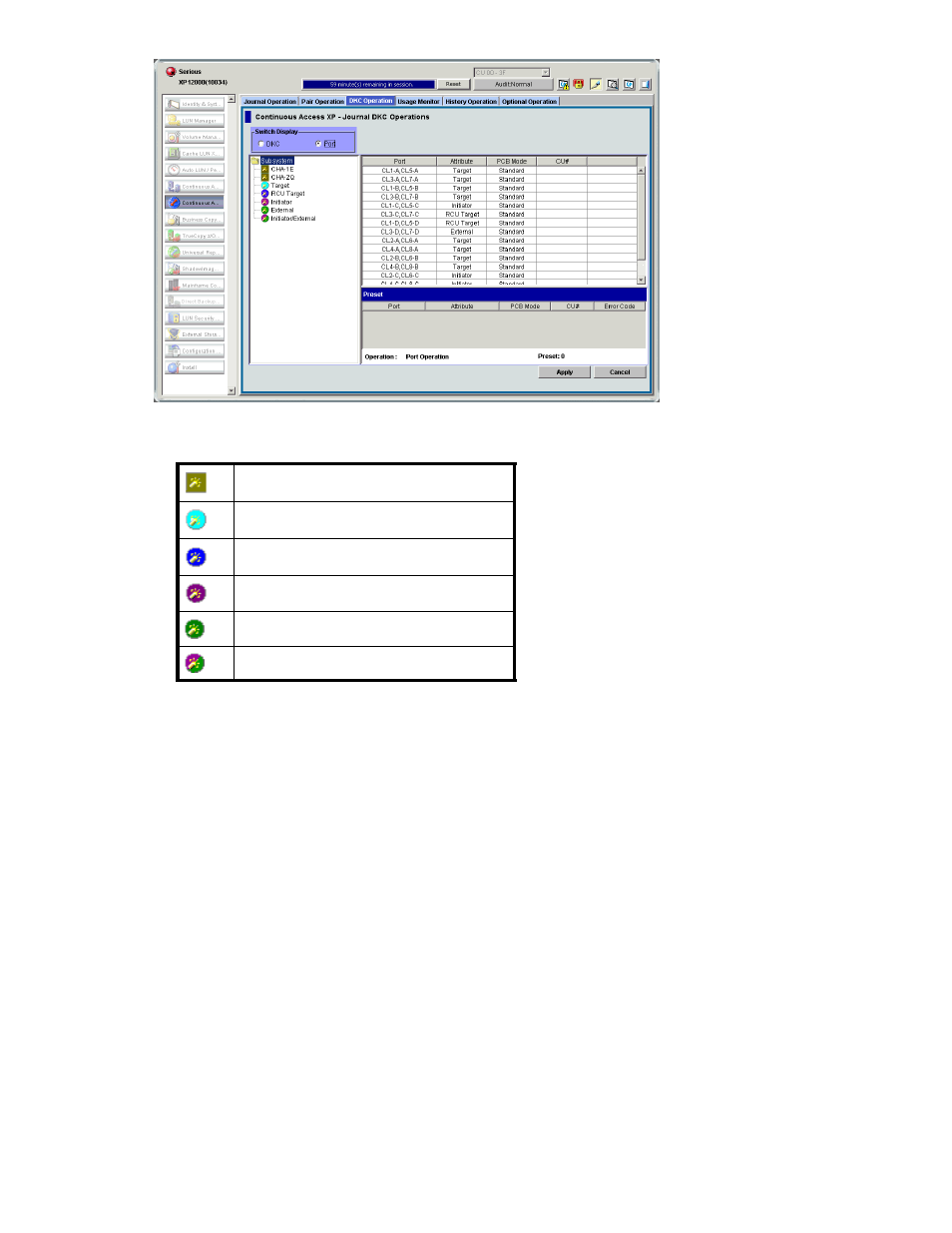

Figure 42 DKC Operation pane, Port option
•
Tree: Lists channel adapters and ports on the local array.
Channel adapter (Fibre Channel interface)
Target port
RCU target port
Initiator port
External port
Port Initiator/External MIX mode
•
List: Displays ports on the local array.
• Port: Port number.
• Attribute: Port attribute (initiator, target, RCU target, external, or initiator/external).
• PCB Mode: Port mode. The mode is either Standard, High, or MIX.
• CU#: Currently, displays nothing.
• Error Code: Error code.
Configuring port attributes
The administrator at the primary and secondary sites must configure ports on the primary and secondary
arrays in the following ways:
•
The administrator at the primary site must configure target ports, initiator ports, and RCU target
ports on the primary array.
•
The administrator at the secondary site must configure initiator ports and RCU target ports on
the secondary array.
Ports on the array have the target attribute by default. If you are configuring an array, determine which
ports should be initiator or RCU target ports, and change the ports' attributes from target to initiator or
RCU target.
