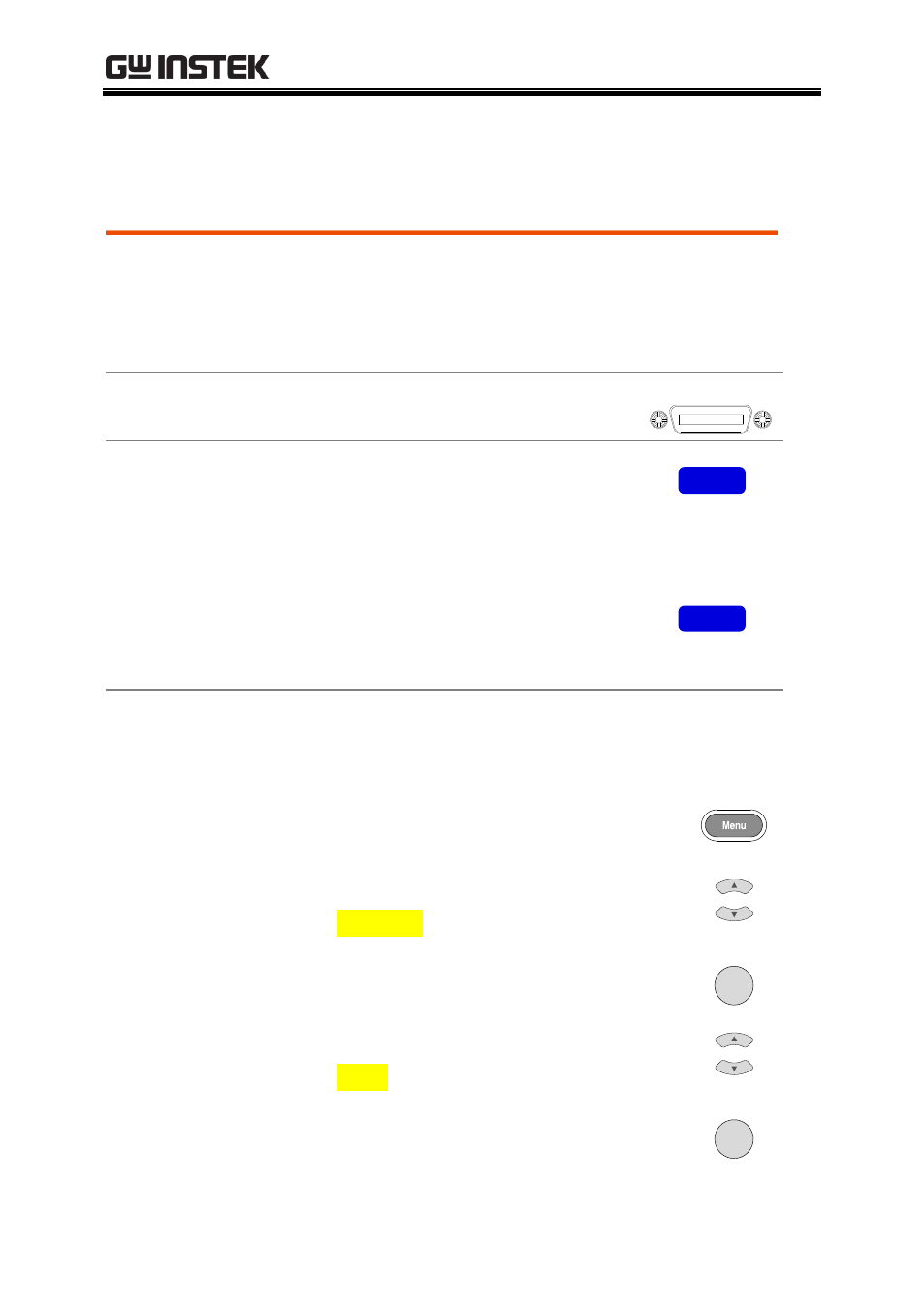

REMOTE CONTROL
69
GPIB
Description The GPIB remote control can be set from the
interface menu. The communication data format,
compatibility settings and and address must all be
configured before using GPIB remote control.
Interface Rear panel GPIB port.
Connection When the unit has been successfully
connected via GPIB, GPIB will
appear in the status bar in red. The
panel key will also be locked. GPIB
The front panel keys are
automatically locked when the unit
is in remote mode.
LOCK
Communication
Data Format There are four data formats to select from:
Exponential, 2DPS, 3DPS and 4DPS.
Steps A. Press the Menu key to enter the main
menu.
B. Use the up and down arrow keys to
select Interface.
C. Press Enter to enter the Interface menu.

D. Use the up and down arrow keys to
select GPIB.
E. Press Enter to enter the GPIB menu.

