OVERVIEW

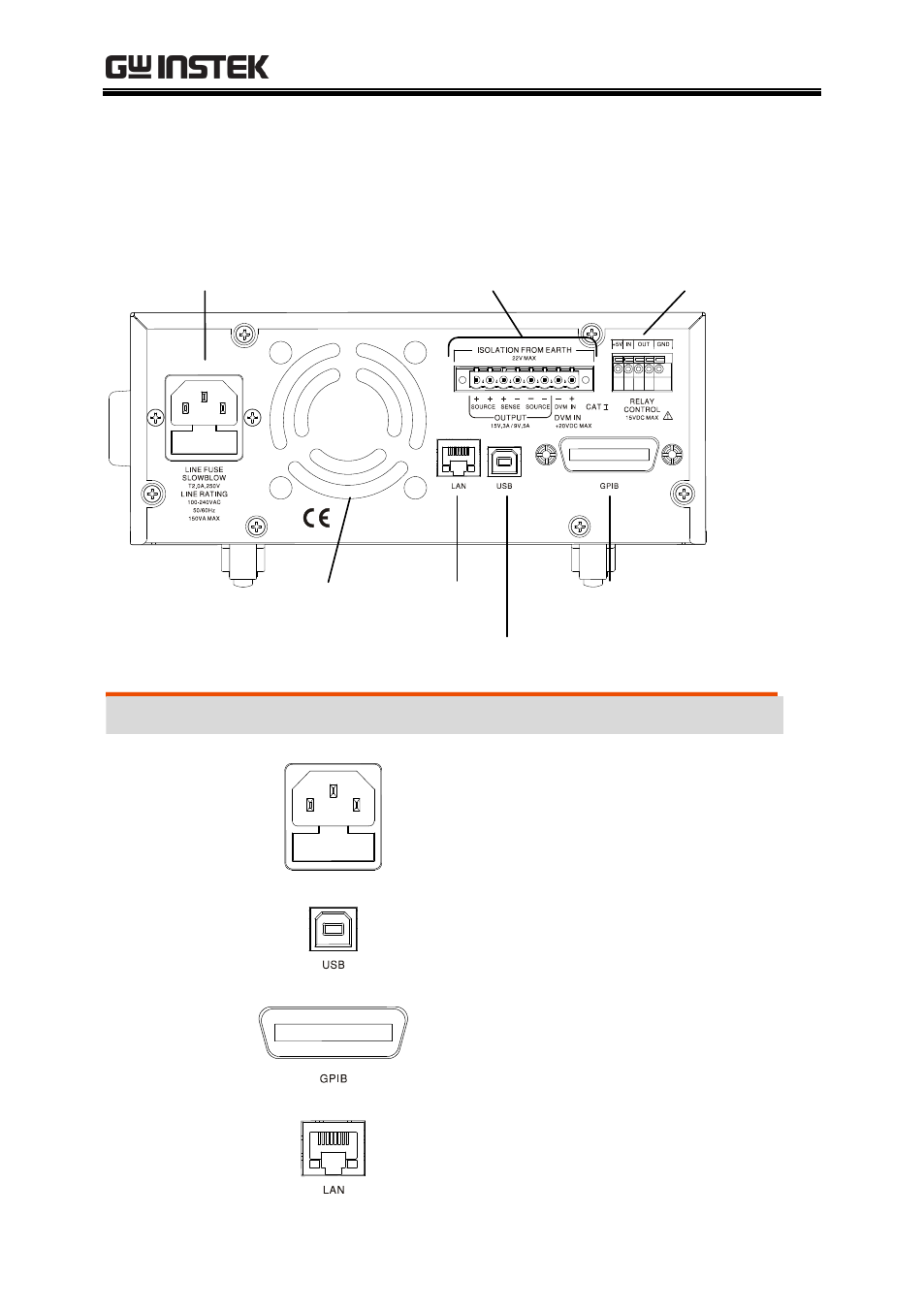

Rear Panel

AC power socket

and fuse

Rear panel outputs and

DVM inputs

External

control port

Lan port

USB port

GPIB port

Heat sink fan

Terminals

AC input
socket and
line fuse

The AC input:
90~264VAC, 50Hz/60Hz
Fuse: 2A slow-blow type. See page

for details.

USB port

USB device port for remote
control. See page

for details.

GPIB port

GPIB slave port for remote control.
Abides to IEEE488.1 (SCPI)
protocol. See page

for details.

LAN port

LAN port for remote control. See
page

for details.
