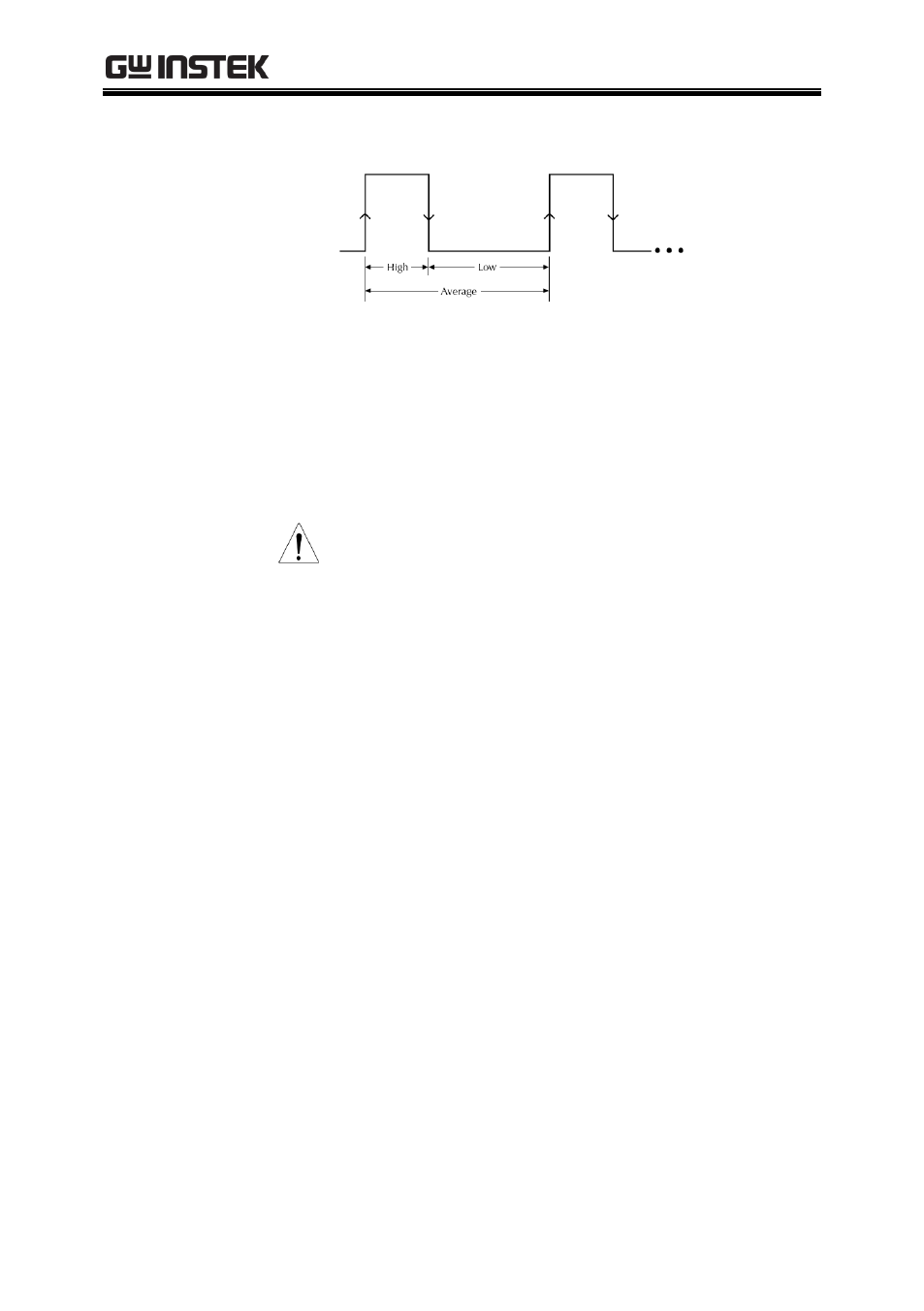

The high and average measurements are triggered
by the rising edge of the pulse current are
performed for the time specified for the
measurement.
Low measurement is triggered by the falling edge
of the pulse current.
Note: Pulse current measurement is only valid up
to 5A.
Parameter
Description IntTime
 Integration Time.
 The integration measurement time
can be set to automatic or to one of
the manual settings (High Time,
Low Time, Aver Time).
 When the integration
measurement time is set to
automatic mode, the system will
measure the peaks and troughs of
the pulse current and will
automatically set an appropriate
intergration time. The average
integration time is the time of all
the accumulated peaks and
troughs. After the setting the
integration time to automatic, the
setting will apply to all subsequent
pulse measurements, unless the
automatic integration mode is
applied again or the integration
time is manully set. The automatic
