PPH-1503 User Manual
28

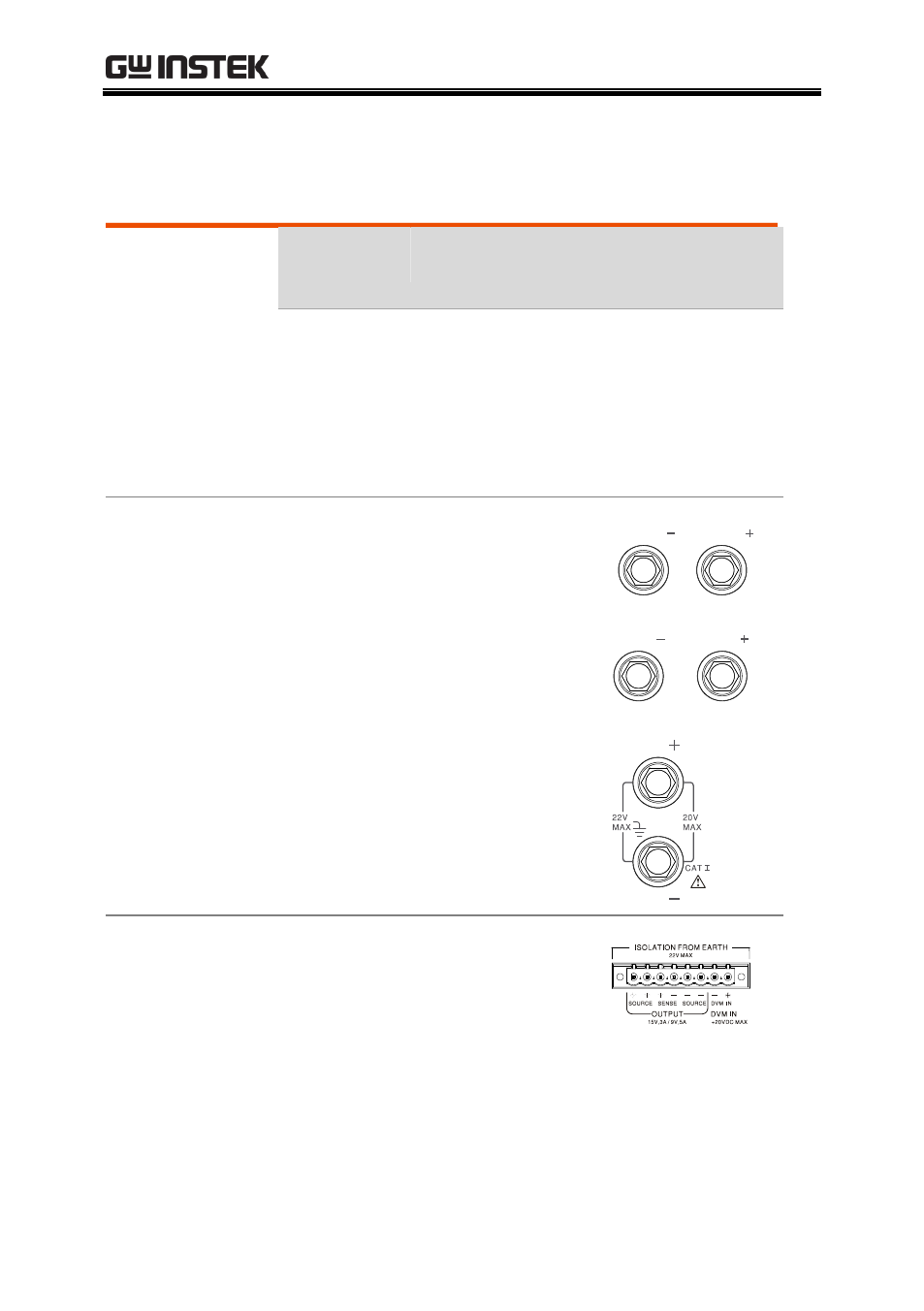

DVM and Load Connection
Recommended
Cables Model Specification Usage
GTL-117 10A Front panel DVM input
GTL-204A 10A Front panel Source
terminal
GTL-203A 3A Front panel Sense
terminal
Front panel
wiring Use the GTL-204A cables for the
front panel source connections.  
Use the GTL-203A cables for the
sense connections.  
Use the GTL-117 cables for the
DVM connections. 

Rear panel
connections Rotate the screws counter
clockwise to loosen the ports.
Insert the wires into the
appropriate terminal according
to the labels printed under the
terminals.
