PSW Series User Manual
86
Note
Configuration settings can be checked for both the
master and slave units by pressing the Function
key.
Master-Slave
Operation Only operate the power supplies in series if the
units are configured correctly.
1. Turn on the master and slave unit. The slave
unit will only show the combined voltage of
both units while the master unit will show both
the combined voltage and the current of both
units.

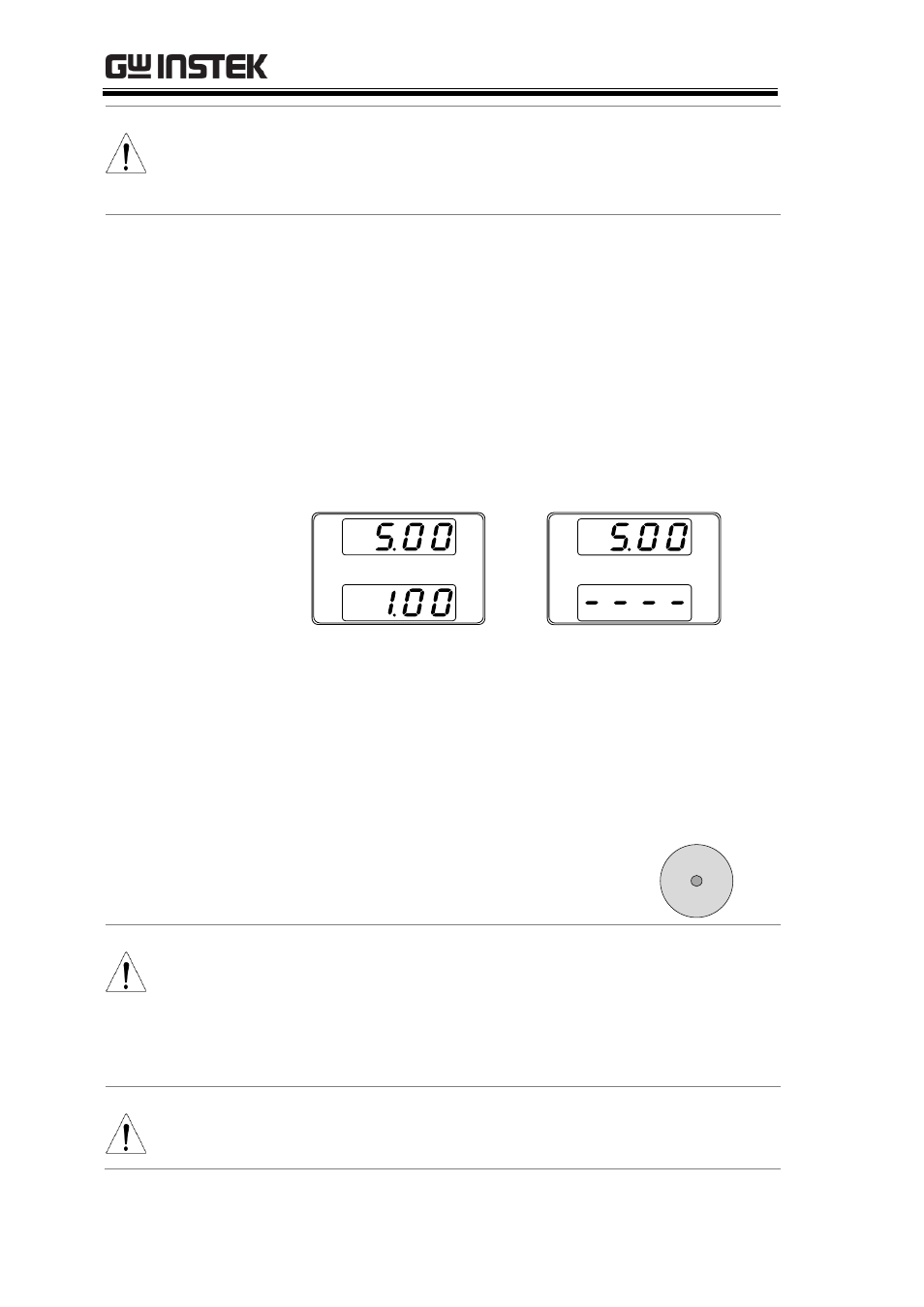

Master unit Slave unit
V
A
V
2. Operation of all units is controlled
via the master unit. Operation of
the master unit is the same as for a
single unit. Please see the basic
operation chapter for details.
Page 57
3. Press the Output key to begin. Output
CAUTION
Only operate the power supplies in series if using
units of the same model number. 250V and 800V
models do not support series operation!
Only a maximum of 2 units can be used in series.
Note
The panel controls are disabled on slave units,
including the output key.
