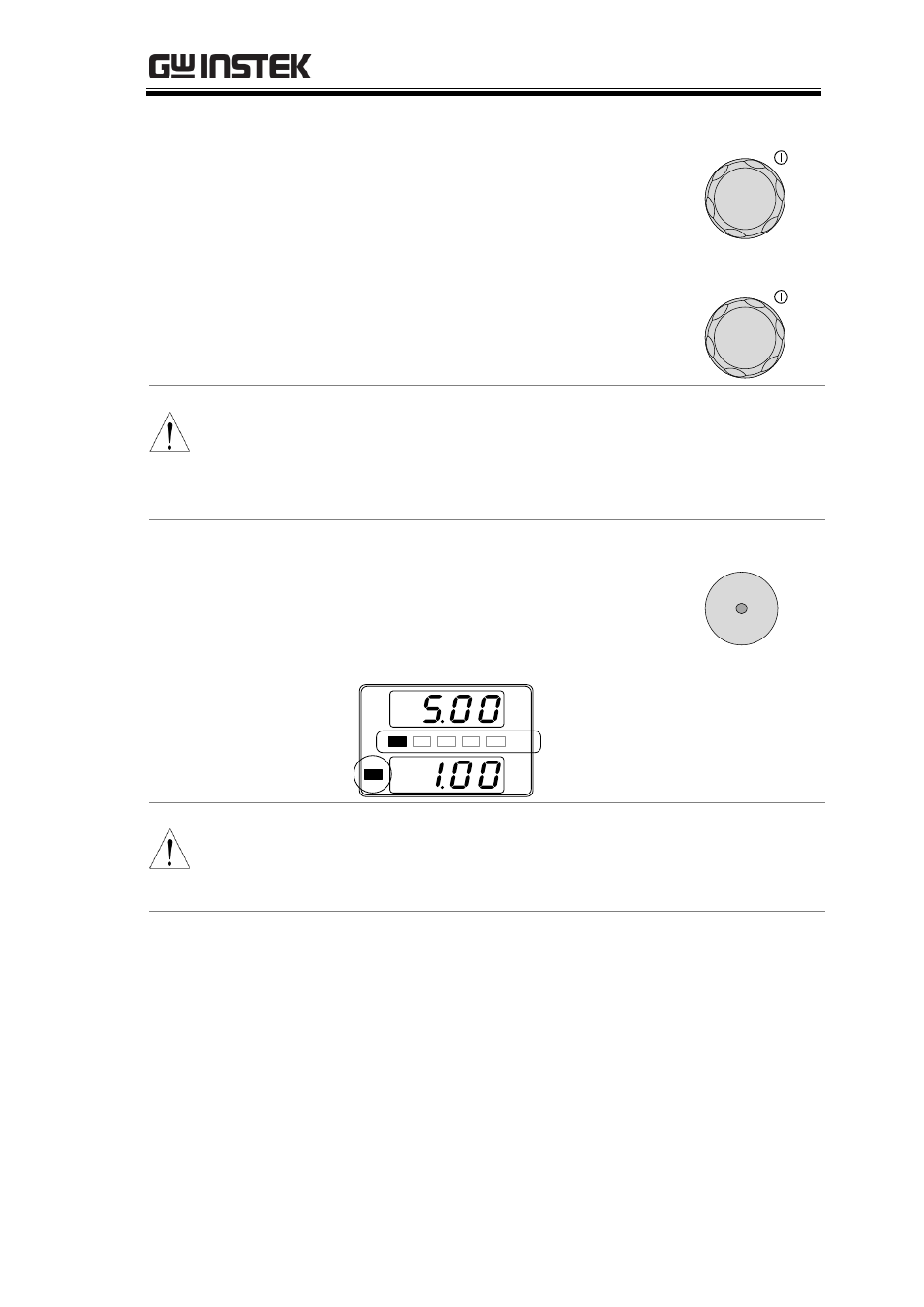

background image

OPERATION

65

8. Use the Voltage knob to set the

voltage limit (crossover point).

Voltage

9. Use the Current knob to set the

current.

Current

Note

Notice the Set key becomes illuminated when
setting the current or voltage. If the Voltage or
Current knobs are unresponsive, press the Set key
first.

10. Press the Output key. The Output

key becomes illuminated.

Output

% W

V

A

C C

% W

20

40

60

80

100

CC and the Power Bar

will become illuminated

(bottom left & center)

Note

Only the current level can be altered when the
output is on. The voltage level can only be changed
by pressing the Set key.

For more information on the Normal Function
Settings (F-00 ~ F-61, F-88~F-89) see page 102.
