OPERATION
43
5. Choose a suitable crimp for the terminals.
6. If using voltage sense, remove the
sense terminal joining plates and
connect sensing wires to the
load(s).
Page 68
7. Connect the positive load cable to the positive
output terminal and the negative cable to the
negative output terminal.
8. Reattach the output terminal
cover.
Page 44

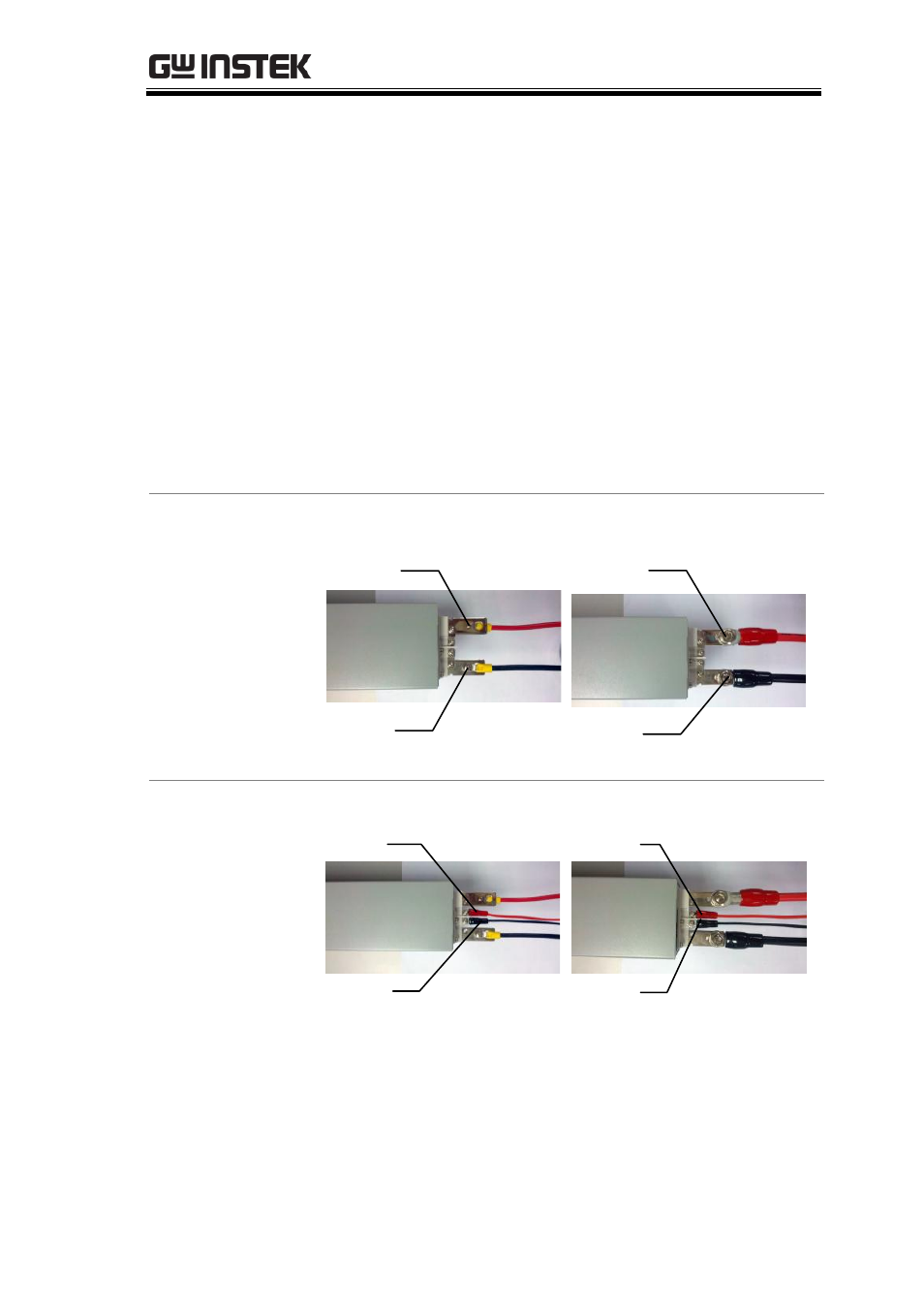

Connection with
local sense wiring Using M4 screws
Negative
potential
Positive
potential
Using M8 bolts
Negative
potential
Positive
potential
Connection with
voltage sense
wiring Using M4 screws
Sense +
Sense -
Using M8 bolts
Sense +
Sense -
