Setting Normal Function Settings

The normal function settings (F-01~F-61, F-
88~F-89) can be easily configured with the
Function key.

Ensure the load is not connected.

Ensure the output is off.

Note

Function setting F-89 (Show Version) can only be
viewed, not edited.

Configuration settings F-90~F-95 cannot be edited
in the Normal Function Settings. Use the Power
On Configuration Settings. See page 114 for
details.

Steps

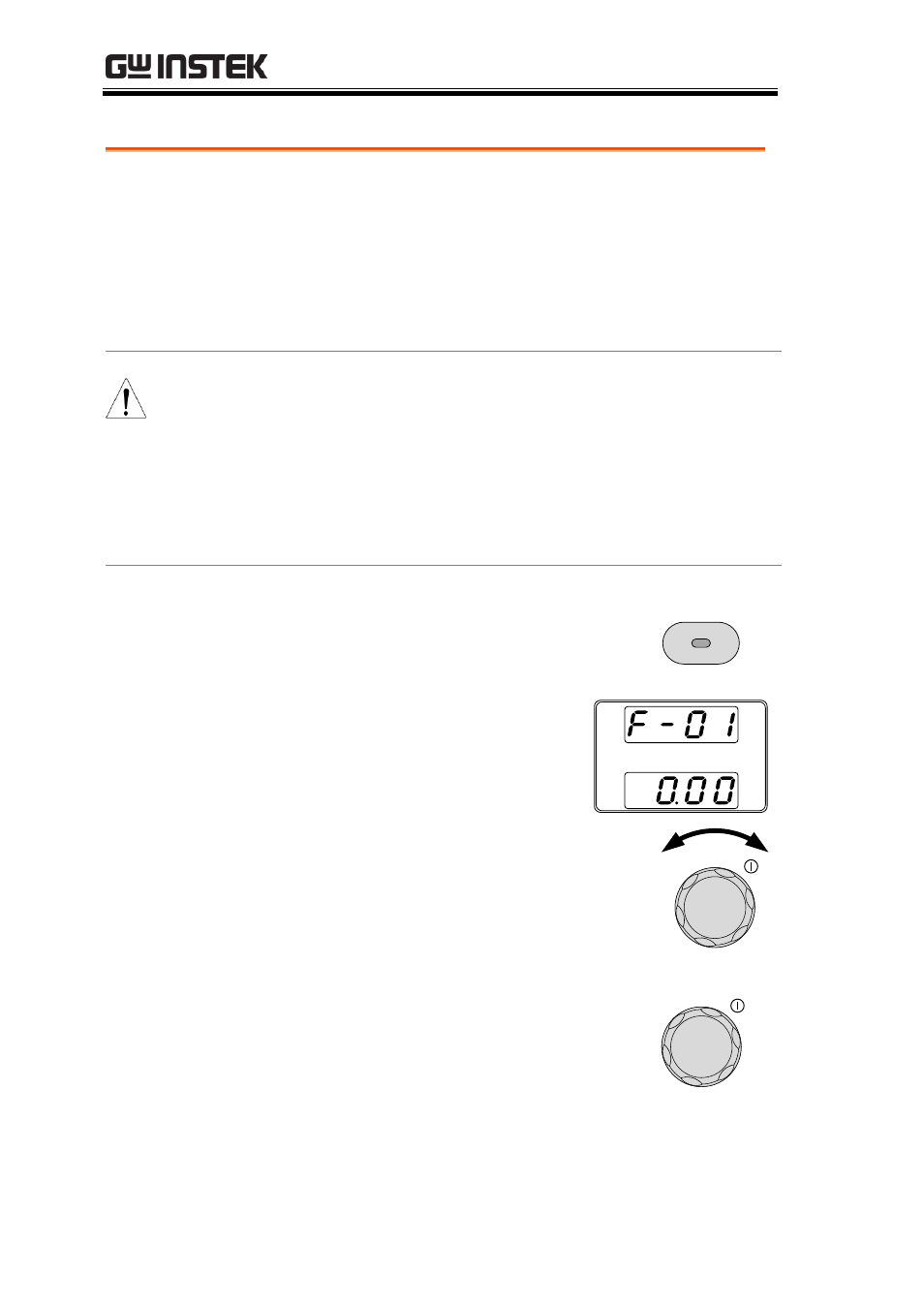

1. Press the Function key. The

function key will light up.

Function

2. The display will show F-01

on the top and the
configuration setting for
F-01 on the bottom.

3. Rotate the Voltage knob to change

the F setting.

Voltage

Range

F-00~ F-61, F-88~F-89

4. Use the Current knob to set the

parameter for the chosen F setting.

Current
