ANALOG CONTROL
133
Remote Monitoring
The PSW power supplies have remote monitoring support for
current and voltage output. They also support monitoring of
operation and alarm status.
 External monitoring of output voltage and current → from page
133
 External monitoring of operation mode and alarm status → from
page 135
External Voltage and Current Monitoring
Background The MIL 26 pin connector is used to monitor
the current (IMON) or voltage (VMON) output.
An output of 0~10V represents the voltage or
current output of 0~ rated current/voltage
output.
 IMON = (current output/full scale) × 10
 VMON = (voltage output/full scale) × 10
External voltage and current monitoring
doesn’t need to be enabled in the configuration
settings.

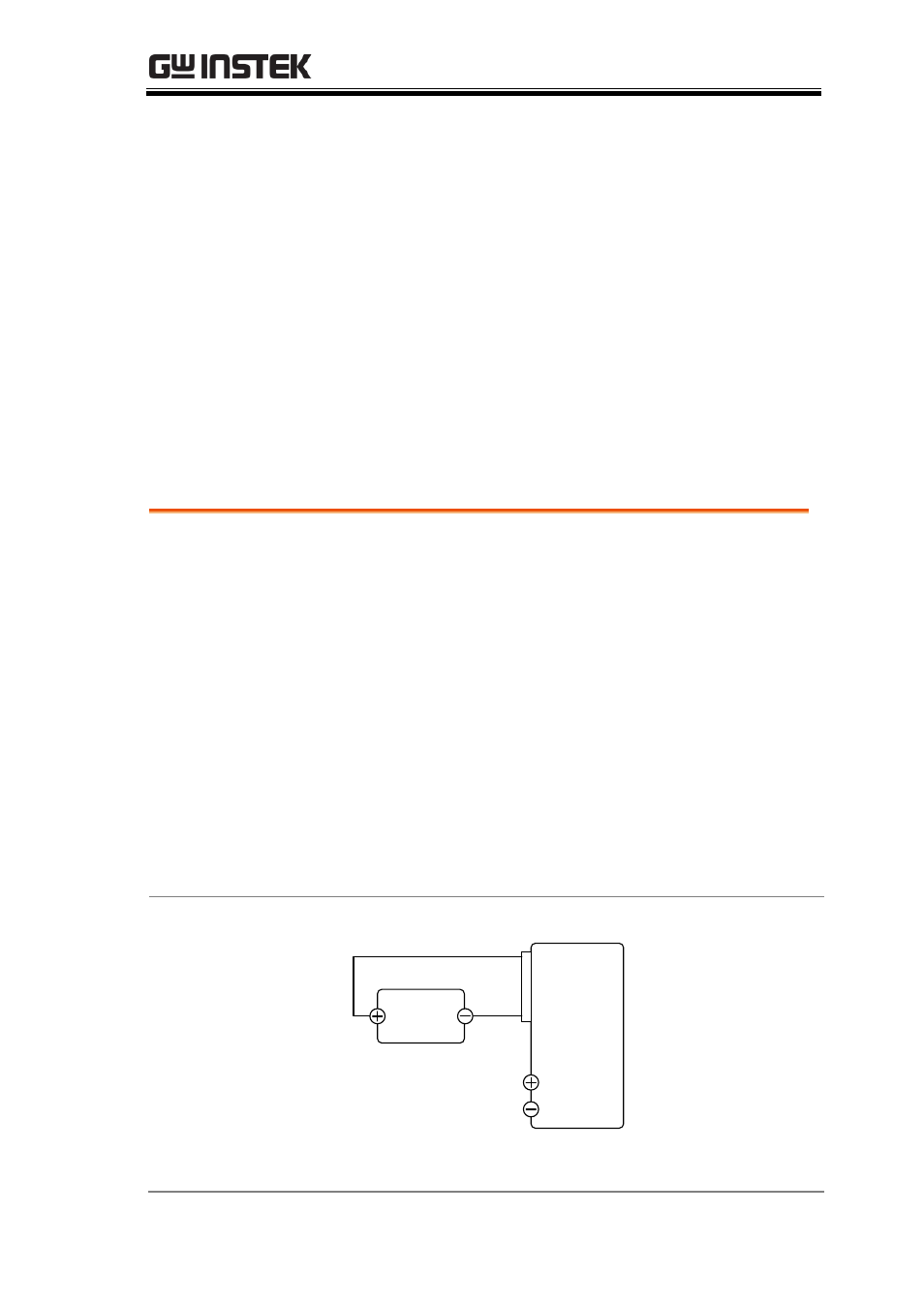

VMON
Connection
PSW
DMM Analog
connector
16
10
Output
Terminal
V MON
0
→
10V
 Pin16 → Neg (-)
 Pin10 → Pos (+)
