A-3
IM 11B03G03-03E

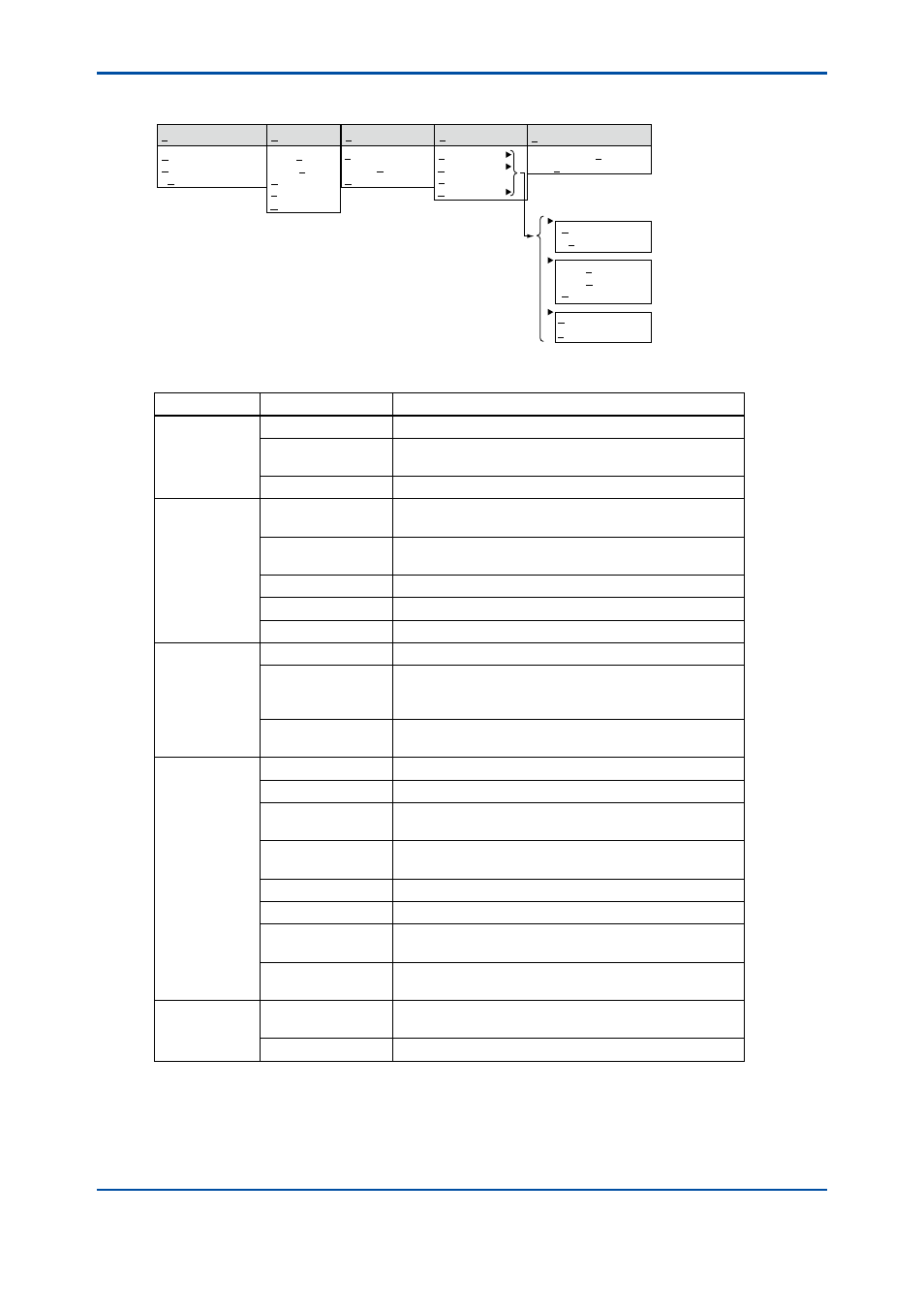

n Chromatogram Window
File
Save Chrom.
Continuous Saving
Exit Alt+F4
Scale
Zoom In
Zoom Out
Part Zoom
Full Disp
Auto Scale
Graph
Pen Select
Timing Mark
Temp./Press. Disp.
Options
Grid
Snap Shot
Cursor Pos.
Peak# Disp.
Help
Chromatogram Contents
Help Topics
Snap 1
Snap 2
Clear
On the Chromatogram
Under the Chromatogram
ON
OFF
F03.ai
Menu Name Command Name Function
File Save Chrom. Saves an on-screen chromatogram to the hard disk.
Continuous Saving Enables/Disables the automatic saving of chromato-
grams.
Exit Exits the Chromatogram window.
Scale Zoom In Enlarges both the X- and Y-axis scales in single-step
increments.
Zoom Out Reduces both the X- and Y-axis scales in single-step
increments.
Part Zoom Zoom in the area selected with the mouse.
Full Disp Brings the entire range of a chromatogram into view.
Auto Scale Switches Auto-scale on/off.
Graph Pen Select Correlates chromatograms with their colors for display.
Timing Mark Determines whether to show or hide the information
about the Peak No., Peak On/Off and Gate On/Off data
items for each chromatogram.
Temp./Press. Disp. Selects the chromatogram for which temperature/
pressure data are shown.
Option Grid - ON Shows the grid in the Closeup window.
Grid - OFF Hides the grid in the Closeup window.
Snap Shot - Snap 1 Saves the currently open Chromatogram window in
memory.
Snap Shot - Snap 2 Saves the currently open Chromatogram window in
memory.
Snap Shot - Clear Erases the window data saved as Snap 1 and Snap 2.
Cursor Pos. Turns on or off the display of the cursor position.
Peak# Disp.- On
the chromatogram
Shows the peak number at the top of a chromatogram.
Peak Disp.- Under
the chromatogram
Shows the peak number at the bottom of a
chromatogram.
Help Chromatogram
Contents
Shows the Help contents of the Chromatogram window.
Help Topics Shows a Help topic appropriate for a typed-in keyword.
4th Edition : Mar. 21, 2012-00
