<3. Analyzer Operation Window>
3-5
IM 11B03G03-03E
3.2 Layout of Analyzer Operation Window
The Analyzer Operation window is the parent window in the Maintenance Terminal. The window,
updated in one-second cycle, indicates the latest operating status and allows you to specify the
operation mode and others.
n Names of Main Areas

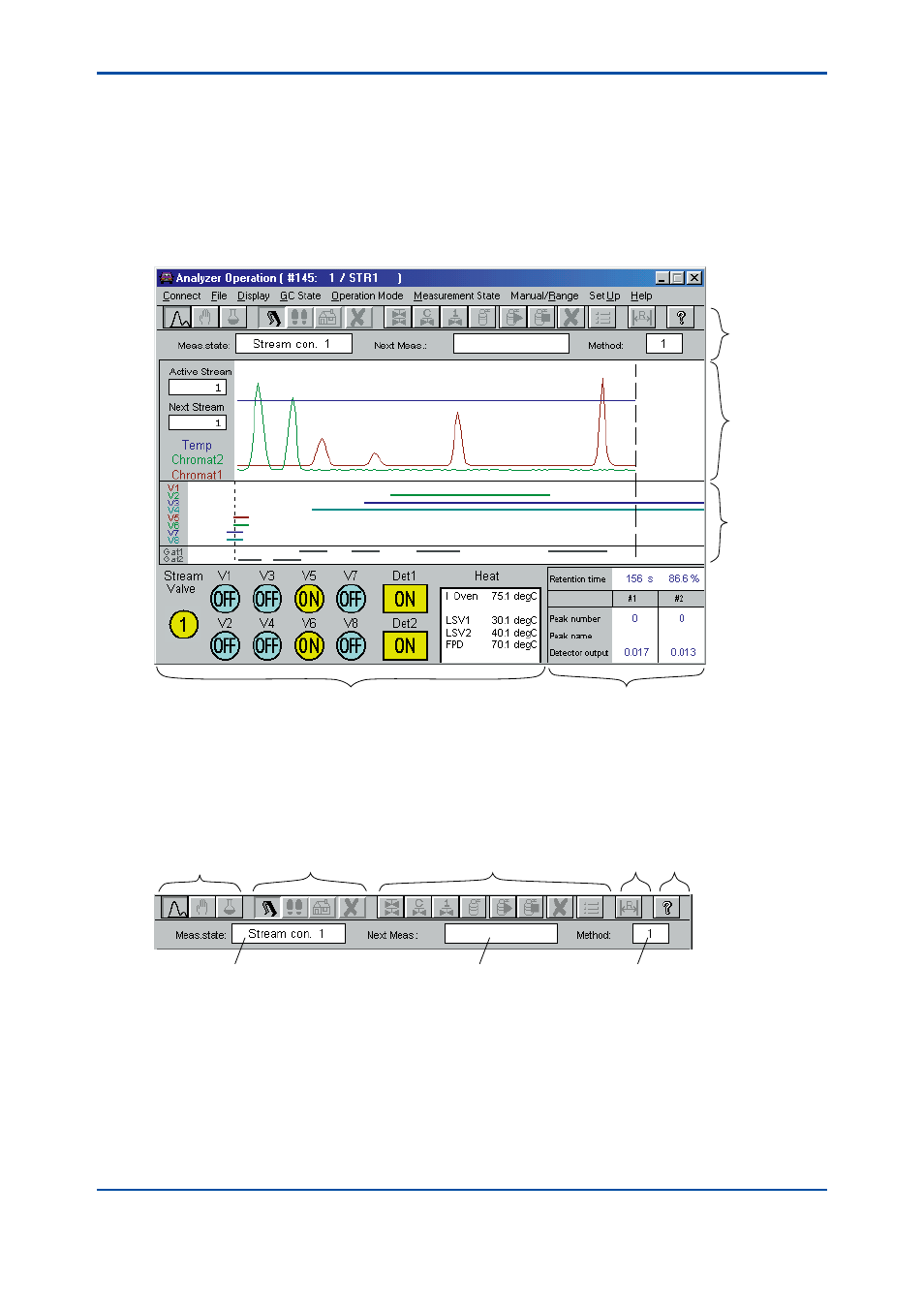

The following figure describes the names of the main areas of the Analyzer Operation window.
F0306.ai
Operation status
display ribbon
Chromatogram
display area
Timing dispay
area
Valve display/control area Data display area
n Operation Status Ribbon
This ribbon is a tool used to monitor and control the current operating status of the analyzer.
l Ribbon Layout
F0307.ai
Measuring state
e d c b a
Next measuring Method
a: Status button
"Process" status
"Manual" status
"Lab" status
b: Operation mode button
"Run" mode
"Pause" mode
"Stop" mode
"Cancel"
c: Measuring status button
"Stream sequence"
"Stream (cont)"
"Stream (1cycle)"
"Cal(Val)"
"Cal(Val) start"
"Cal(Val) end"
"Cancel"
"Cal(Val) method"
d: Range change button
e: Help indicate button
4th Edition : Mar. 21, 2012-00
