1
IM 11B03G03-03E
Installing the Maintenance Terminal
This chapter describes the installation of the Maintenance Terminal (GCMT) in the
personal computer system being used. This installation assumes that your PC system
is already in the ready state under the following conditions and also that you have some
knowledge of how to use the system.
n System Configuration
l Software conditions
Check that the software meets the following conditions:
Microsoft’s Windows 7 Professional 32bit Service Pack 1 or
Windows Vista Business Edition or
Windows XP Professional Service Pack 3
l Hardware conditions
Before installing GCMT, check that the hardware meets the following conditions:
• Models supported: IBM PC or computable machine that can run Microsoft Windows and for
which Ethernet is available
OS Windows 7, Windows Vista Windows XP
CPU 1 GHz or better Pentium II 350 MHz or better
HDD
15 GB or more for OS
10 GB or more for application
128 MB or more
RAM At least 1 GB At least 20 MB
Display
680 x 480 VGA or higher,
and be viewable with equal to or more than 256 colors
• For the hard disk, a data storage capacity should be secured separately according to your
PC system format, in addition to the capacity for the program.

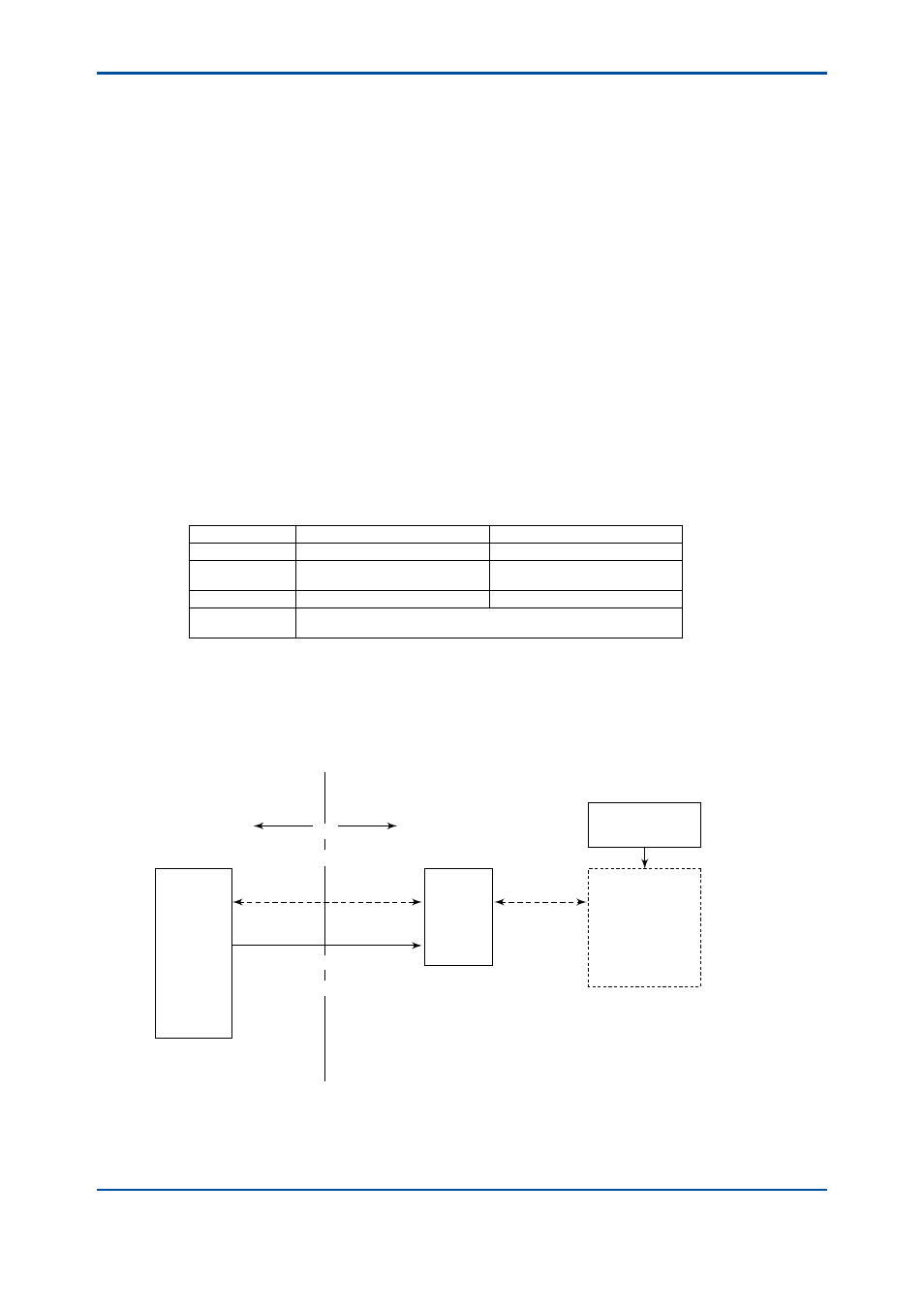

• Communication function: Make sure that the standard serial communication port is
connected to the analyzer via the communication converter (Model K9404LA provided with
a feature for maintaining the explosion-proof capabilities)-see the figure below.
K9404LA
GCMT
Personal computer
Software package
Field Instrument room
GC1000
Mark II
analyzer
RS-422
(up to 1 km)
RS-232C
(up to 15 m)
Communication
converter
Serial
communication
Serial
communication
Power-off signal
RS-422/RS-232C converter provided
with a feature for maintaining
explosion-proof capabilities
Installation
F01.ai
4th Edition : Mar. 21, 2012-00
