<3. Analyzer Operation Window>
3-10
IM 11B03G03-03E
l Descriptions
The following table summarizes the descriptions of the display.
Item Available Information
Type Indicates the type of detector. The window shows TCD, FID, FI-CONV (FID with
methane converter), FPD or None.
Input signal Indicates the value obtained by averaging the A-D converted analog signal of the
detector sampled every 20 msec by the value set in the sample rate.
Filtered signal Indicates the value obtained by filtering the input signal by the value set in the filter
constant in the detector signal setting.
Standard deviation Indicates the standard deviation of the output signals of the last 20 analysis.
Voltage Indicates the bridge current of the TCD (TCD only).
Current Indicates the bridge current of the TCD (TCD only).

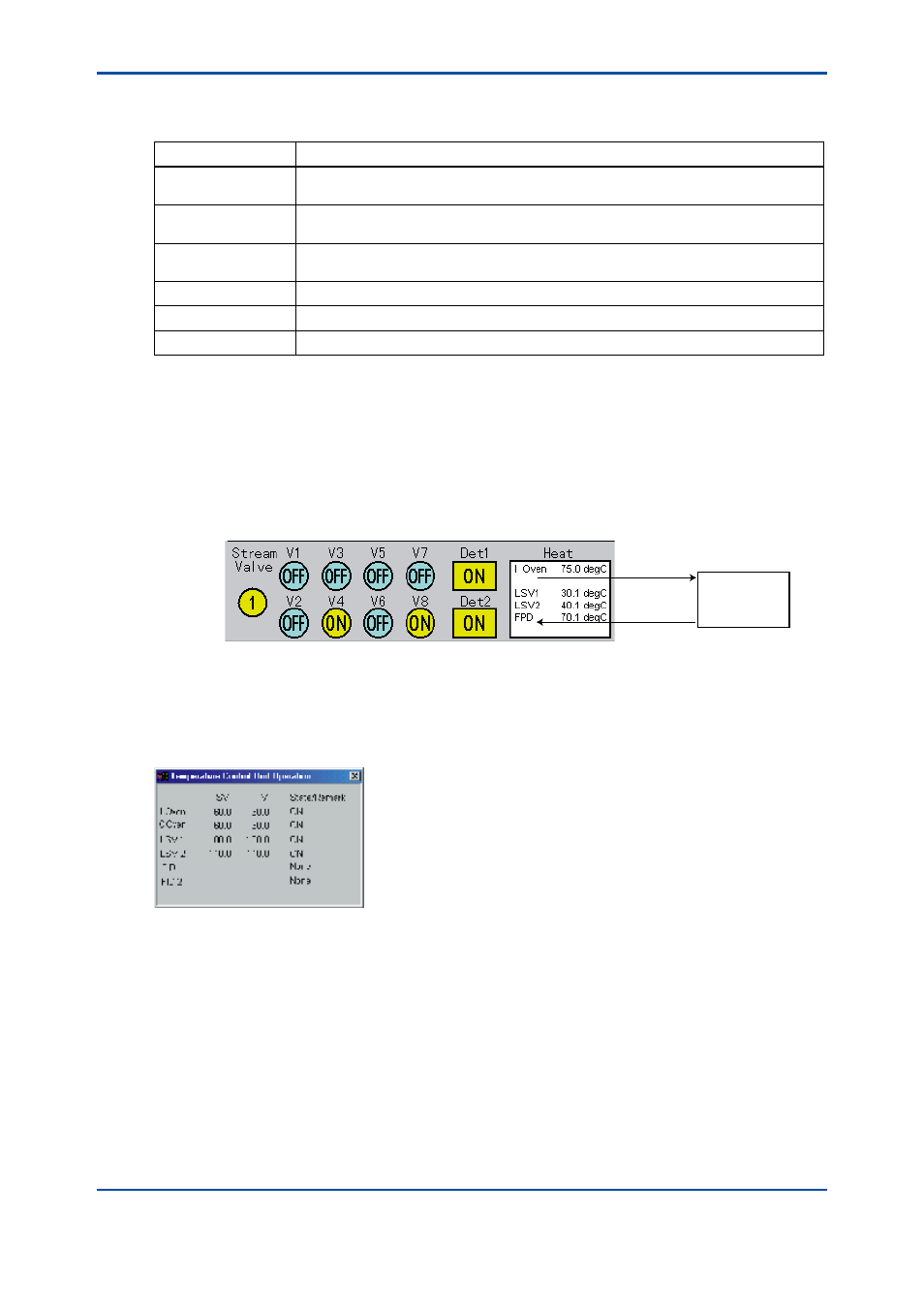

n Detailed Display of Temperature Controller
l Procedure
(1) Place the cursor on the temperature controller symbol in the Valve Display/Control area and
click the left mouse button. The Temperature Control Unit Operation window opens.
F0314.ai
Temperature
status detailed
display window
Click left
mouse button
Valve display and operation area
[Close]
command
(2) To close the Temperature Control Unit Operation window, click on the [Close] command in
the control menu.
l Window Layout (Temperature Control Unit Operation Window)
F0315.ai
