<6. Analysis Results Windows>
6-4
IM 11B03G03-03E
6.2 Types and Layouts of Analysis Results
Windows
The Analysis Results windows consist of the windows for acquiring analysis results (Latest
Analysis Results, Concentration Analysis History, Retention Time History and Laboratory
Analysis Results windows) and the windows for referring to files (File Analysis Results, File
Concentration Analysis History, File Retention Time History and File Laboratory Analysis Results
windows). This section describes the layouts and contents of these windows.
n Latest Analysis Results Window
The Latest Analysis Results window displays the most recent results of analysis for the stream
done by the analyzer in the Process mode. The analysis results are updated each time the
analyzer completes an analysis. To record the current data for future reference, save this window.
To view the data not shown on the initial screen, use the scroll bar.
l Window Layout

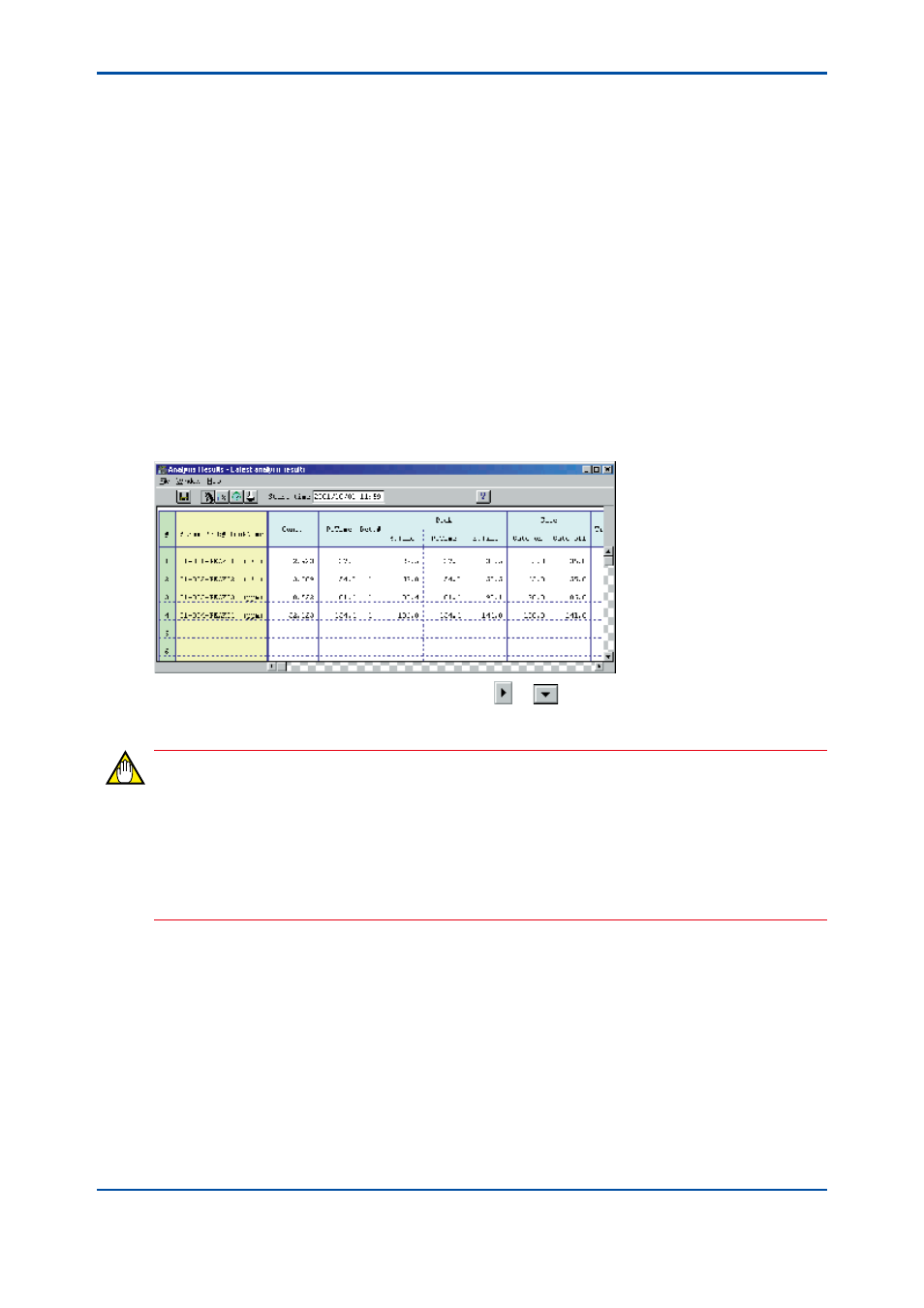

The following figure shows the layout of the Latest Analysis Results window.
F0605.ai
To view the unseen parts of the data, click on the or buttons on the horizontal or vertical
scroll bar to scroll the page.
NOTE
If settings of the Stream Sequence or Peak are changed while the Analysis Results window is
active:
• Click on the [Exit] command in the [File] menu to close the Analysis Results window once.
Next, exit the Maintenance Terminal. And then, restart the Maintenance Terminal, and
reopen the Analysis Results window. Continuous operation without restarting the overall
functions of the Maintenance Terminal may result in incorrect data display.
4th Edition : Mar. 21, 2012-00
