4.2 Window Layout

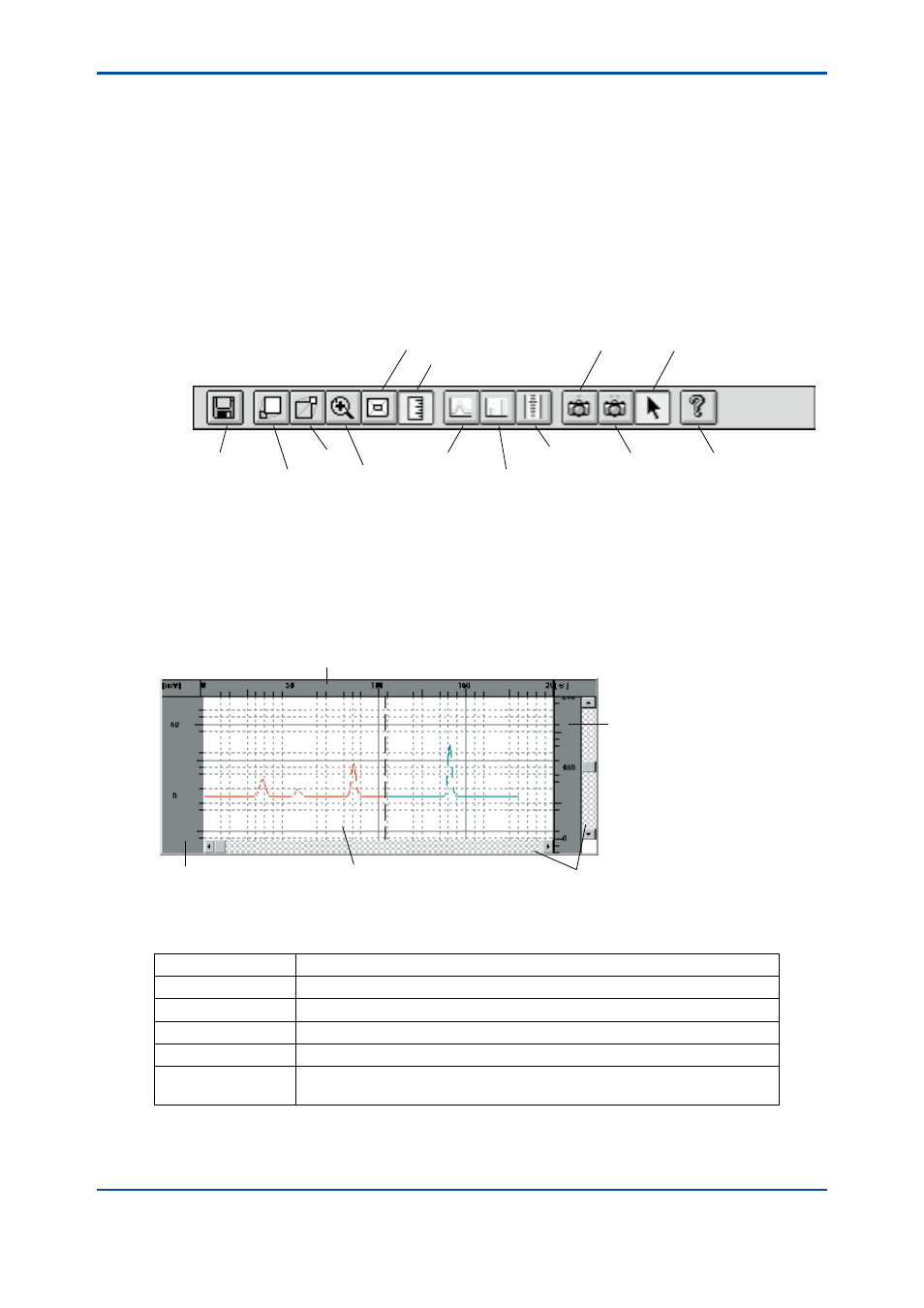

The Chromatogram window displays chromatograms in detail. In addition to the most recent
chromatogram, chromatograms previously saved in a file can also be retrieved and displayed in
the window.
n Toolbar
The most frequently used commands are provided as buttons on the toolbar.
l Toolbar Layout
The toolbar contains the following command buttons.
Save Chromatogram
button Zoom-in
button
Zoom-out
button Part Zoom
button
Auto-scale button
Overall view button
Pen selection
button Timing Mark
button
Temperature
button
Snapshot 1
button
Mouse position button
Snapshot 2
button
Help button
F0403.ai
n Closeup Window
The Closeup window displays chromatogram(s) and temperature(s).
l Window Layout
X-axis scale
Temperature scale
Scroll bars Y-axis scale Grid
F0404.ai
l Display Description
Item Description
X-axis scale Scale for elapsed time [seconds]
Y-axis scale Scale for measured voltage [mV]
Temperature scale Scale for measured temperature [°C]
Scroll bars Scroll the chromatogram screen to view unseen parts of the chromatogram.
Grid Crossed auxiliary lines according with X- and Y-axis scales. Clicking on the
[Grid] command in the [Options] menu enables/disables grid indication.
