<1. Overview of Maintenance Terminal>
1-6
IM 11B03G03-03E
n Multi-windows
The windows of the Maintenance Terminal open in an overlapping manner on top of the Analyzer
Operation window. Thus, you can manipulate the windows properly to view multiple windows at
the same time.
l Window Operation
In a Maintenance Terminal window, the following operations are possible:
Resizing the window: Drag the window boundary. Only the Analysis Results windows and Alarm
windows can be changed in size.
Minimizing a window to an icon: Click on the minimize button ( ). To return to the original size,
double-click on the icon.
l Making the Window Active
The window that is currently operational is called the “active window.” The title bar of the active
window appears dark. When more than one window is open, click anywhere within the window
you want to work with. The window you click becomes an active window. You can then work with
the active window only.

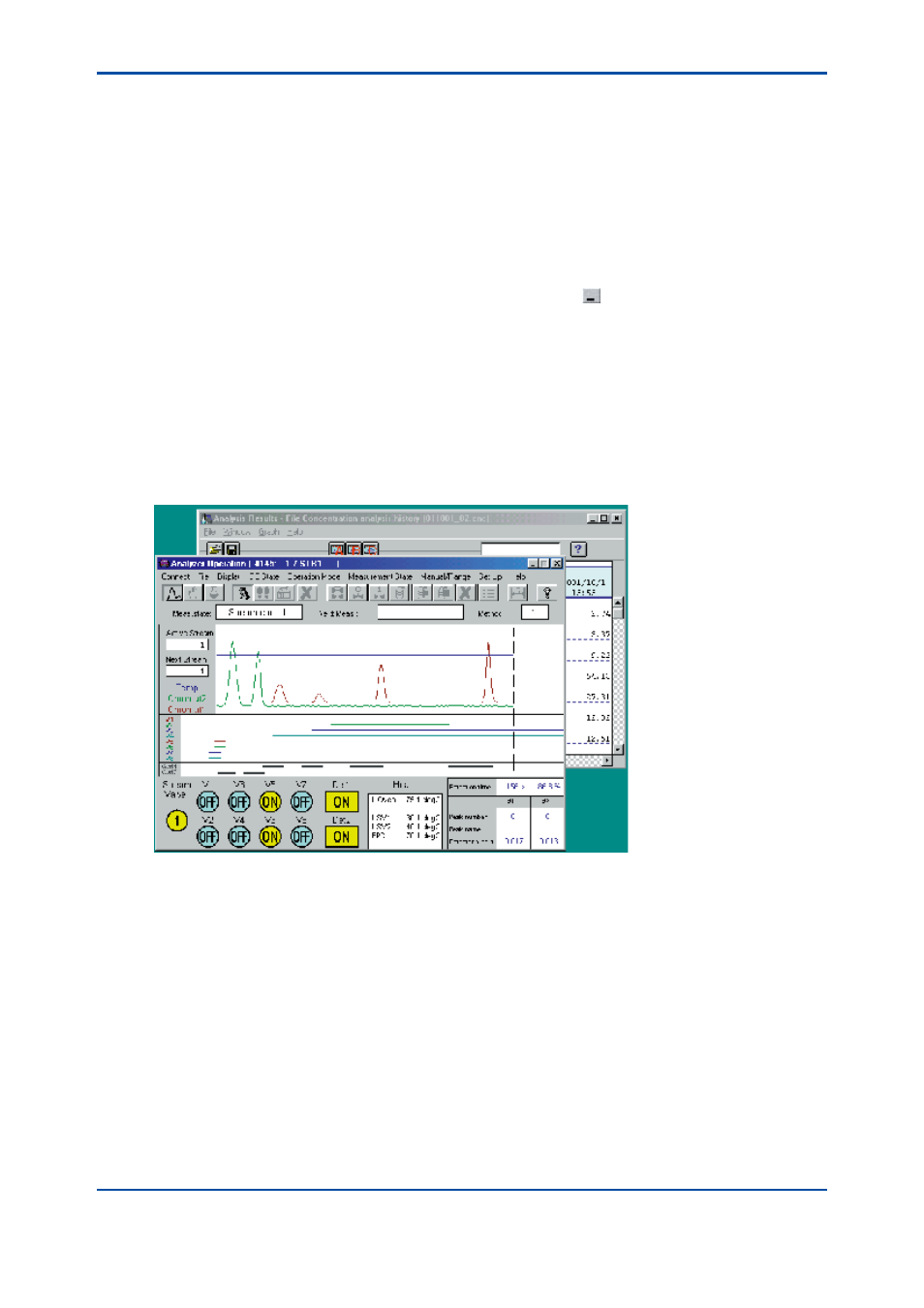

l Example of Multi-windows
F0108.ai
