<3. Analyzer Operation Window>
3-4
IM 11B03G03-03E
n Changing the Communication Speed
To change the communication speed between the analyzer and the Maintenance Terminal,
use the [Com. Speed] command in the [Connect] menu. If the analyzer connected is the GC
Mark II, select either 19200 bps or 38400 bps. If the analyzer connected is previous versions,
the communication speed should be 9600 bps. Note that the communication selected here
should be the same as the one set in the analyzer. When this command is executed, the current
communication is aborted and then the communication is started at the specified speed.
n Exiting
The Analysis Results window must be closed in order to exit the Analyzer Operation window.
Even if the Analysis Results window appears as an icon, it is recommended that you open the
window once, save the information or take a relevant action, and then close the window.
l Procedure
(1) Close all the windows except the Analyzer Operation window.
(2) Click on the [Exit] command in the [Connect] menu while the Analyzer Operation window is
open.

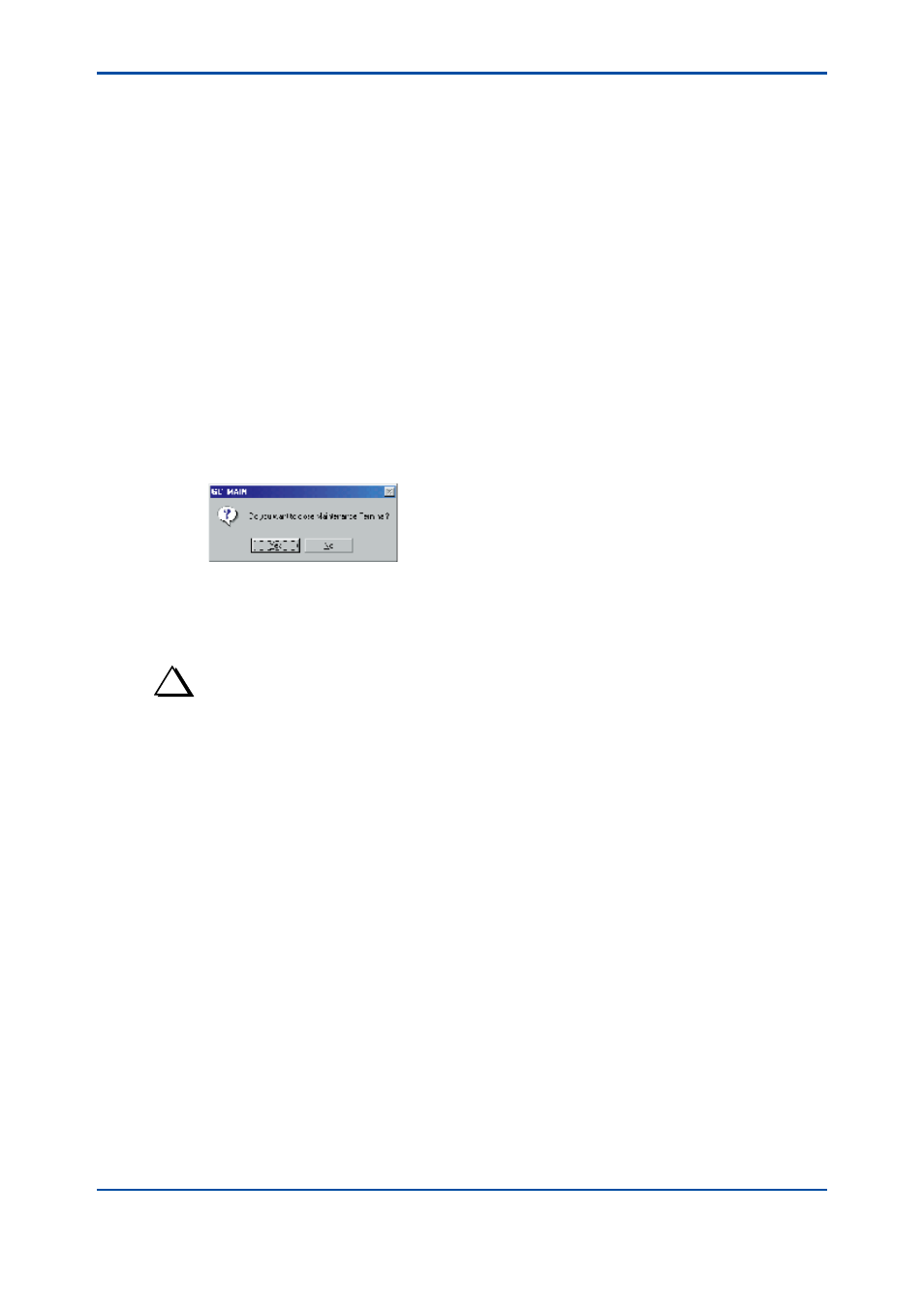

A dialog box pops up asking you to confirm termination of the Maintenance Terminal.
F0305.ai
(3) Click on the [Yes] button.
The communication link with the analyzer is dropped and the Maintenance Terminal
terminates.
(4) Quit Windows™ and turn off the power.
TIP
How to Use the [Disconnect] Command
• If you want to drop the communication link with the analyzer without exiting the Maintenance Terminal, use
the [Disconnect] command in the [Connect] menu.
• This is useful, for example, when using other software. In that case, however, measured values from the
analyzer are not transmitted.
4th Edition : Mar. 21, 2012-00
