<3. Analyzer Operation Window>
3-9
IM 11B03G03-03E
3.3 Viewing the States of the Detector and
Temperature Controller
To view the states of the detector signal and the temperature controller, click the right mouse
button on the detector symbol and click the left mouse button on the Heat symbol, respectively, in
the Valve Display/Control area. These displays are updated in threesecond cycle.
See Also
For details on the operations used to make changes in the Valve Display/Control area, see Section 3.6.
n Detailed Display of Detector Signals
l Procedure
If two detectors are used, you can choose either detector in the Valve Display/Control area.

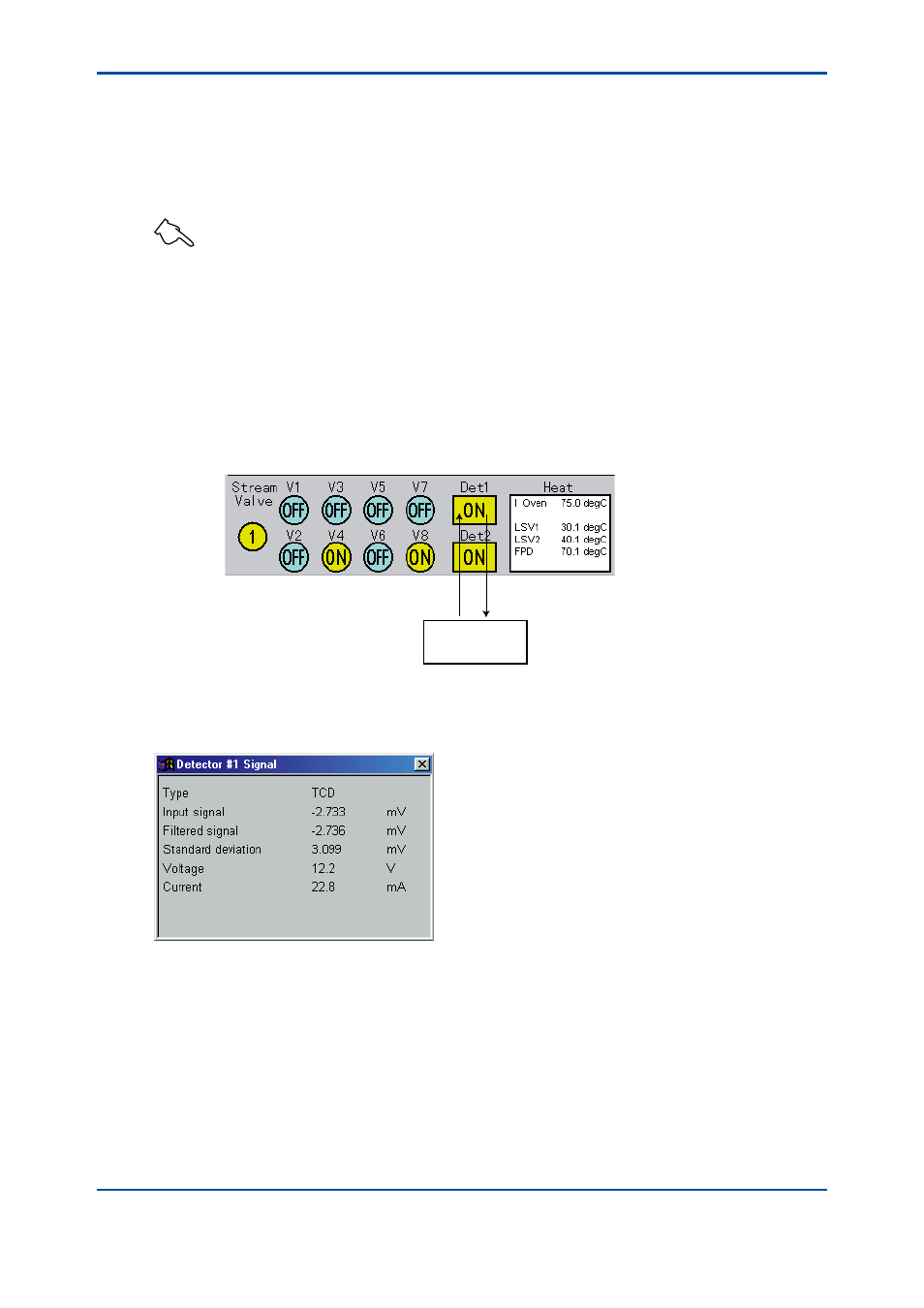

(1) Place the cursor on the detector symbol in the Valve Display/Control area and click the right
mouse button. The Detector Signal window opens.
F0312.ai
Detector detailed
display window
Click the right mouse button
Valve display and operation area
[Close] command
(2) To close the Detector Signal window, click on the [Close] command in the control menu.
l Window Layout (Detector Signal Window)
F0313.ai
