Removing the Mounted Controller from Its Case

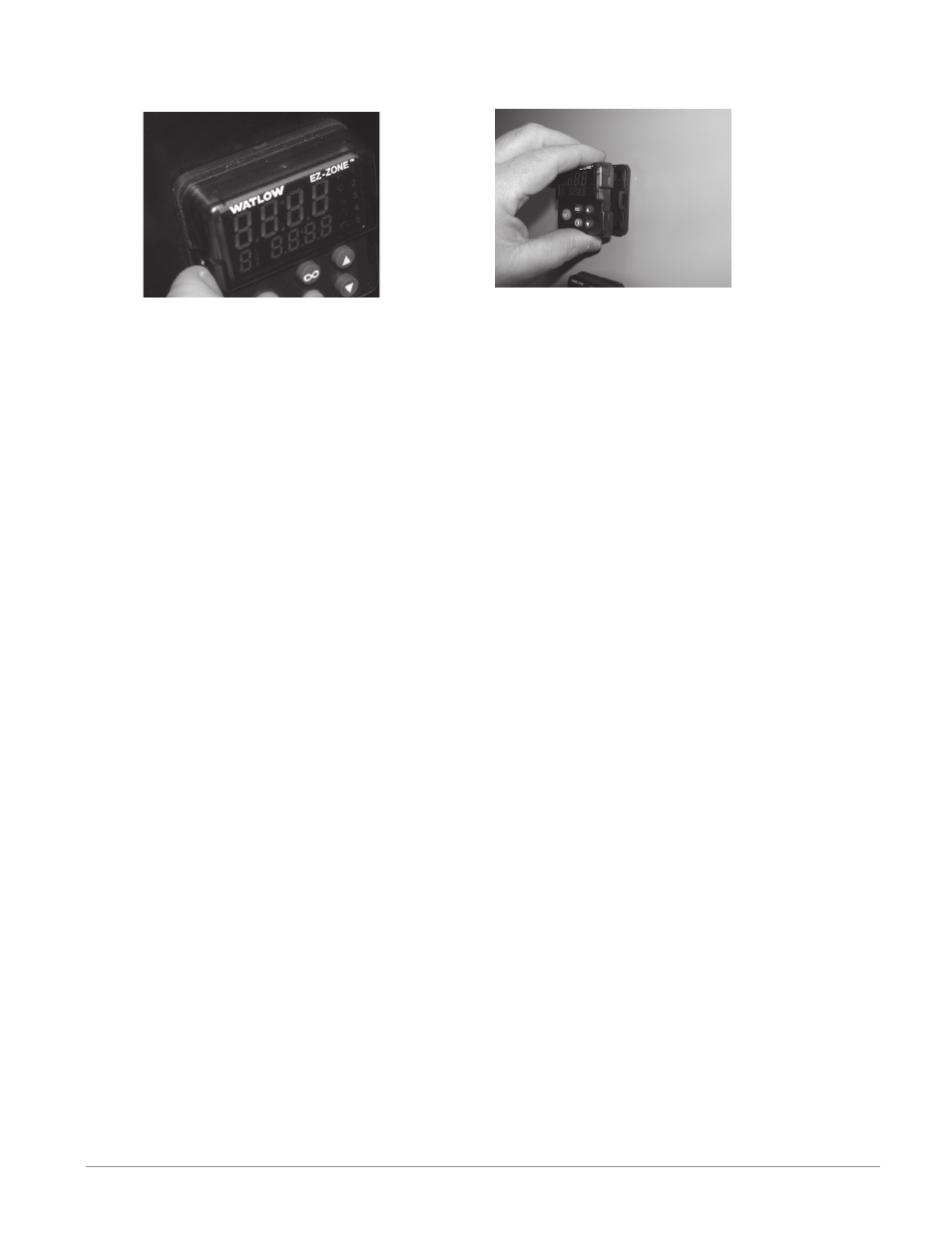

1. From the controller's face, pull out the tabs on each side until you hear it click.
Pull out the tab on each side until you hear it click .
Grab the unit above and below the face and pull
forward .
2. Grab the unit above and below the face with two hands and pull the unit out. On the PM4/8/9 controls
slide a screwdriver under the pry tabs and turn.
Returning the Controller to its Case
1. Ensure that the orientation of the controller is correct and slide it back into the housing.
Note:
The controller is keyed so if it feels that it will not slide back in do not force it. Check the orientation again
and reinsert after correcting.
2. Using your thumbs push on either side of the controller until both latches click.
Chemical Compatibility
This product is compatible with acids, weak alkalis, alcohols, gamma radiation and ultraviolet radiation.
This product is not compatible with strong alkalis, organic solvents, fuels, aromatic hydrocarbons, chlorinated
hydrocarbons, esters and keytones.
